Route the condensate drainpipes from the bottom
1. Secure the drainpipe at the position shown in Figure 3-17 and route the drainpipe out the
cabinet from the bottom condensate water pipe outlet.
2. Connect the condensate water pipe to the condensate drainpipe port in the equipment
room.

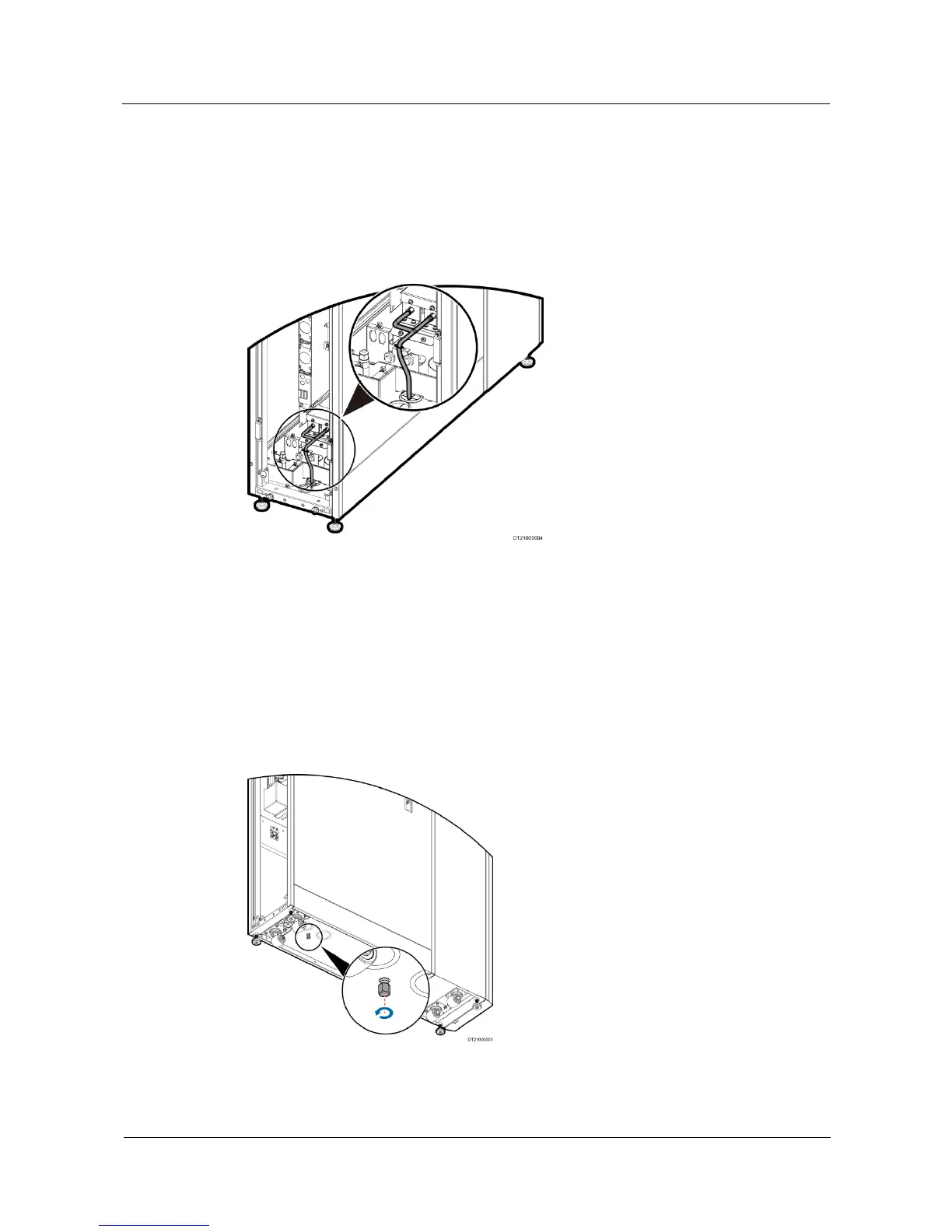

Figure 3-17 Securing condensate drainpipes
Connecting the Condensate Self-Drainpipe
Prerequisites
If self-drainage ports exist onsite, connect the self-drainage port to the condensate
self-drainpipe.
Step 1 Loosen the bolt plug and remove the waterproof washer, as shown in Figure 3-18.
Figure 3-18 Connecting the condensate self-drainpipe
----End
