Step 3 Use the wrench to adjust the feet by using a measuring tape and level, keep the feet touch the
ground after leveling.
Make sure the parallel mounting holes in the NetCol5000–C are aligned with those in the server
cabinets.
Step 4 Removing the four M10 bolts on the upper support.
Step 5 Align the tapped hole, and secure the NetCol5000-C onto the support by using bolts that
removed on Step 4, as shown in Figure 3-14.

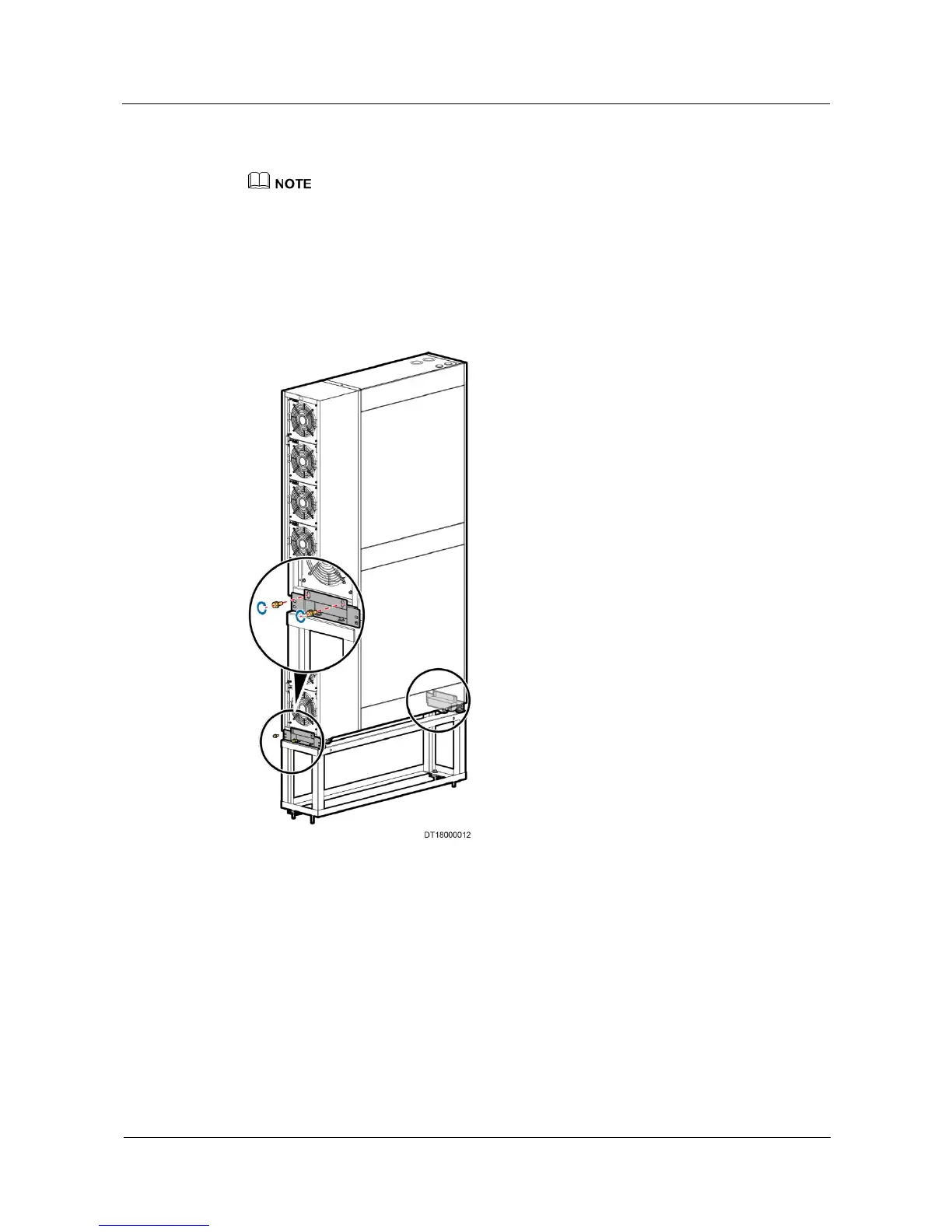

Figure 3-14 Securing the NetCol5000-C onto a support
----End
