4 NE40E-X3 Chassis Overview
Issue 01 (2012-09-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
94
Item
Technical Parameter
Output current
42 A
Rated current of the air-break
42 A
4.2.4 AC Power Supply System
This section describes the appearance, functions, and technical specifications of the AC power
supply module.

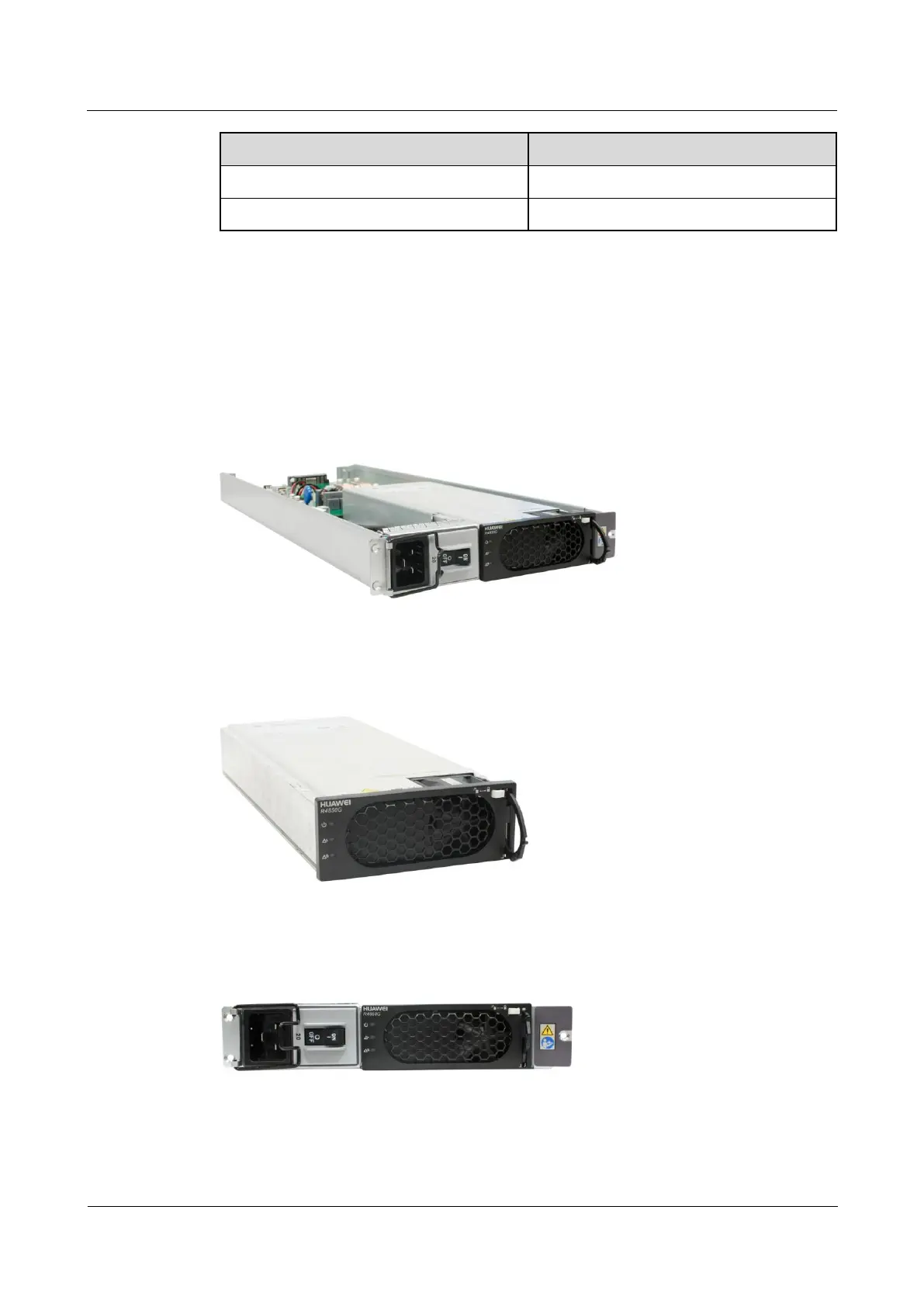

The AC power distribution box of the NE40E-X3 is 1 U high. The Figure 4-8 shows the
appearance of the AC power distribution box of the NE40E-X3.
Figure 4-8 Appearance of the AC power distribution box
Figure 4-9 shows the appearance of the AC power module of the NE40E-X3.
Figure 4-9 Appearance of the AC power module of the NE40E-X3
Figure 4-10 shows the appearance of the AC power distribution box panel of the NE40E-X3.
Figure 4-10 Appearance of the AC power distribution box panel of the NE40E-X3
Figure 4-9 shows the appearance of the AC power module panel of the NE40E-X3.
