Huawei NetEngine40E Hardware Description

HUAWEI NetEngine40E Universal ServiceRouter
Hardware Description
6 Boards
Issue 01 (2012-09-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
535
6.22.11 4-Port 10GBase WAN/LAN-XFP Flexible Card(Occupy two
sub-slots)
Overview

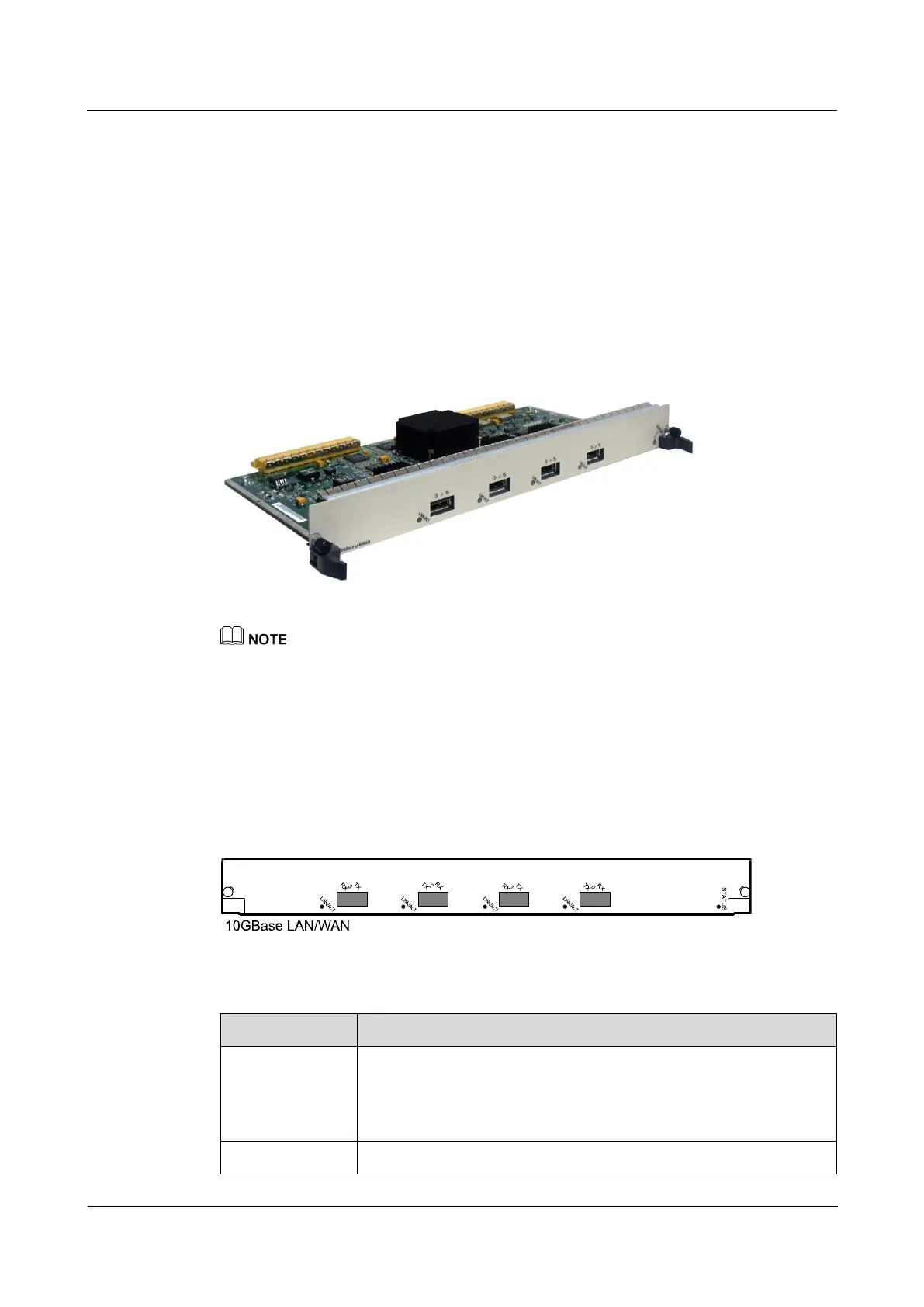

Figure 6-196 shows appearance of the 4-Port 10GBase WAN/LAN-XFP Flexible
Card(Occupy two sub-slots). The 4-Port 10GBase WAN/LAN-XFP Flexible Card supports
two working modes: LAN and WAN,and occupies two flexible card slot.
Figure 6-196 Appearance of the 4-Port 10GBase WAN/LAN-XFP Flexible Card
The 4-port 10GBase WAN/LAN-XFP FPIC supports the oversubscription mode. The left-most two ports
can be converged to 20 Gbit/s in average. The right-most two ports can be converged to 20 Gbit/s in
average.
Panel
Figure 6-197 shows the panel appearance of the 4-Port 10GBase WAN/LAN-XFP Flexible
Card. Table 6-560 describes the indicators on the panel.
Figure 6-197 Panel appearance of the the 4-Port 10GBase WAN/LAN-XFP Flexible Card
Table 6-560 Indicators on the panel of the 4-Port 10GBase WAN/LAN-XFP Flexible Card
Indicator
Description
STATUS
indicator (green)
If the indicator blinks once every 2s (0.5 Hz), the LPU is in the normal
state.
If the indicator blinks twice every 1s (2 Hz), the LPU is in the alarm
state.
LINK/ACT
If the indicator is on, the link is Up.
