6.11.2 1-Port 100GBase-CFP Line Processing Unit S(LPUS-101)
Overview
The 1-Port 100GBase-CFP Line Processing Unit S supports packet forwarding at the line
speed of 100-Gbit/s on a single interface, and provides low-cost and customized solutions for
users. HQoS is not supported on this board.

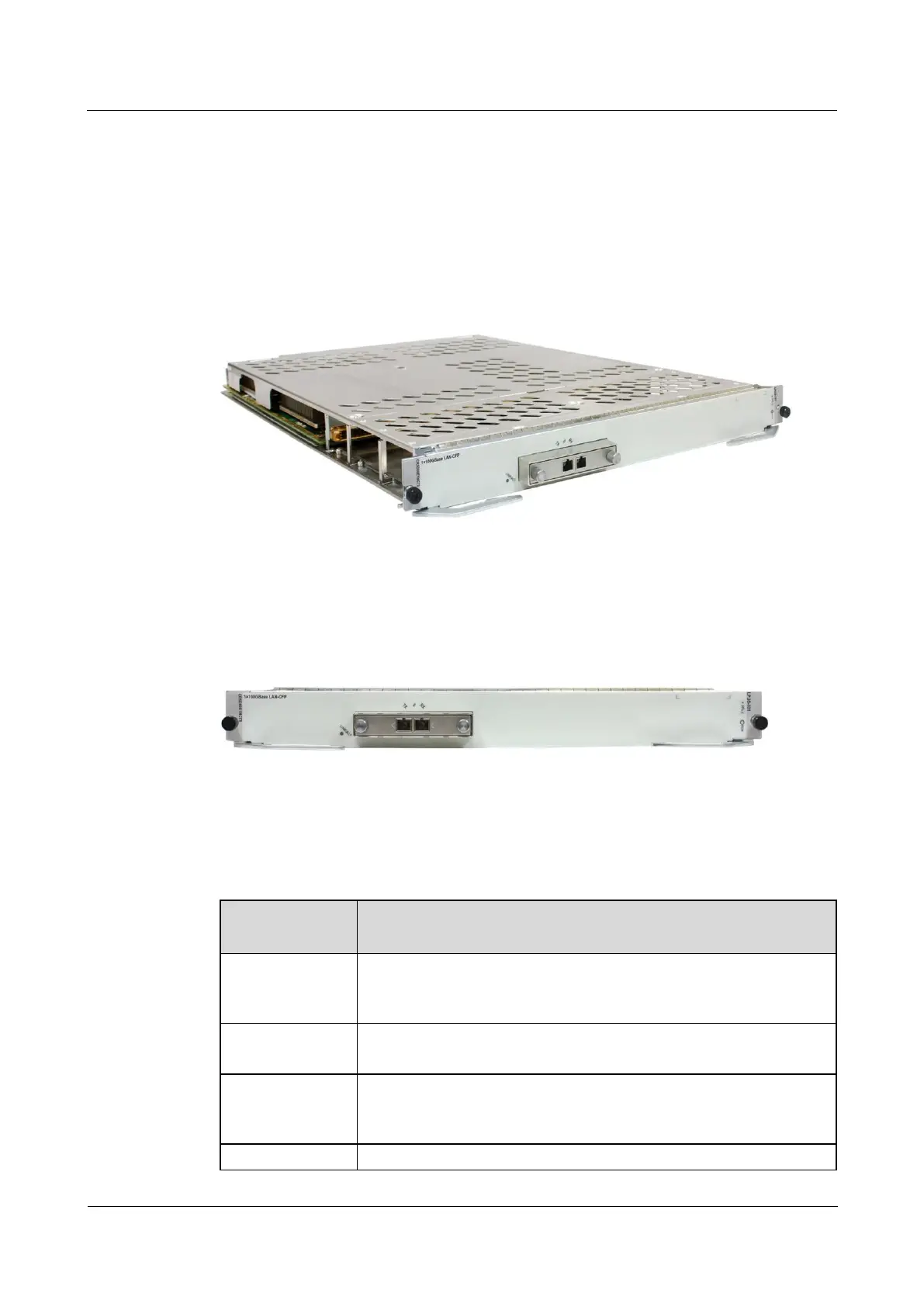

Figure 6-54 Appearance of the 1-Port 100GBase-CFP Line Processing Unit S
Panel
Figure 6-55 shows the panel of the 1-Port 100GBase-CFP Line Processing Unit S.
Figure 6-55 1-Port 100GBase-CFP Line Processing Unit S panel
Table 6-139 describes the buttons and indicators on the 1-Port 100GBase-CFP Line
Processing Unit S panel.
Table 6-139 Description of the buttons and indicators on the 1-Port 100GBase-CFP Line
Processing Unit S panel
It is an OFL button. Before removing a board, press the OFL button.
Hold the button for six seconds till the OFL indicator is on. Then, the
board can be pulled out.
If the indicator is steady on, it indicates that you can remove the
board.
If the indicator blinks once every 2s (0.5 Hz), it indicates that the
system is running normally. Otherwise, it indicates that the board fails
to run normally.
If the indicator is steady on, it indicates that the link is normal. If the
