E.2 Power Distribution Instance

This document describes the examples for installing NE40E-X series products.

The number of each PEM module can be determined based on a product silkscreen and the primary
and secondary power supply diagram.
To ensure power supply backup, connect PEM-As to the OUTPUT A area in the power
distribution box, and connect PEM-Bs to the OUTPUT B area in the power distribution box.

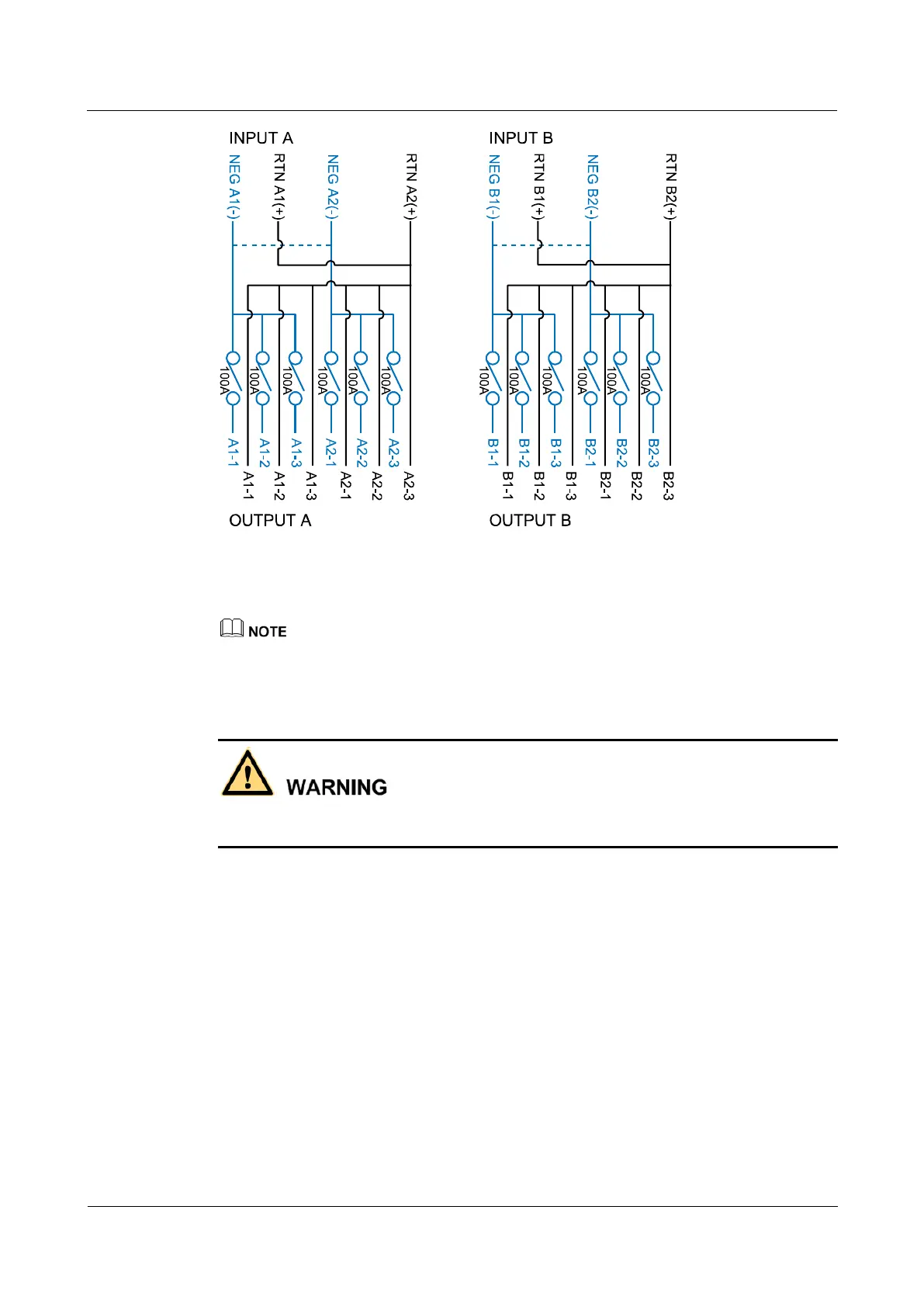

Mapping between input lines and output lines in the power distribution box
Figure E-4 Mapping between input lines and output lines in the power distribution box
