HUAWEI NetEngine40E Universal ServiceRouter
Hardware Description
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
6.19.2 4-Port 10GBase LAN/WAN-XFP Line Processing Unit
S(LPUS-41)
The right-most two ports are numbered in the format of "slot number/0/port number" and the left-most
two ports are numbered in the format of "slot number/1/port number".
Overview

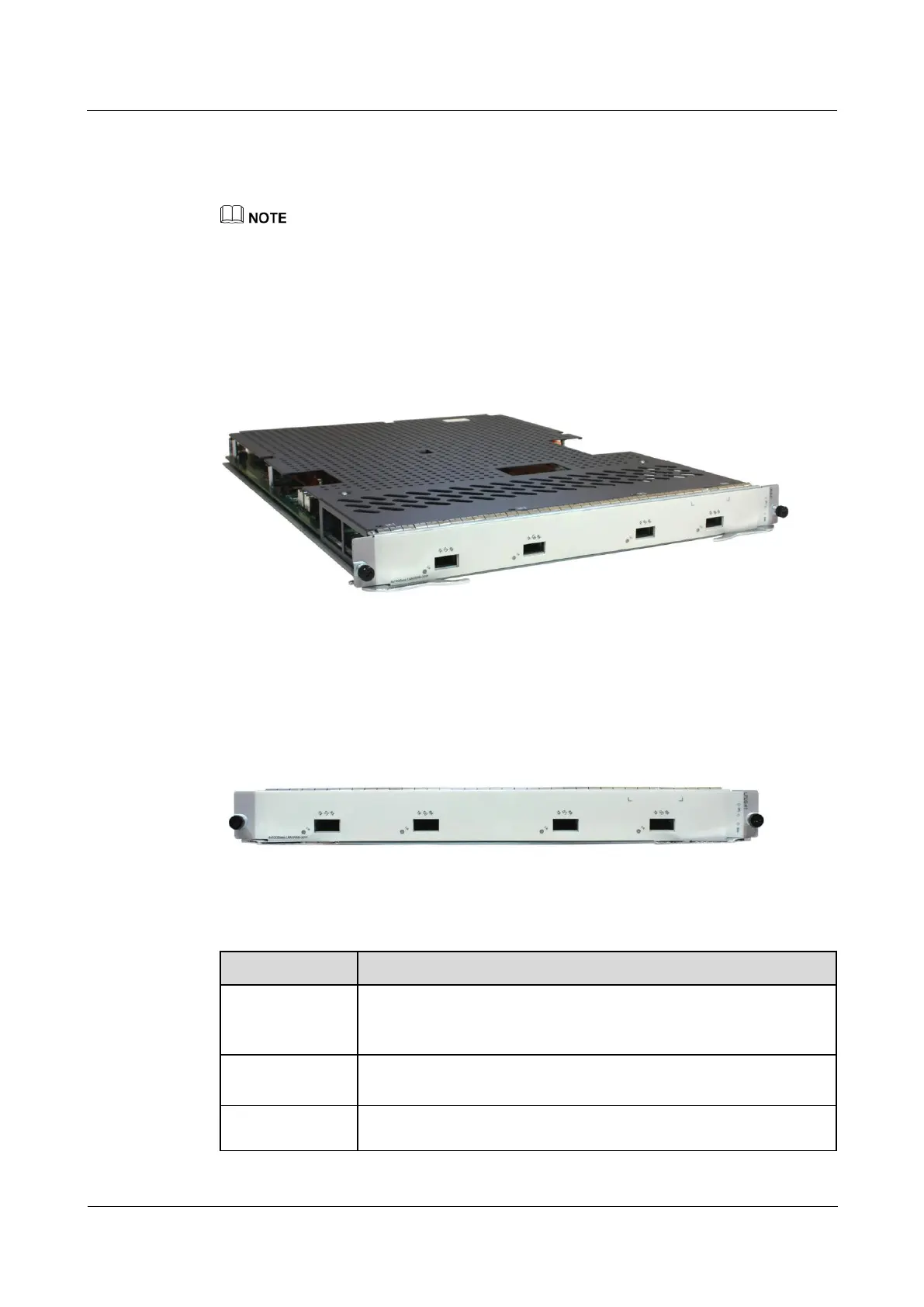

Figure 6-161 shows the appearance of the 4-port 10GBase LAN/WAN-XFP Line Processing
Unit S. 1588v2 and HQoS are not supported on this board.
Figure 6-161 Appearance of the 4-port 10GBase LAN/WAN-XFP Line Processing Unit S
Panel
Figure 6-162shows the panel appearance of the 4-port 10GBase LAN/WAN-XFP Line
Processing Unit S. Table 6-450 describes the indicators on the panel.
Figure 6-162 Panel appearance of the 4-port 10GBase LAN/WAN-XFP Line Processing Unit S
Table 6-450 Indicators on the panel of the 4-port 10GBase LAN/WAN-XFP Line Processing Unit
S
It is an OFL button. Before removing a board, press the OFL button.
Hold the button for five seconds till the OFL indicator is on. Then, the
board can be pulled out.
If the indicator is steady on, it indicates that you can remove the
board.
If the indicator blinks once every 2s (0.5 Hz), it indicates that the
system is running normally. If the indicator blinks twice every 1s (2
