HUAWEI NetEngine40E Universal ServiceRouter
Hardware Description
3 NE40E-X8 Chassis Overview
Issue 01 (2012-09-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
59

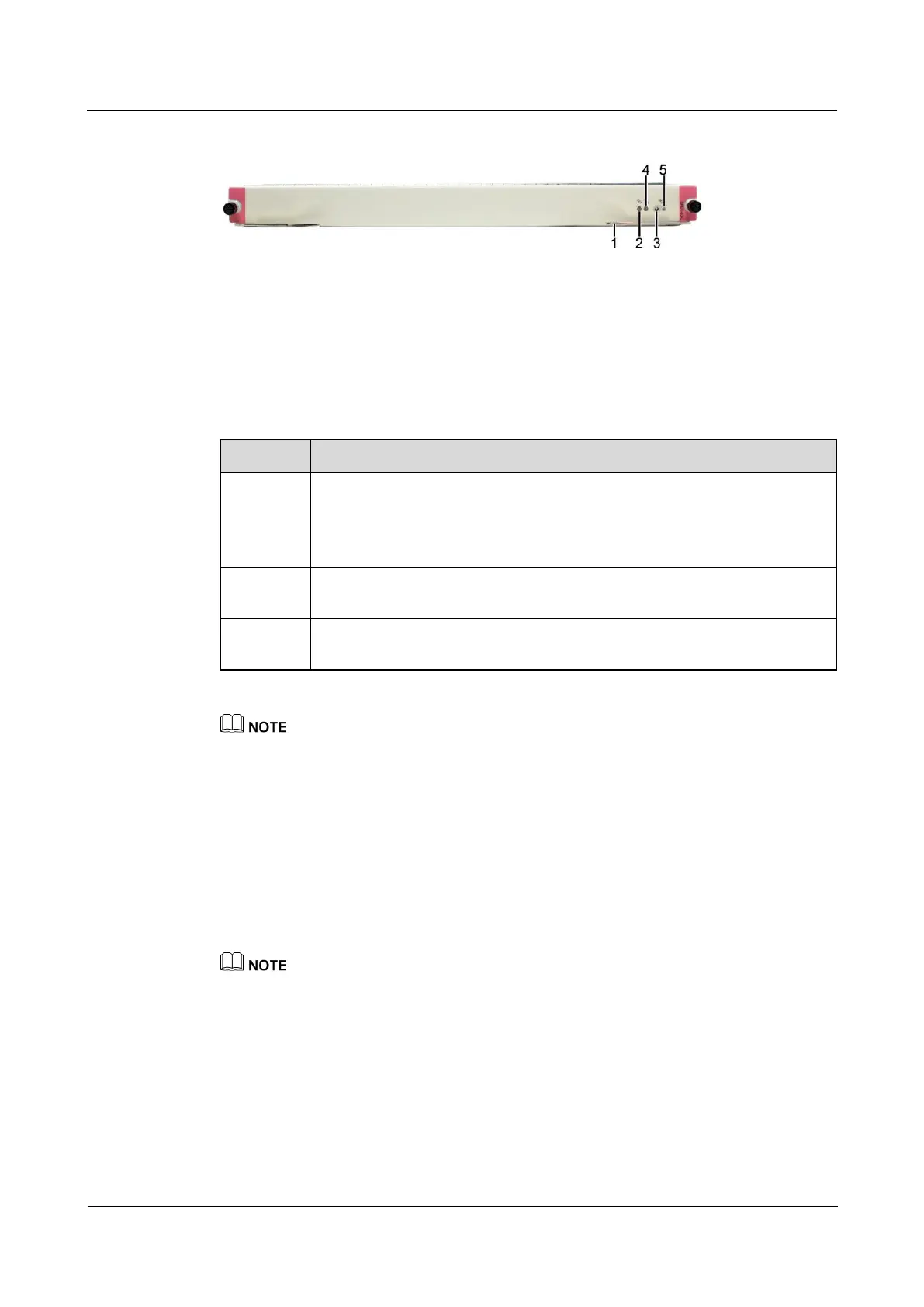

Figure 3-20 Appearance of the panel
1. Ejector lever
2. ACT indicator
3. OFL button
4. RUN indicator
5. OFL indicator
Table 3-10 describes the buttons and indicators on the panel of the SFU.
Table 3-10 Buttons and indicators on the panel of the SFU
LED
Description
RUN
Before the registration of the SFU: If the green indicator blinks twice each
second (2 Hz), the system is in the alarm state.
After the registration of the SFU: If the green indicator blinks once every two
seconds (0.5 Hz), the system is running normally.
ACT
If the green indicator is on, it indicates that the SFU is working normally; if
the green indicator is off, it indicates that the SFU is faulty.
OFFLINE
When the SFU is working normally, the OFL indicator is off. After the OFL
button is pressed to power off the SFU, the OFL indicator is on.
The CR5DSFUI407C can be used only on the NE40E-X8.
The 40G switch fabric unit cannot be used together with 200G switch fabric unit for long-term
working, and can be used together only for short-term operation during upgrade.
The 40G switch fabric unit can be used only together with the 40G Switch and Route Processing Unit
A4.
3.5 Control Plane
This chapter describes the control plane of the NE40E-X8.
The 200G switch and route processing unit cannot be used together with 40G switch and route
processing unit for long-term working.
3.5.1 Introduction to the Control Plane
This section describes the functions of the control plane.
The control plane of the NE40E is separated from the data plane and the monitoring plane.
The SRU is used by the NE40E-X8.
The SRU integrates an SFU used for data switching.
