HUAWEI NetEngine40E Universal ServiceRouter
Hardware Description
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
6.12.1 24-Port 100/1000Base-X-SFP Flexible Card A(P51-A)
Overview

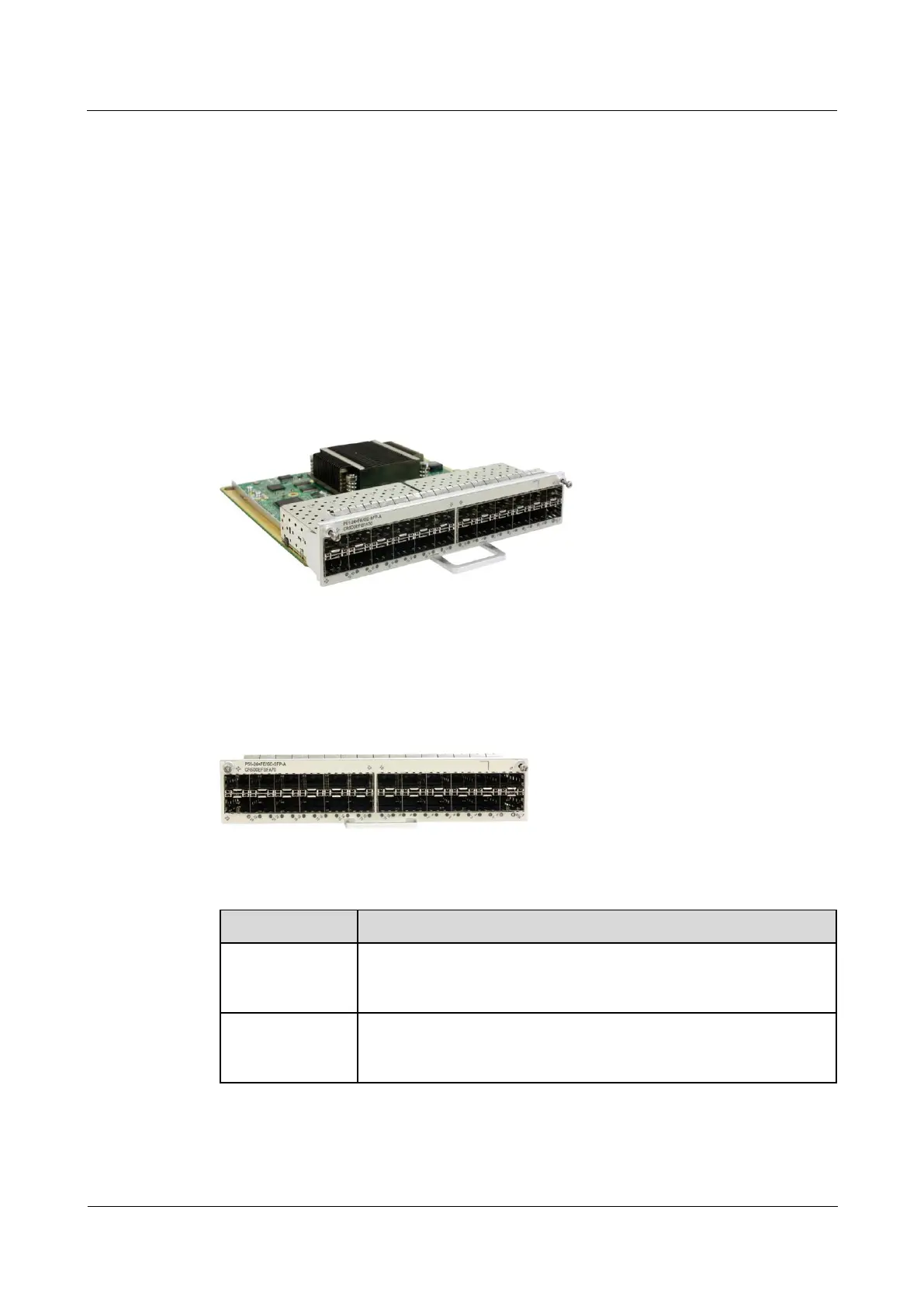

Figure 6-60 shows the appearance of the 24-Port 100/1000Base-X-SFP Flexible Card
A(P51-A).The 24-Port 100/1000Base-X-SFP Flexible Card A occupies one 1/2-width flexible
card slot and supporting 1588v2.
GE optical module, providing features of GE optical interfaces
FE optical module, providing features of FE optical interfaces
Electrical interface SFP module, providing features of the 1000M electrical interfaces
Intermixing of the preceding modules
Figure 6-60 Appearance of the 24-Port 100/1000Base-X-SFP Flexible Card A
Panel
Table 6-153 lists the indicators on the panel.
Figure 6-61 Appearance of the 24-Port 100/1000Base-X-SFP Flexible Card A
Table 6-152 Indicators on the panel of the 24-Port 100/1000Base-X-SFP Flexible Card A
If the indicator blinks once every 2s (0.5 Hz), it indicates that the
system is running normally. If the indicator blinks twice every 1s (2
Hz), it indicates that the system is in the alarm state.
LINK/ACT
indicator (green)
If the indicator is steady on, it indicates that the link is normal. If the
indicator blinks, it indicates that data is being transmitted. If the
indicator is off, it indicates that the link is Down.
To Next Page
