6.7 Integrated Line Processing Unit(LPUI-100)
This chapter describes the structure and specifications of the Integrated Line Processing
Unit(LPUI-100).
6.7.1 10-Port 10GBase LAN/WAN-XFP Integrated Line Processing
Unit (LPUI-100,Supporting 1588v2)
The right-most five ports are numbered in the format of "slot number/0/port number" and the left-most
five ports are numbered in the format of "slot number/2/port number".
Overview
Figure 6-23 shows the appearance of the 10-Port 10GBase LAN/WAN-XFP Integrated Line
Processing Unit.

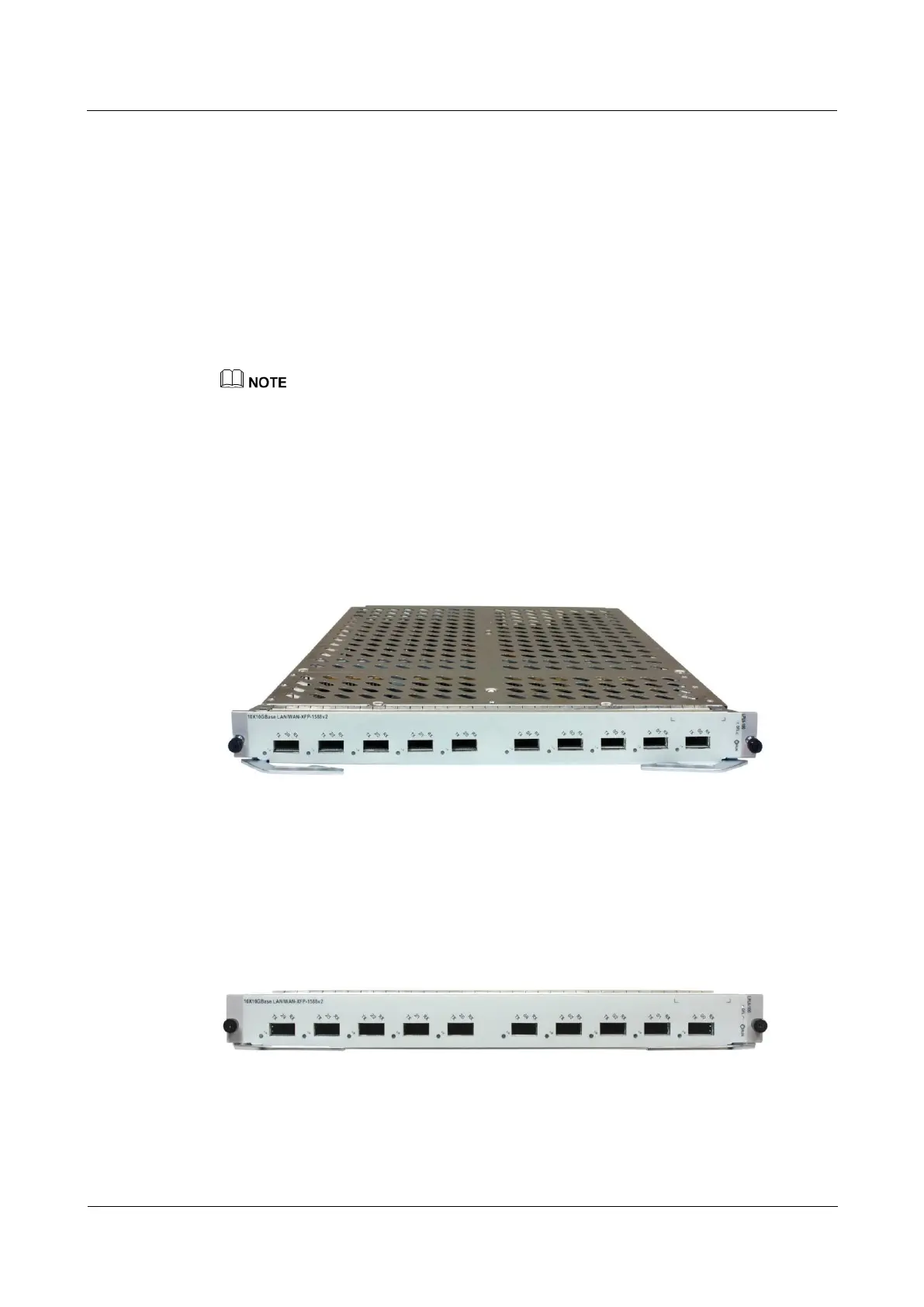

Figure 6-23 Appearance of the 10-Port 10GBase LAN/WAN-XFP Integrated Line Processing
Unit
Panel
Figure 6-24shows the panel appearance of the 10-Port 10GBase LAN/WAN-XFP Integrated
Line Processing Unit. Table 6-60 describes the indicators on the panel.
Figure 6-24 Panel appearance of the 10-Port 10GBase LAN/WAN-XFP Integrated Line
Processing Unit
