6.23.10 4-Port OC-3c/STM-1c ATM-SFP Flexible Card
Overview

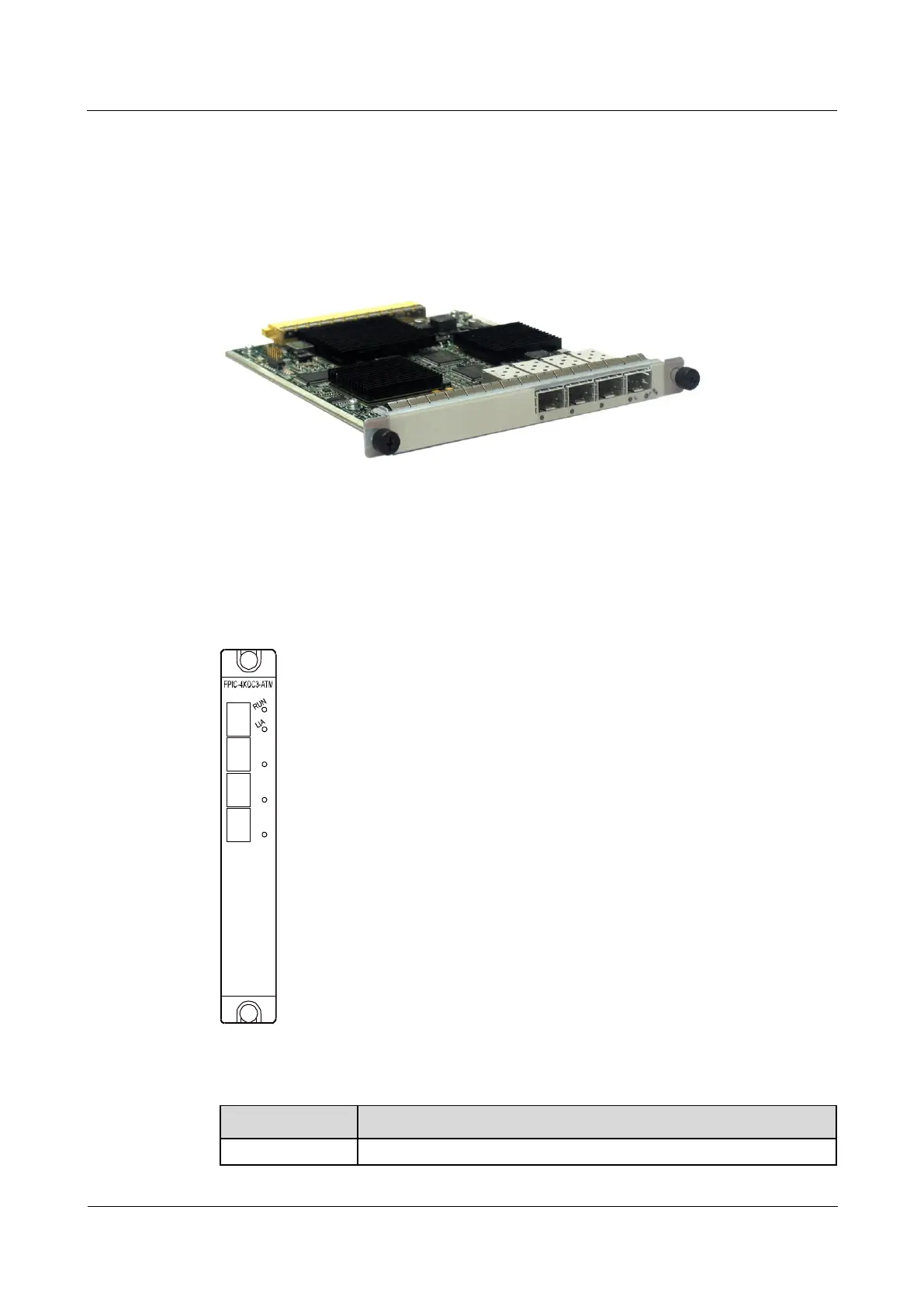

Figure 6-224 shows the appearance of the 4-port OC-3c/STM-1c ATM-SFP FPIC.
Figure 6-224 Appearance of the 4-port OC-3c/STM-1c ATM-SFP FPIC
Panel
Figure 6-225 shows the panel appearance of the 4-port OC-3c/STM-1c ATM-SFP FPIC. Table
6-633 describes the indicators on the panel.
Figure 6-225 Panel appearance of the 4-port OC-3c/STM-1c ATM-SFP FPIC
Table 6-633 Indicators on the panel of the 4-port OC-3c/STM-1c ATM-SFP FPIC
Indicator
Description
STATUS
If the indicator blinks once every 2s (0.5 Hz), the FPIC is in the
