Item
Specifications
Long-term relative humidity: 5% to 85%
Short-term relative humidity: 0% to 95%
Storage conditions
Storage temperature: -40°C to +70°C ( -40°F to 158°F )
Storage humidity: 0% to 95%
6.19.3 48-Port 100/1000Base-X-SFP Line Processing Unit
S(LPUS-41)
The right-most twenty-four ports are numbered in the format of "slot number/0/port number" and the
left-most twenty-four ports are numbered in the format of "slot number/1/port number".
Overview
Figure 6-163 shows 48-port 100/1000Base-X SFP Line Processing Unit S. 1588v2 and HQoS
are not supported on this board.

GE optical module, providing features of GE optical interfaces.

FE optical module, providing features of FE optical interfaces.

Electrical interface SFP module, providing features of the 1000M electrical interfaces.

Intermixing of the preceding modules.

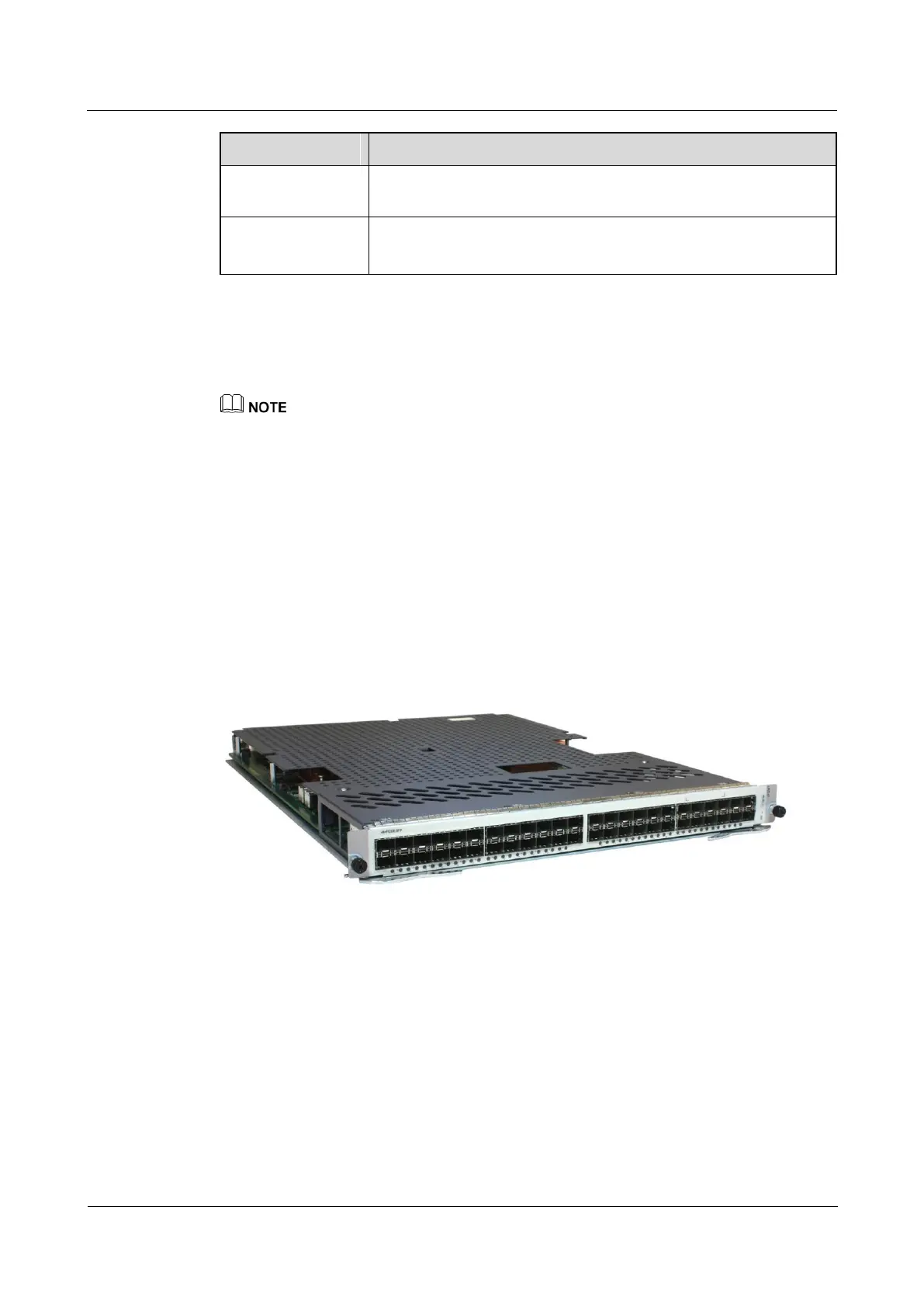

Figure 6-163 Appearance of the 48-port 100/1000Base-X SFP Line Processing Unit S
Panel
Figure 6-164shows the panel appearance of the 48-port 100/1000Base-X SFP Line Processing
Unit S. Table 6-456 describes the indicators on the panel.
