2 NE40E-X16 Chassis Overview
Issue 01 (2012-09-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
8
In the case of a DC power supply system, eight 70 A Power Entry Modules (PEMs) are
inserted at the rear of the chassis, working in 4+4 backup mode.
In the case of an AC power supply system, two AC power frames are placed outside the
chassis and installed with rectifier modules based on system power. The AC power frames are
then connected to the input terminals on the DC-PEMs to supply power for the system. (In
short, external AC power frames are added to the DC power supply system to constitute an
AC power supply system.)
2.2.2 Distributed Architecture of the System
This section describes partitioned power supply on the NE40E-X16.
As shown in Figure 2-5, the NE40E-X16 backplane is divided into four areas, with each area
having two power inputs. These eight power inputs work in backup mode.

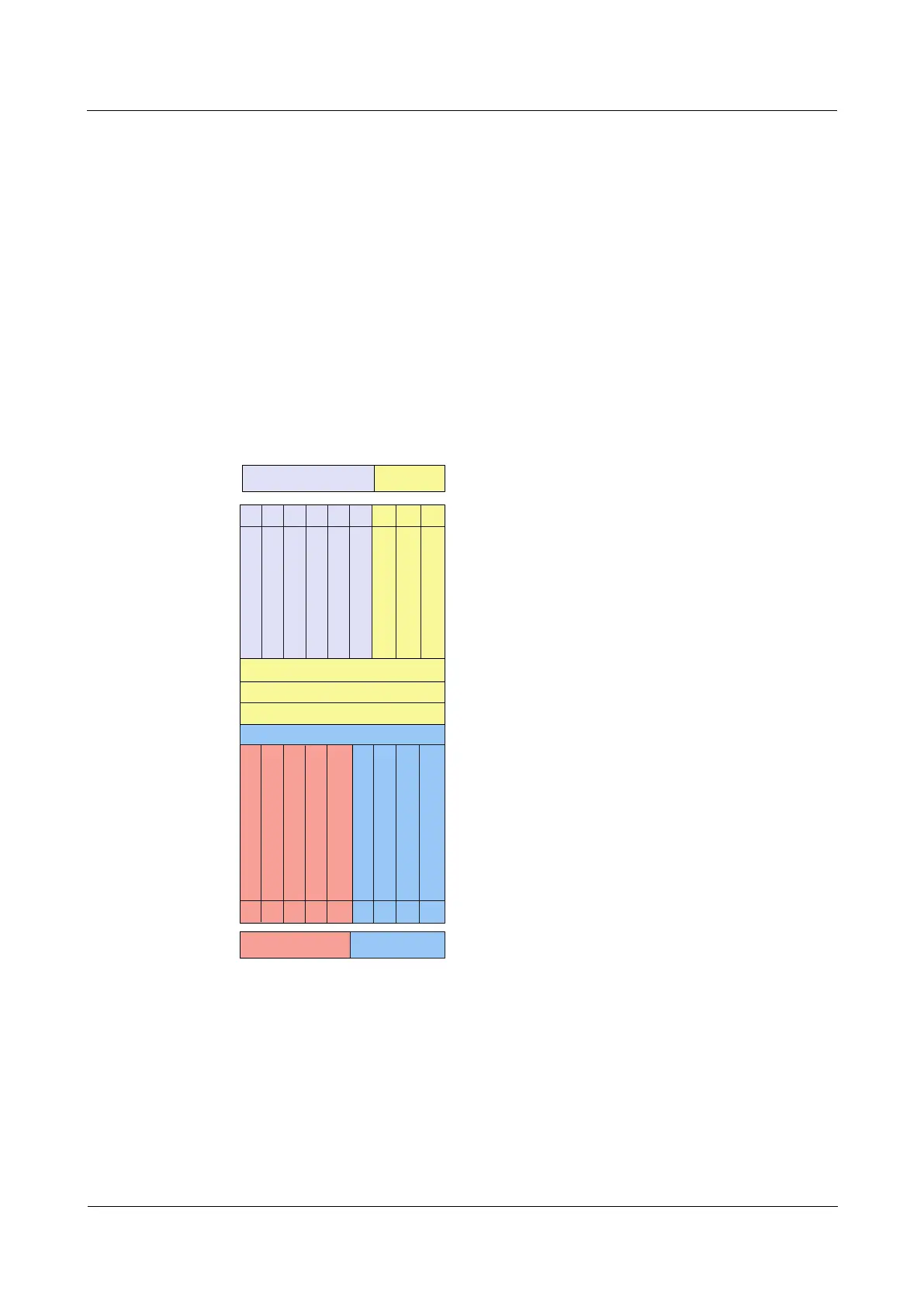

Figure 2-5 Schematic diagram of the power supply for the NE40E-X16
1
2 3 4 5 6 7
129 10 11 13 14 15 16
19
20
21
22
L
P
U
L
P
U
L
P
U
L
P
U
L
P
U
L
P
U
L
P
U
L
P
U
L
P
U
L
P
U
L
P
U
L
P
U
L
P
U
L
P
U
L
P
U
L
P
U
M
P
U
M
P
U
SFU
SFU
SFU
SFU
17 18
FAN FAN
8
FAN FAN
2.2.3 DC Power Supply System
This section describes the appearance, functions, and technical parameters of the DC power
supply module.
Figure 2-6 appearance of the PEM on theNE40E-X16.
