6.10.3 10-Port 10GBase LAN/WAN-SFP+ Integrated Line
Processing Unit (LPUI-101)
Overview

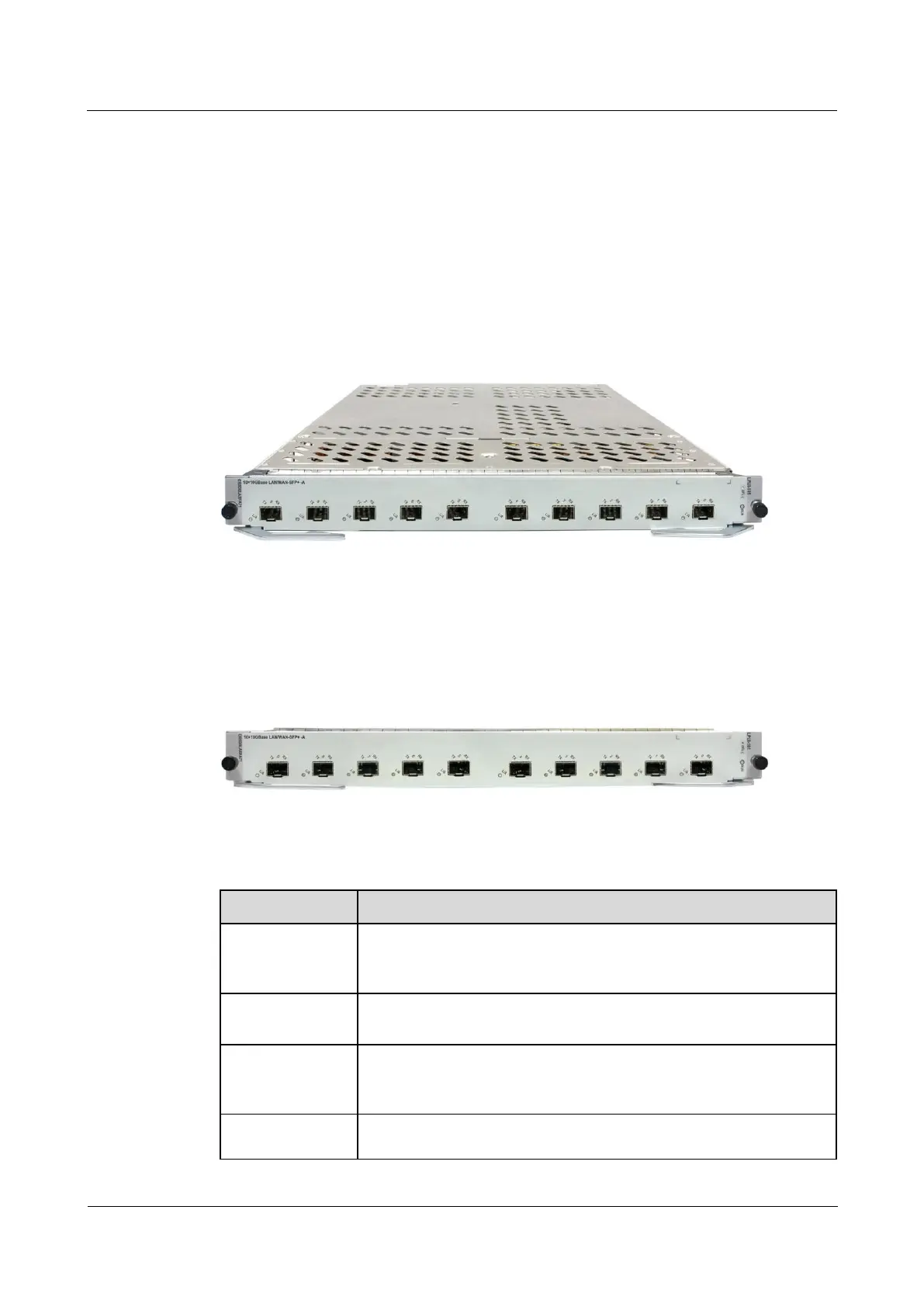

Figure 6-46 shows the appearance of the 10-Port 10GBase LAN/WAN-SFP+ Integrated Line
Processing Unit (LPUI-101). The five ports can be configured to work in LAN or WAN mode
(supporting 1588v2).
Figure 6-46 Appearance of the 10-Port 10GBase LAN/WAN-SFP+ Integrated Line Processing
Unit (LPUI-101)
Panel
Table 6-120 lists the indicators on the panel.
Figure 6-47 Appearance of the 10-Port 10GBase LAN/WAN-SFP+ Integrated Line Processing
Unit (LPUI-101)
Table 6-119 Indicators on the panel of the 10-Port 10GBase LAN/WAN-SFP+ Integrated Line
Processing Unit (LPUI-101)
Component
Description
OFL button
It is an OFL button. Before removing a board, press the OFL button.
Hold the button for five seconds till the OFL indicator is on. Then, the
board can be pulled out.
OFL indicator
(red)
If the indicator is steady on, it indicates that you can remove the
board.
RUN (green)
If the indicator blinks once every 2s (0.5 Hz), it indicates that the
system is running normally. If the indicator blinks twice every 1s (2
Hz), it indicates that the system is in the alarm state.
L/A (green)
If the indicator is steady on, it indicates that the link is normal. If the
indicator blinks, it indicates that data is being transmitted. If the
