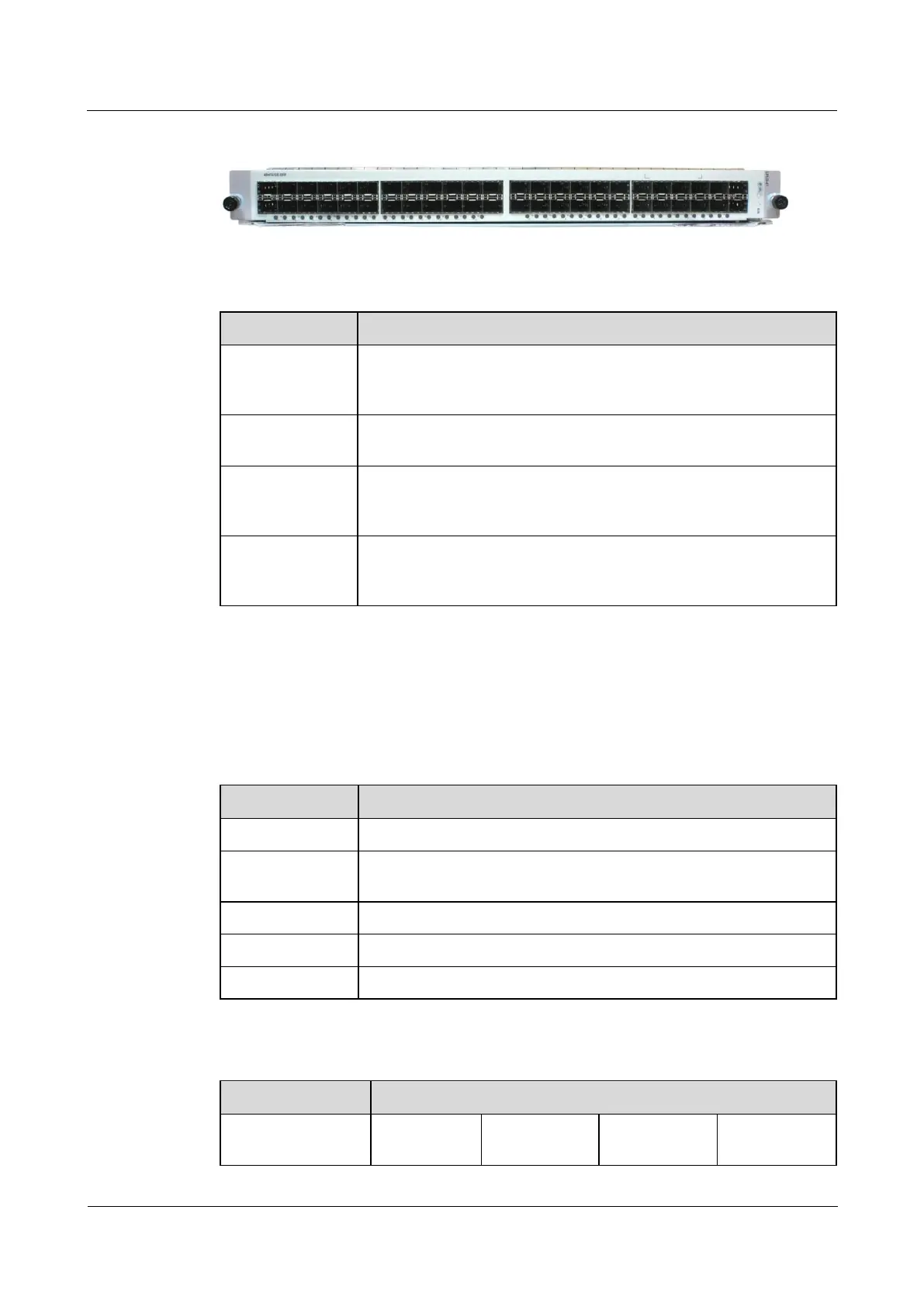

Figure 6-164 Panel appearance of the 48-port 100/1000Base-X SFP Line Processing Unit S
Table 6-456 Indicators on the panel of the 48-port 100/1000Base-X SFP Line Processing Unit S
It is an OFL button. Before removing a board, press the OFL button.
Hold the button for five seconds till the OFL indicator is on. Then, the
board can be pulled out.
If the indicator is steady on, it indicates that you can remove the
board.
If the indicator blinks once every 2s (0.5 Hz), it indicates that the
system is running normally. If the indicator blinks twice every 1s (2
Hz), it indicates that the system is in the alarm state.
If the indicator is steady on, it indicates that the link is normal. If the
indicator blinks, it indicates that data is being transmitted. If the
indicator is off, it indicates that the link is Down.
Interface Attributes
Table 6-457 lists the interface attributes of the 48-port 100/1000Base-X SFP Line Processing
Unit S.
Table 6-457 Interface attributes of the 48-port 100/1000Base-X SFP Line Processing Unit S
Optical interface
attributes
Compliant with the selected SFP optical module.
Ethernet_II, Ethernet_SAP, and Ethernet_SNAP
Table 6-458 Attributes of 100M SFP optical modules
To Next Page
