HUAWEI NetEngine40E Universal ServiceRouter
Hardware Description
E DPD300-4-12 Power Distribution Box, Dual-Two
Inputs
Issue 01 (2012-09-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
740

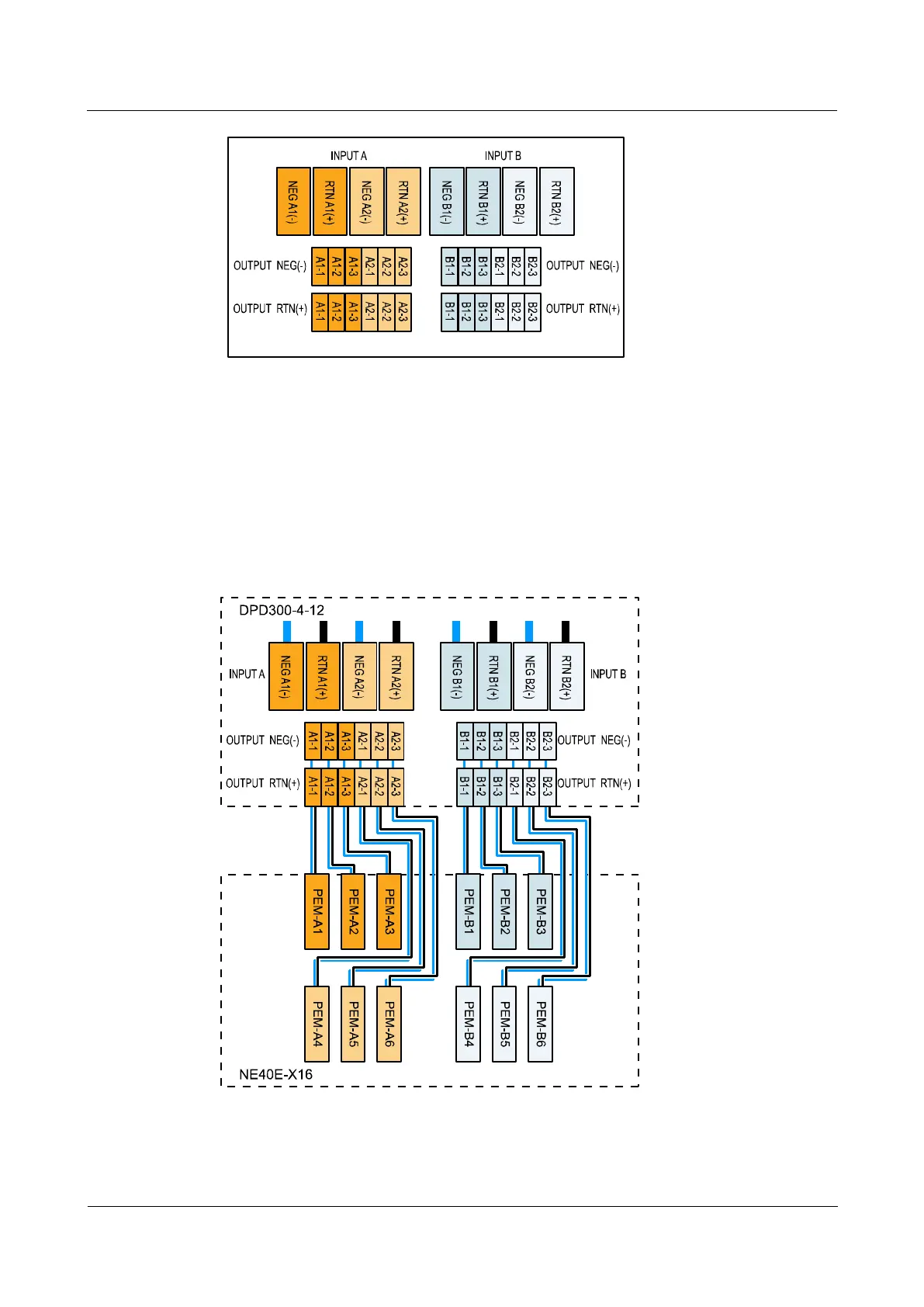

1.Scenario Where a Huawei NE40E-X16 Is Equipped with 12 PEM Modules
PEM-A1 to PEM-A3 are connected to A1-1 to A1-3 in the power distribution box, and
PEM-A4 to PEM-A6 are connected to A2-1 to A2-3 in the power distribution box.
PEM-B1 to PEM-B3 are connected to B1-1 to B1-3 in the power distribution box, and
PEM-B4 to PEM-B6 are connected to B2-1 to B2-3 in the power distribution box.
Figure E-5 Power distribution mode 1 for the NE40E-X16
