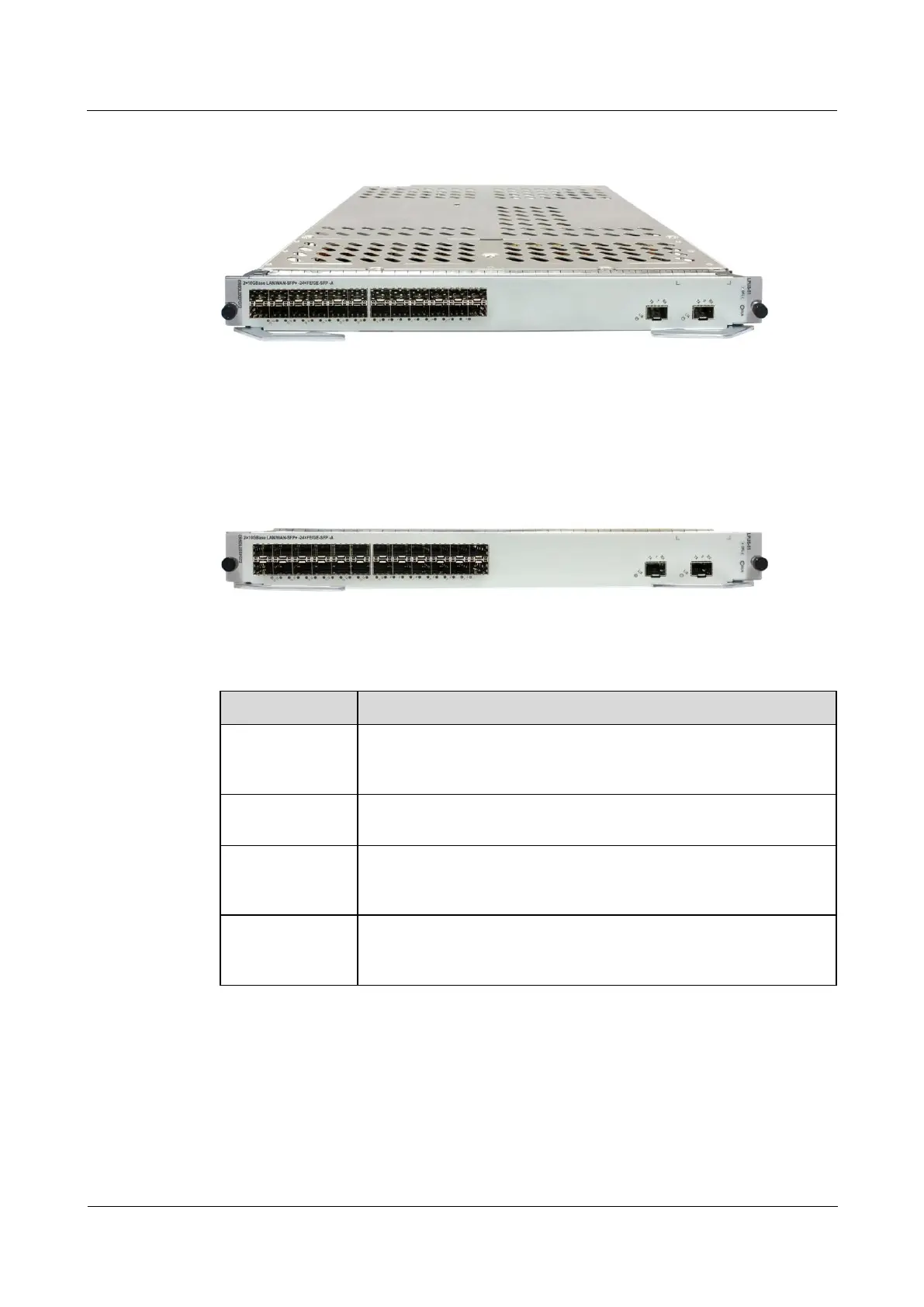

Figure 6-94 Appearance of the 2-Port 10GBase LAN/WAN-SFP+ + 24-Port
100/1000Base-X-SFP Line Processing Unit S
Panel
Table 6-249 lists the indicators on the panel.
Figure 6-95 Appearance of the 2-Port 10GBase LAN/WAN-SFP+ + 24-Port
100/1000Base-X-SFP Line Processing Unit S
Table 6-248 Indicators on the panel of the 2-Port 10GBase LAN/WAN-SFP+ + 24-Port
100/1000Base-X-SFP Line Processing Unit S
It is an OFL button. Before removing a board, press the OFL button.
Hold the button for five seconds till the OFL indicator is on. Then, the
board can be pulled out.
If the indicator is steady on, it indicates that you can remove the
board.
If the indicator blinks once every 2s (0.5 Hz), it indicates that the
system is running normally. If the indicator blinks twice every 1s (2
Hz), it indicates that the system is in the alarm state.
If the indicator is steady on, it indicates that the link is normal. If the
indicator blinks, it indicates that data is being transmitted. If the
indicator is off, it indicates that the link is Down.
Interface Attributes
Table 6-249 lists the interface attributes of the 2-Port 10GBase LAN/WAN-SFP+ + 24-Port
100/1000Base-X-SFP Line Processing Unit S.
