HUAWEI NetEngine40E Universal ServiceRouter
Hardware Description
E DPD300-4-12 Power Distribution Box, Dual-Two
Inputs
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Usage Scenario
The power distribution box can convert 2 or 4 DC input lines into 12 output lines. It can be
used in an equipment room that cannot provide enough power lines.
For example, the power distribution box is used to convert 4 input lines into 12 output lines to
power the Huawei NE40E-X16 that is equipped with 12 PEM modules.
Main Components

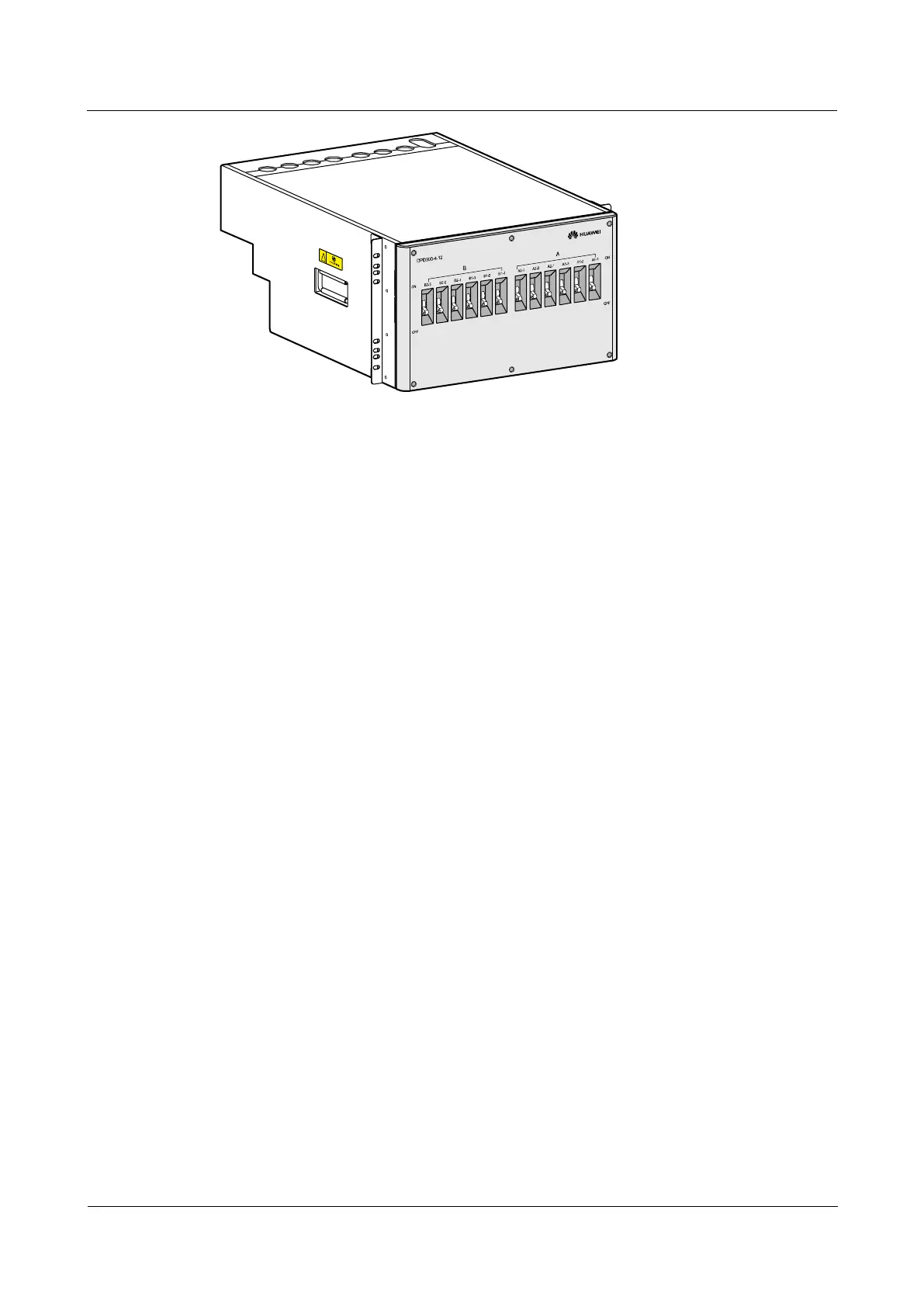

Figure E-2 DPD300-4-12 components
