Huawei NetEngine40E

HUAWEI NetEngine40E Universal ServiceRouter
Hardware Description
E DPD300-4-12 Power Distribution Box, Dual-Two
Inputs
Issue 01 (2012-09-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
748

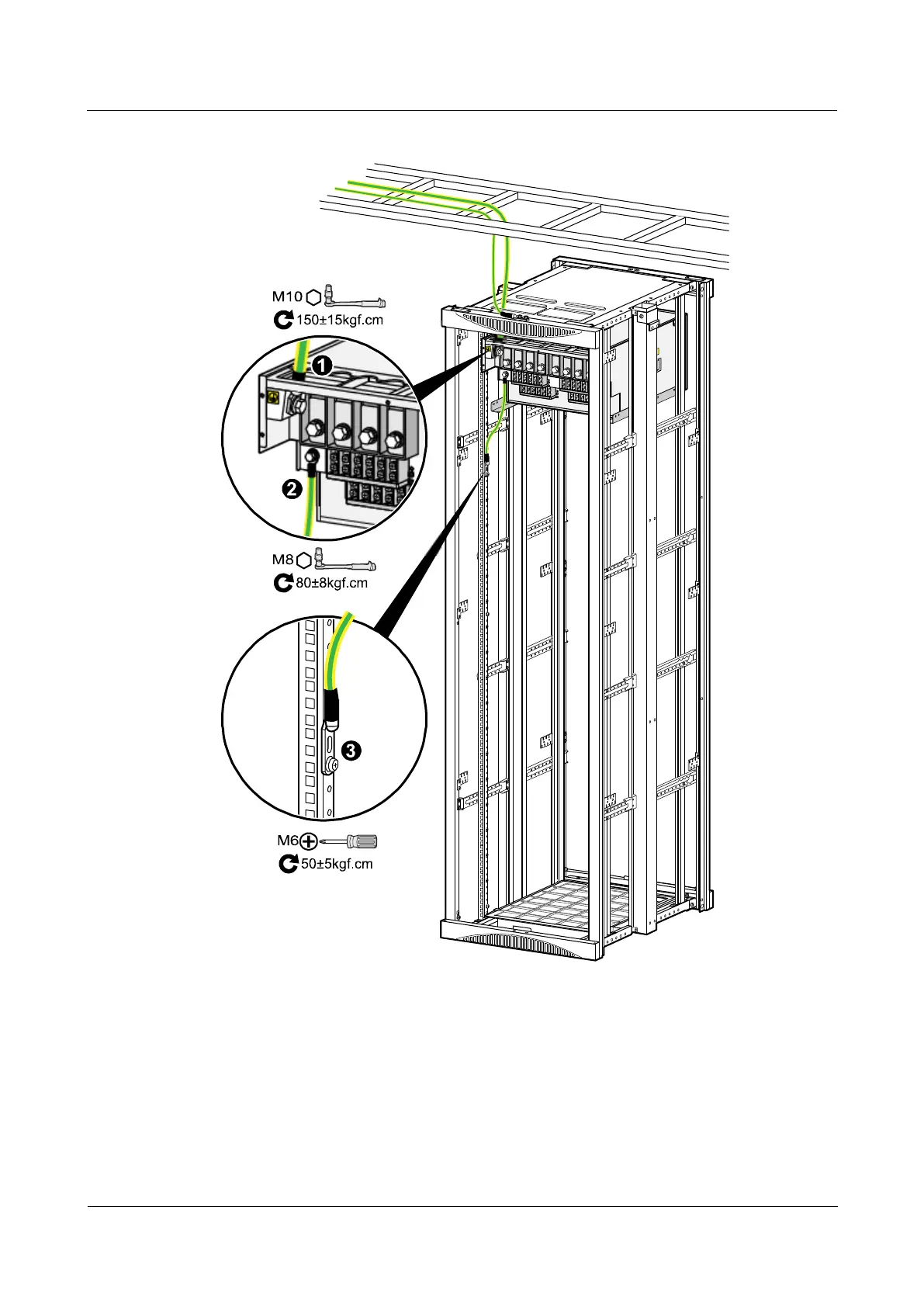

Figure E-13 Installing grounding cables
Step 6: Install power cables.
Install power input cables, as shown in （1） and （2） of Figure E-14.
Install power output cables, as shown in （3） and （4） of Figure E-14 .
