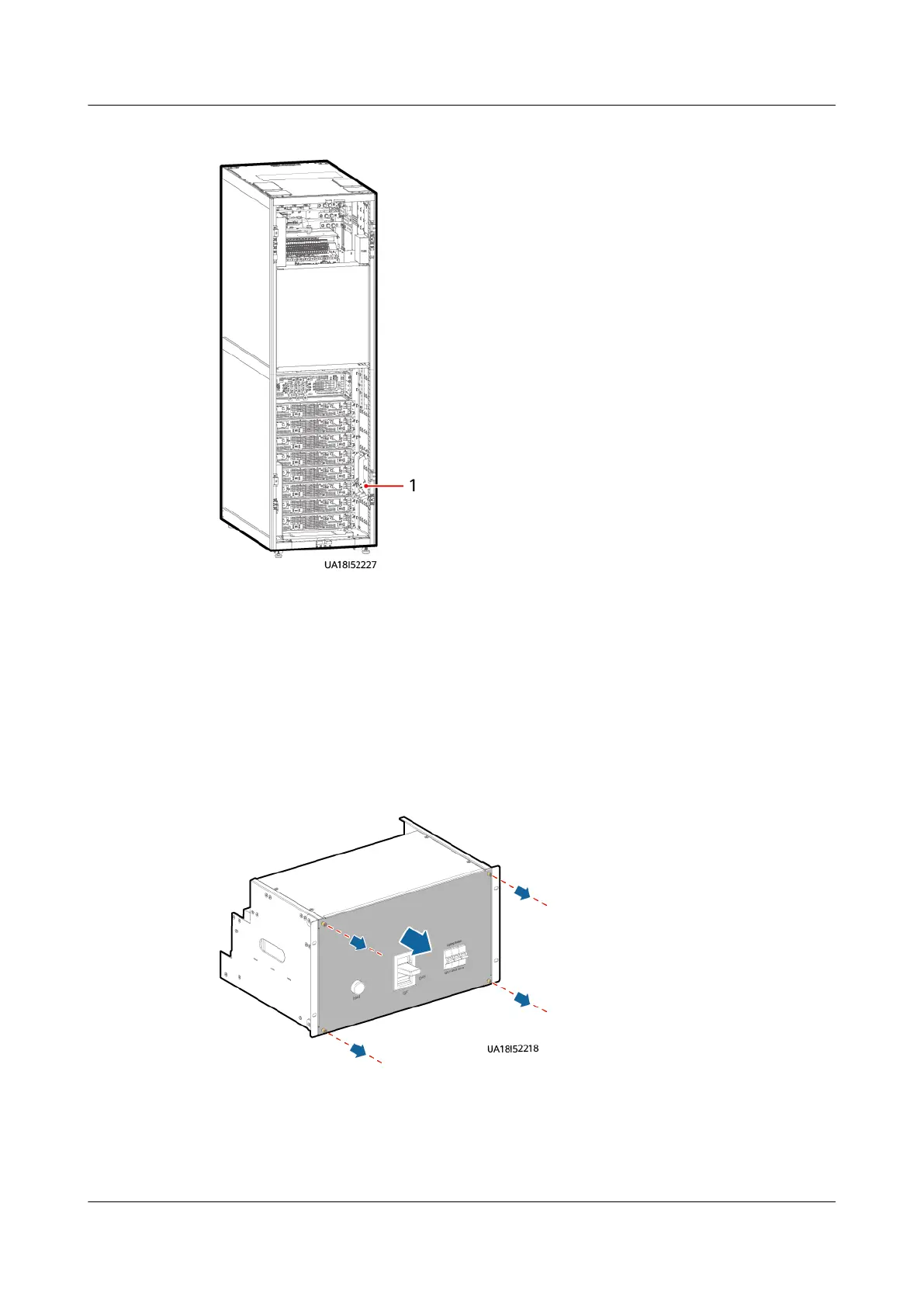

Figure 8-1 Location of the assisting tool
(1) Assisting tool (optional)
Procedure
Step 1 Remove the screws from the front cover of the switch, keep them properly, and
then remove the cover.
Figure 8-2 Removing the front cover from the switch
Step 2 Remove the captive screws from the clamping plate on the top of the switch, and
then remove the clamping plate.
UPS5000-E-(30 kVA–180 kVA)
User Manual (Integrated UPS) 8 Parts Replacement
Issue 02 (2022-12-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 157
