Context
The tail frame can increase the UPS depth to 1200 mm. The BOM number is
21242025.

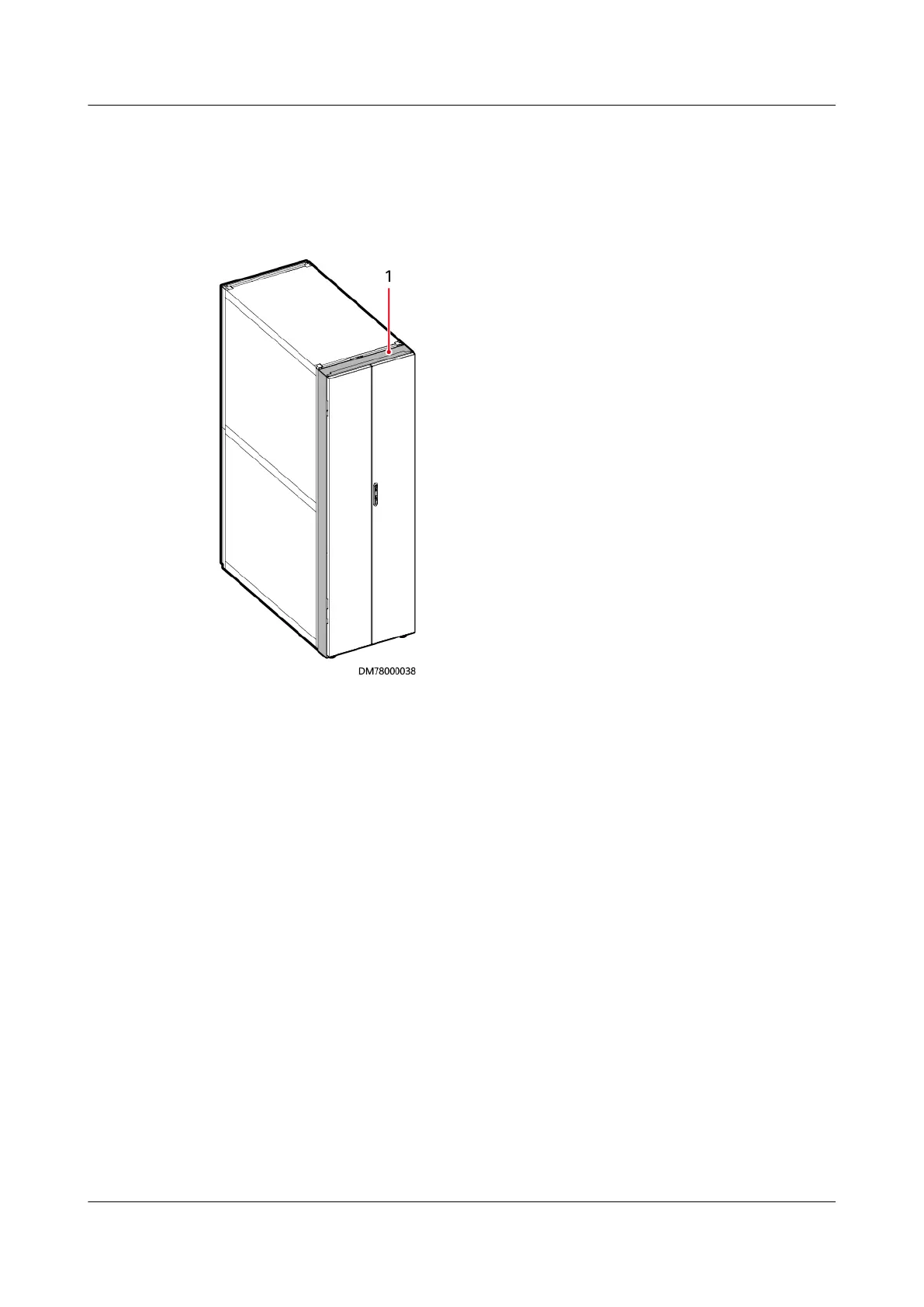

Figure 3-12 Tail frame installed
(1) Tail frame
Procedure
Step 1 Use eight M5 tapping screws to secure the tail frame accessories to the tail frame.
UPS5000-E-(30 kVA–180 kVA)
User Manual (Integrated UPS) 3 Installation
Issue 02 (2022-12-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 60
