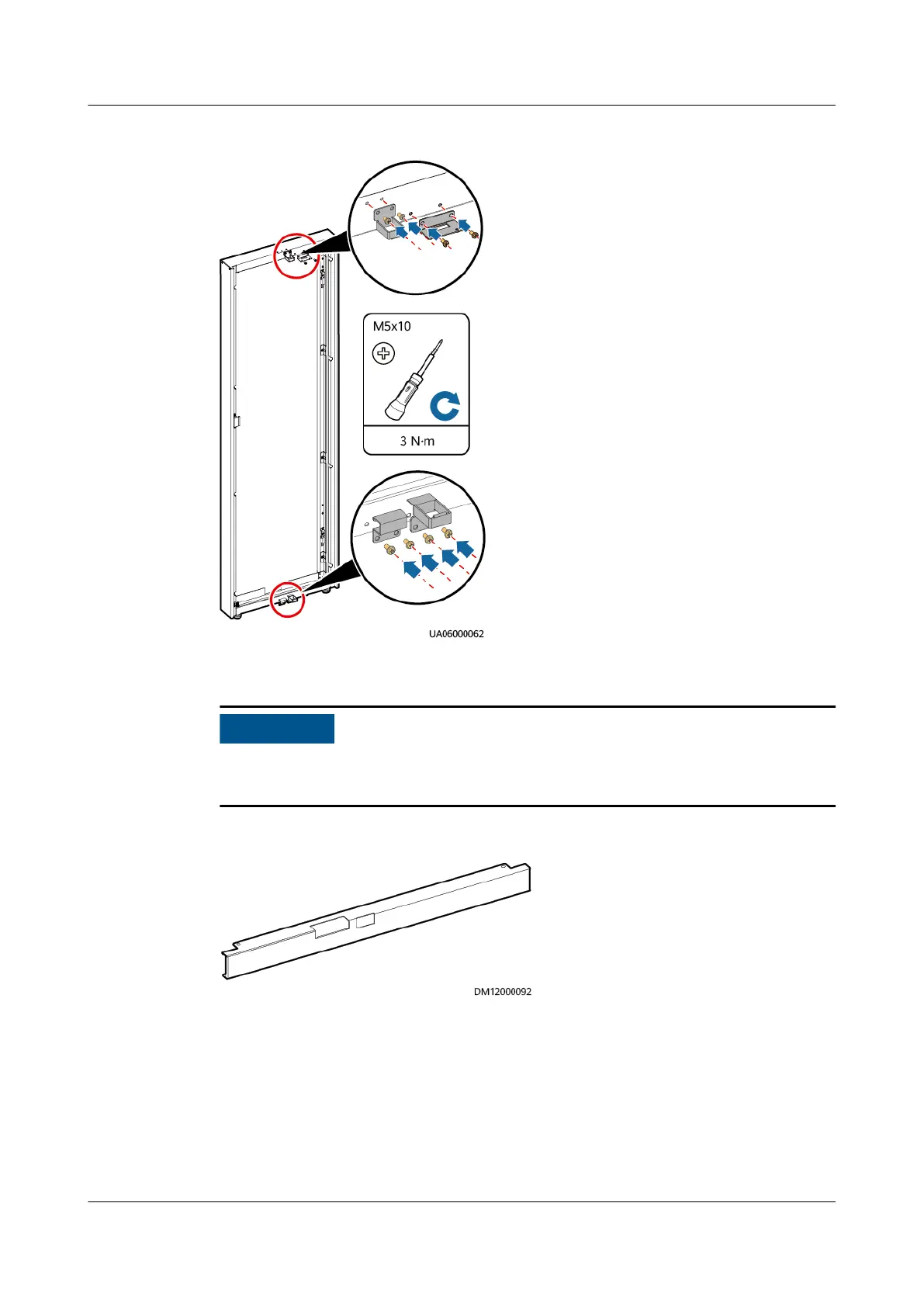

Figure 3-13 Securing the tail frame accessories
Step 2 Use four M5 tapping screws to secure the upper sealing plate to the tail frame.
There are two upper sealing plates for the tail frame. The one used in this step has
a gap.
Figure 3-14 Upper sealing plate for a tail frame
UPS5000-E-(30 kVA–180 kVA)
User Manual (Integrated UPS) 3 Installation
Issue 02 (2022-12-30) Copyright © Huawei Digital Power Technologies Co., Ltd. 61
