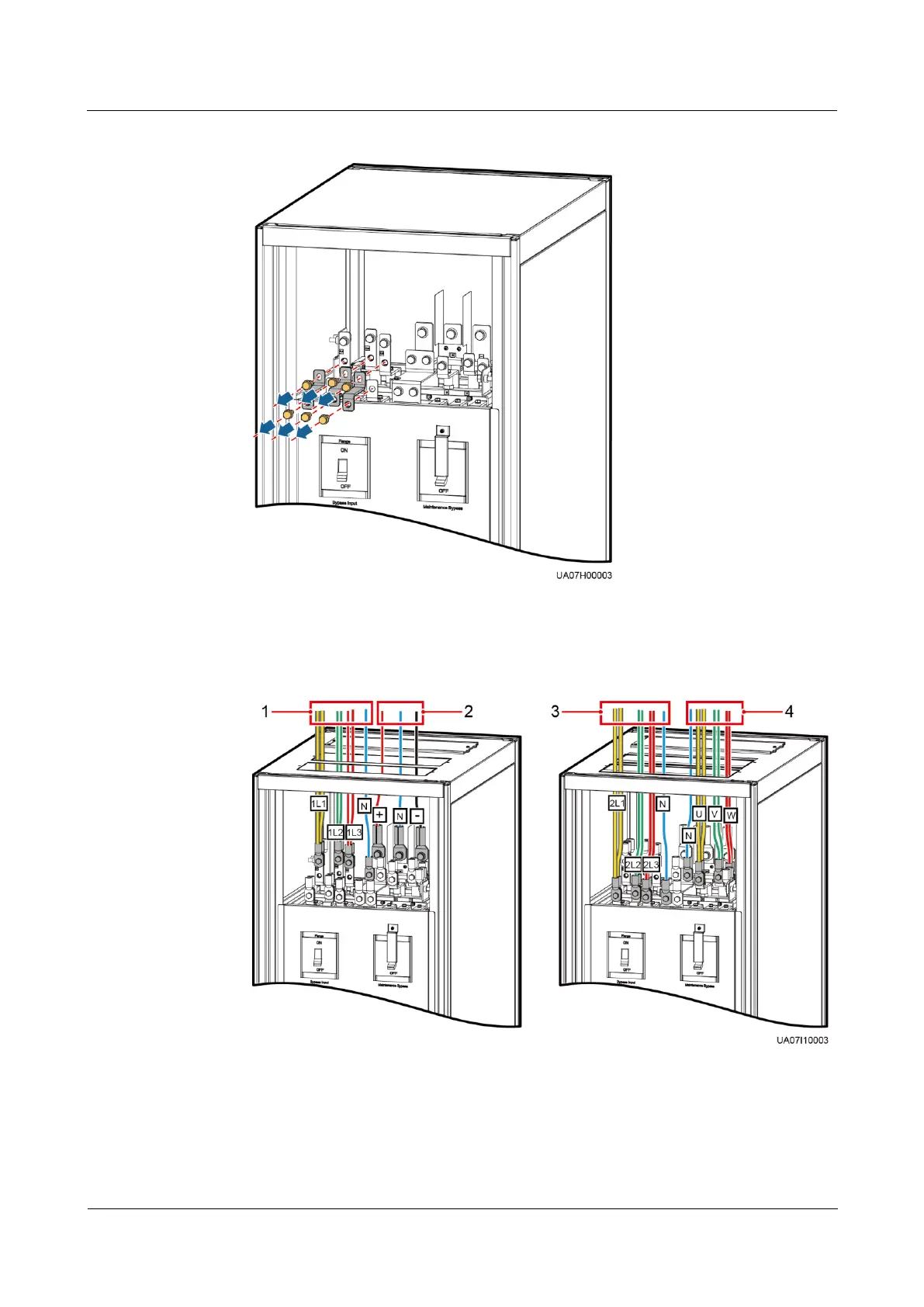

Figure 3-48 Removing copper bars
Figure 3-49 shows the cables routed from the top of the cabinet.
Figure 3-49 Top cabling
(1) Mains input terminals (1L1–1L3, N)
(2) Battery input terminals (+, N, –)
(3) Bypass input terminals (2L1–2L3, N)
(4) Output terminals (U, V, W, N)
