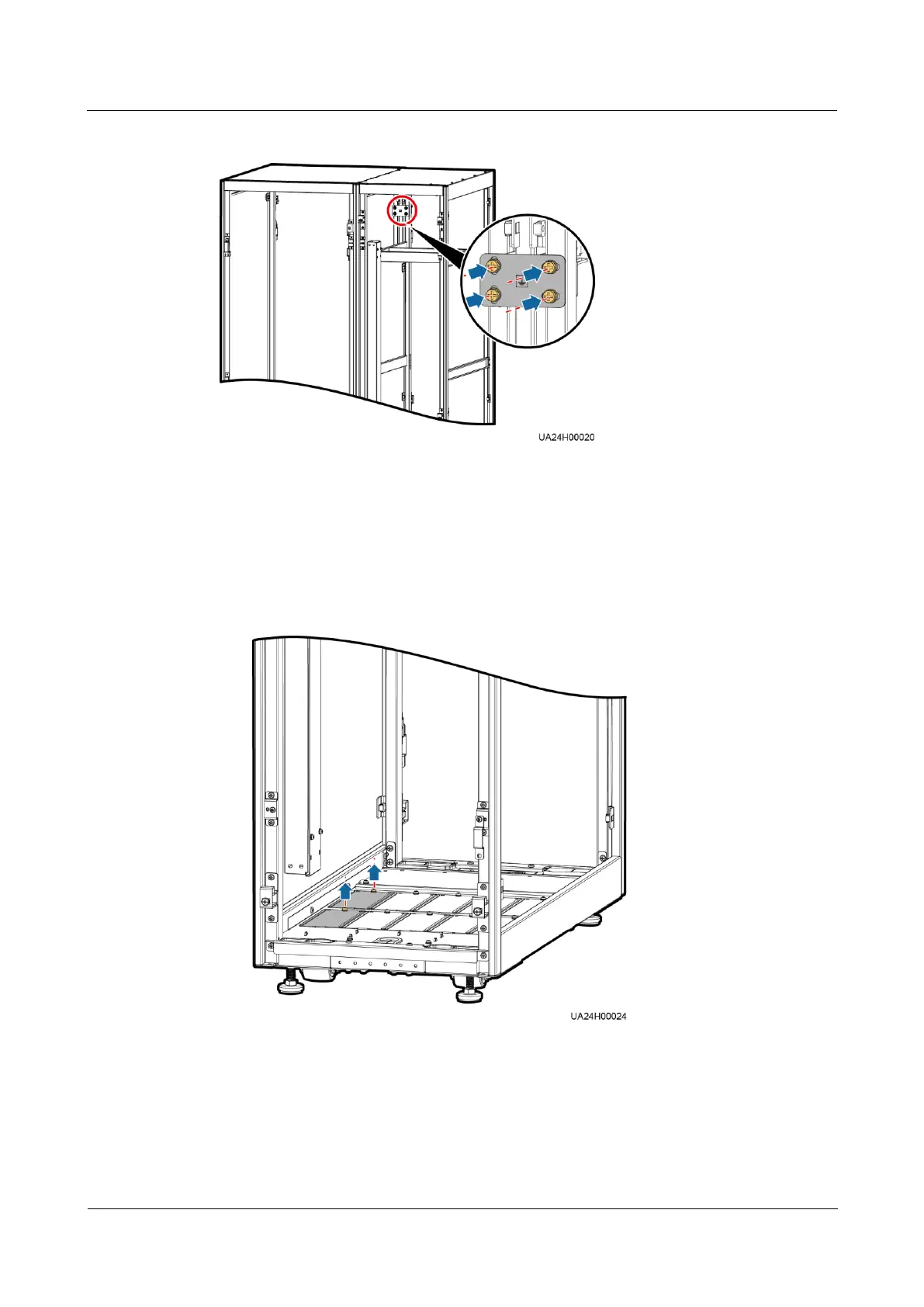

Figure 3-55 Equipotential plate
Step 9 Determine the cabling mode.
Remove small covers for routing cables.
Remove a certain number of small covers from the bottom of the cable entry cabinet
based on the actual cable conditions.
Figure 3-56 Removing small covers
Drill holes in the large cover for routing cables.
a. Remove all small covers from the bottom of the cable entry cabinet.
b. Remove the two large covers from the bottom of the cable entry cabinet, drill holes
in them based on site requirements, and install them on the positions where the
small covers were placed.
