UPS5000-E-(50 kVA-300 kVA)
User Manual (50 kVA Power Modules)
Copyright © Huawei Technologies Co., Ltd.

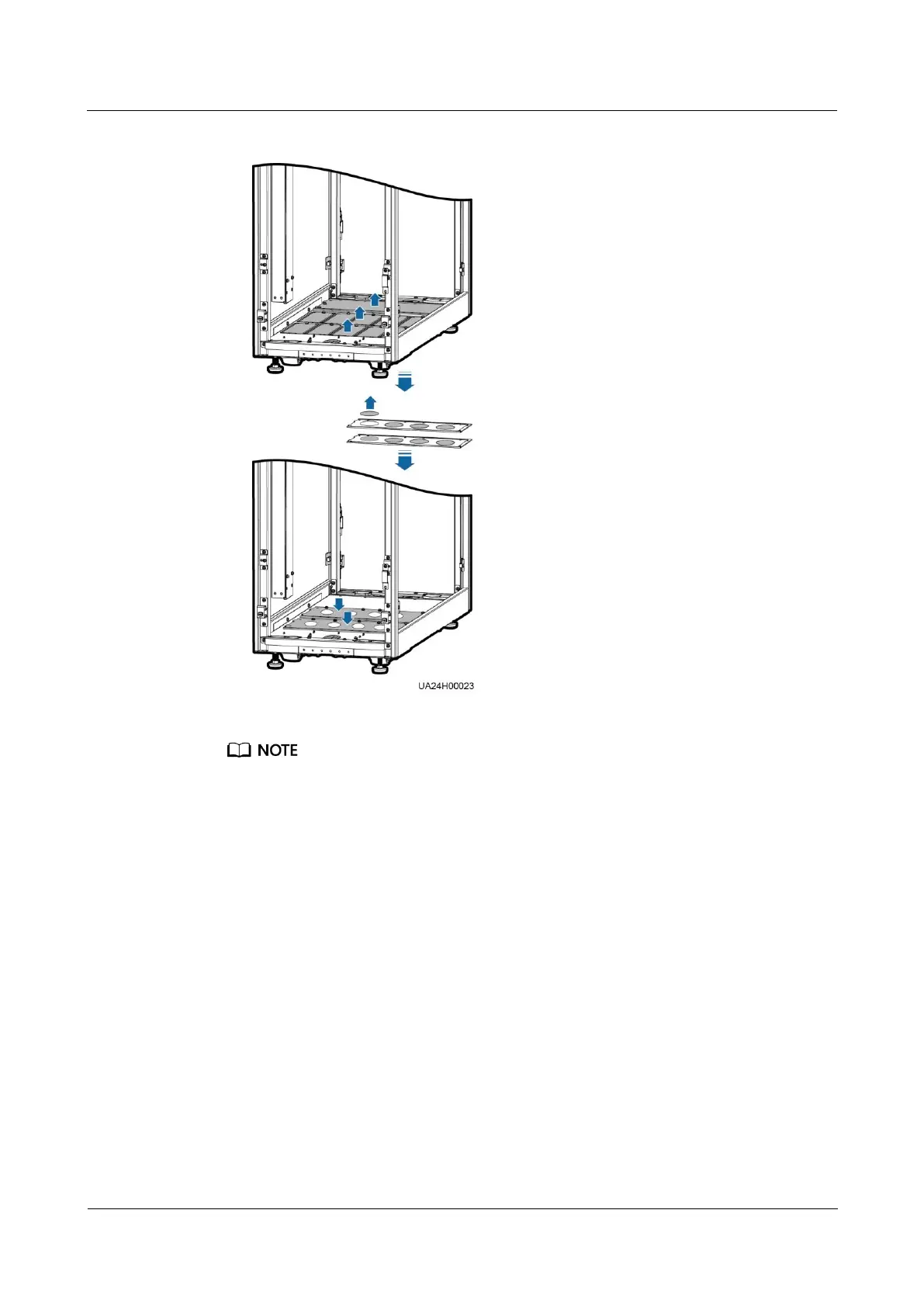

Figure 3-57 Removing large covers
The quantity of holes in the above figure is for reference only.
If holes are drilled for routing cables, attach grommet strips on the hole edges to protect cables.
Step 10 Connect the ground cables.
