Huawei UPS5000-E Series - Page 113

UPS5000-E-(50 kVA-300 kVA)
User Manual (50 kVA Power Modules)
3 Installation
Issue 11 (2019-12-20)
Copyright © Huawei Technologies Co., Ltd.
103

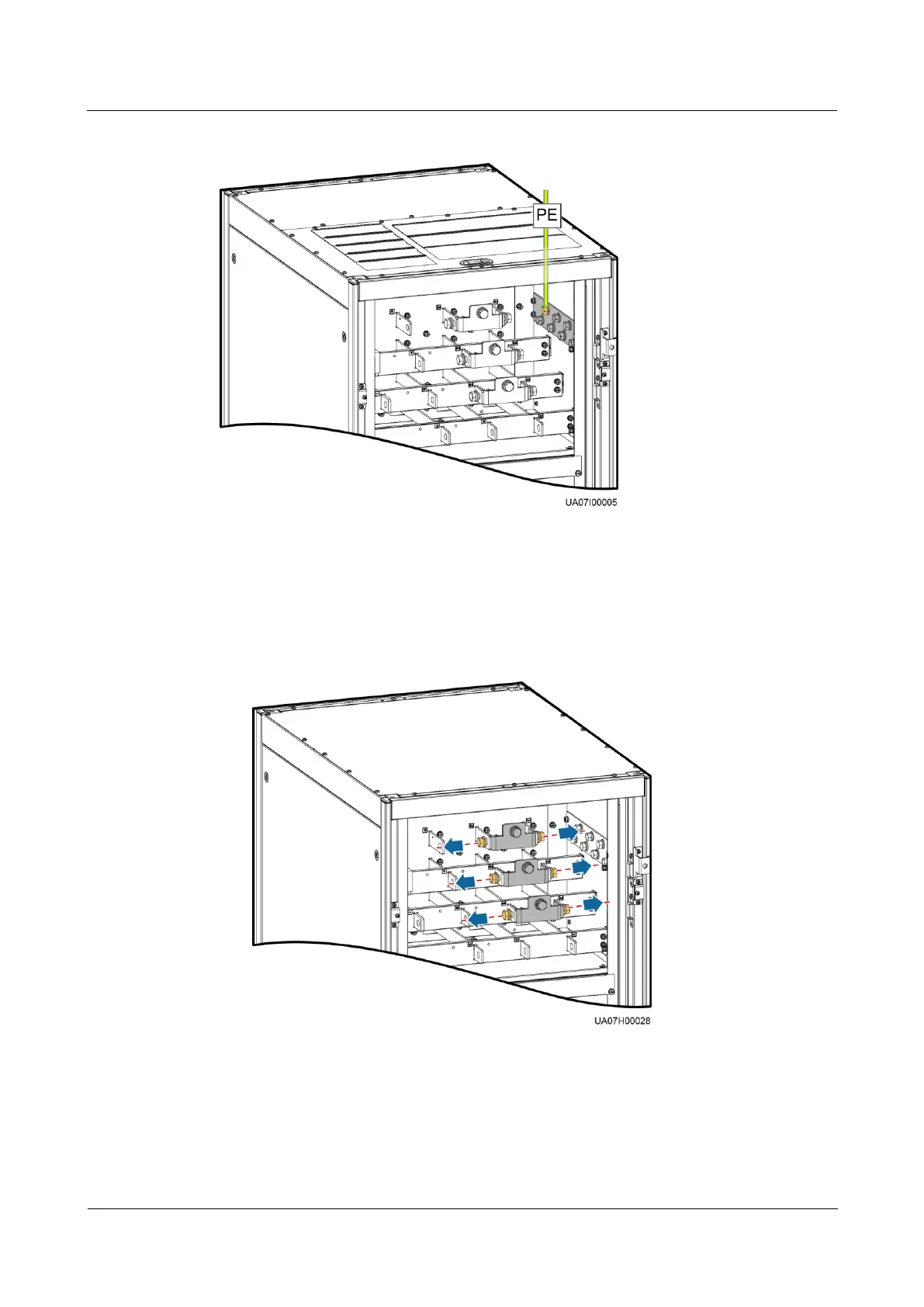

Figure 3-65 Grounding
Step 3 Route power cables.

Dual mains
Remove the copper bar between mains and bypass input terminals.
Figure 3-66 Removing copper bars
