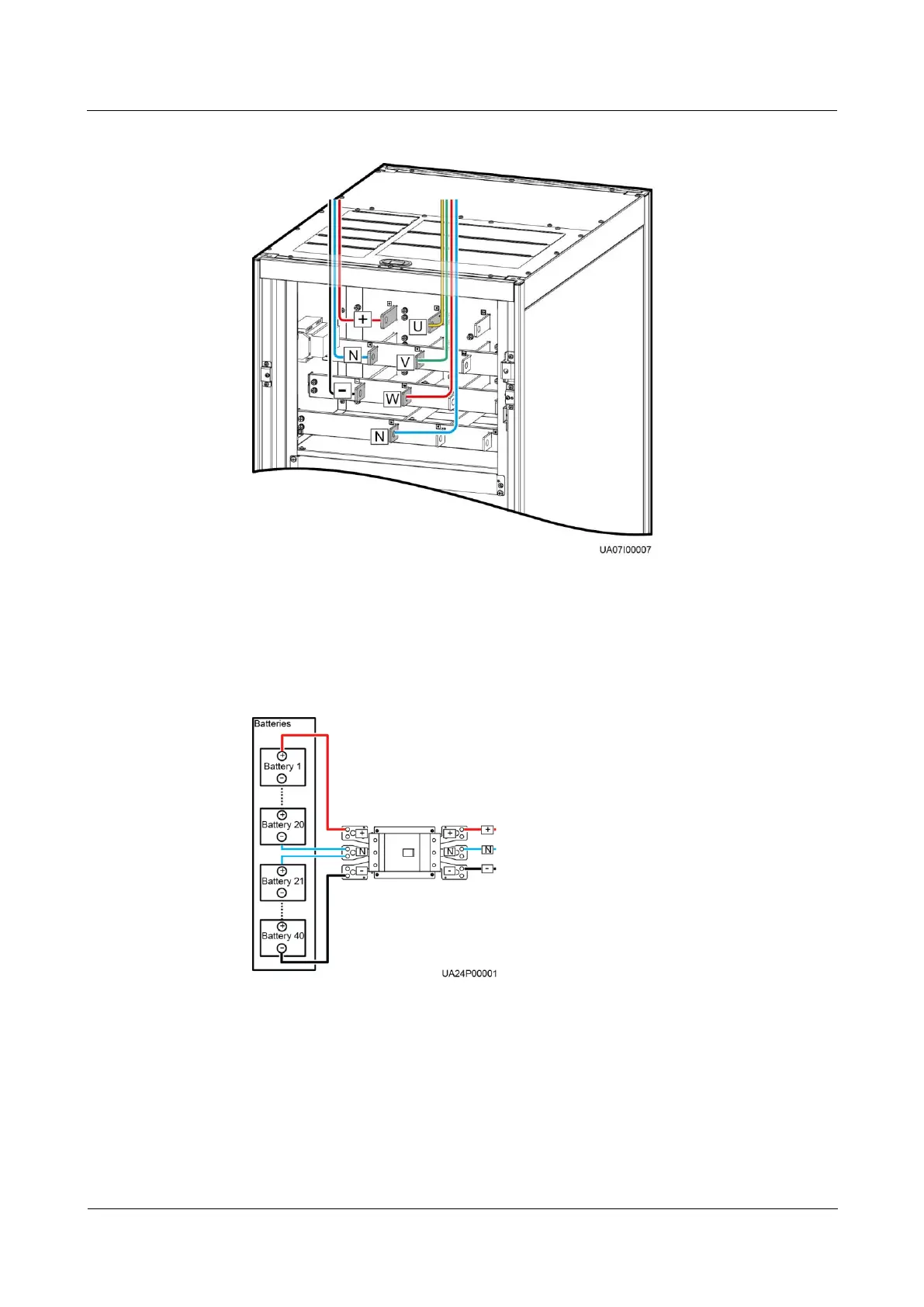

Figure 3-67 Connecting power cables 1
Route a neutral wire from the middle of the positive and negative battery strings.
The battery neutral wire is routed from the middle of positive and negative battery
strings, each consisting of 20 batteries.
Figure 3-68 Neutral wire
