Huawei UPS5000-E Series User Manual

UPS5000-E-(50 kVA-300 kVA)
User Manual (50 kVA Power Modules)
3 Installation
Issue 11 (2019-12-20)
Copyright © Huawei Technologies Co., Ltd.
116

The quantity of holes in the above figure is for reference only.

If holes are drilled for routing cables, attach grommet strips to the hole edges to protect cables.

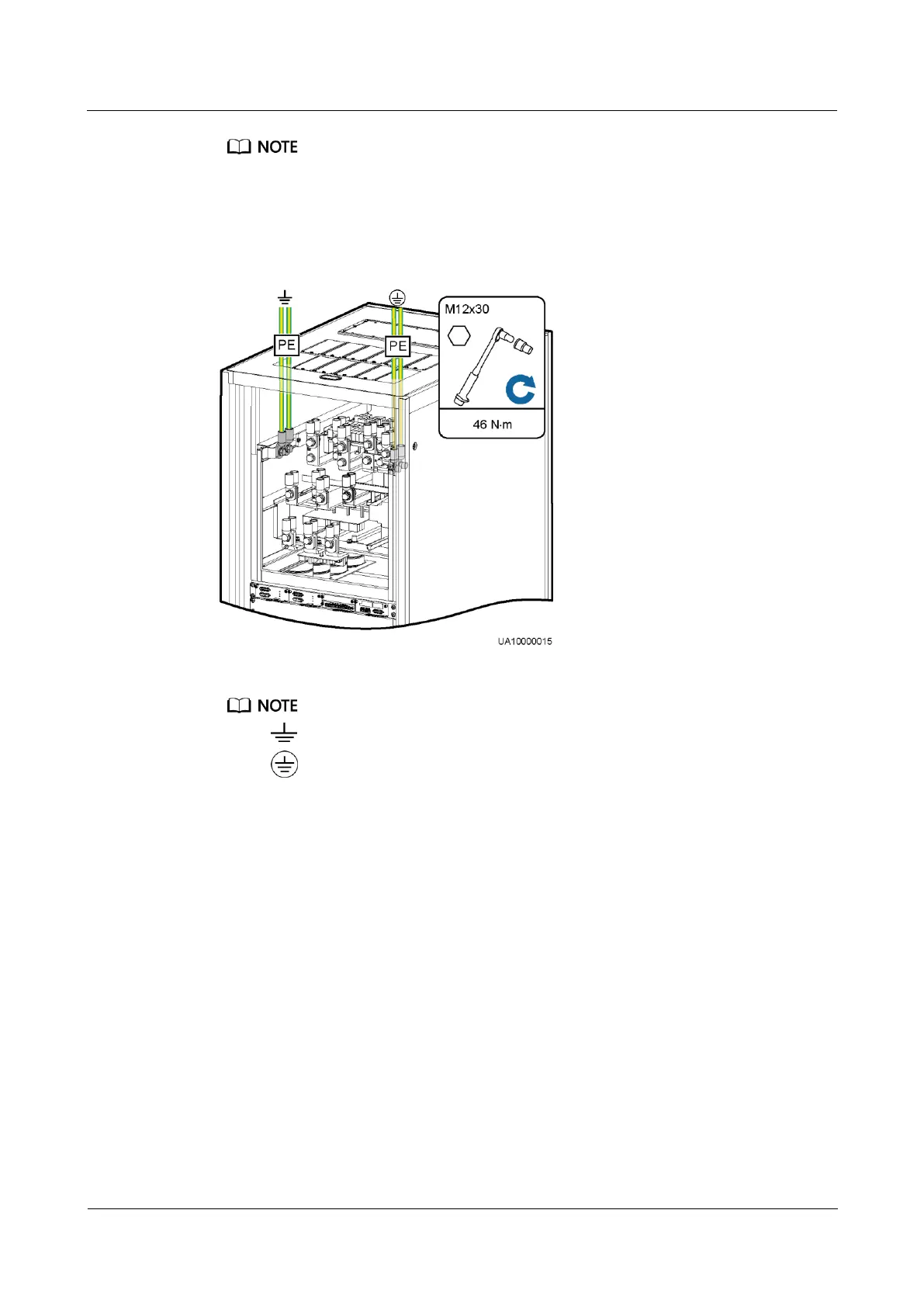

Step 3 Connect ground cables, as shown in Figure 3-84.
Figure 3-84 Grounding

: Internal equipotential connection

: Protection ground
Step 4 Route power cables.

Dual mains
Remove the copper bar between mains and bypass input terminals, as shown in Figure
3-85.
