Installing a lock on the maintenance bypass switch is advised. The lock core has a
diameter of 5–10 mm.

Strictly observe the following procedure to transfer the UPS to maintenance bypass mode.
Otherwise, loads may power off.

In maintenance bypass mode, the mains supplies power to the loads directly over the
maintenance bypass. If the mains is not normal, the loads may power off.
Procedure
Step 1 Transfer the UPS to the bypass mode.
Step 2 Close the maintenance bypass switch by performing the following actions according to the
UPS version being used:

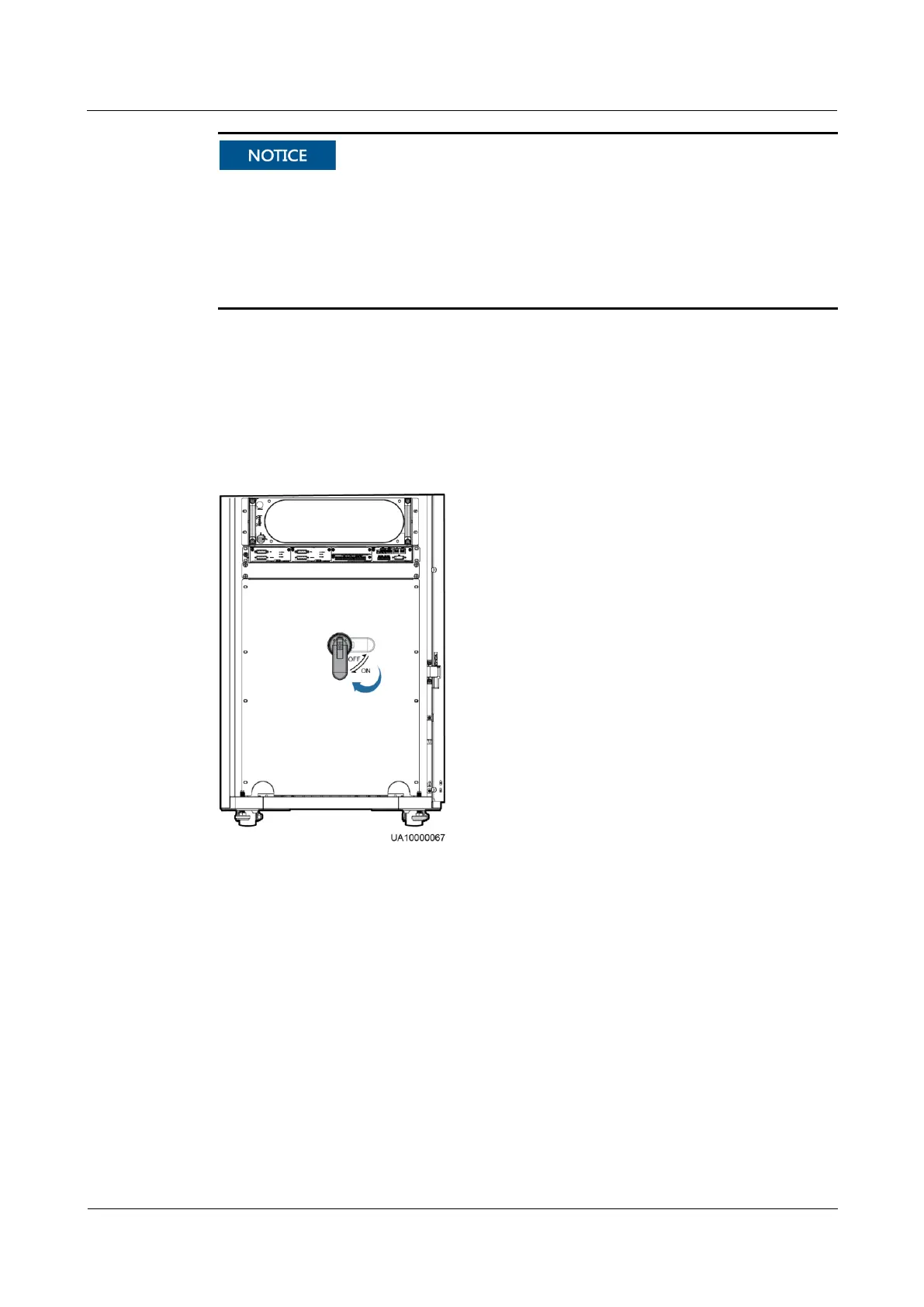

Figure 5-16 Closing the maintenance bypass switch (UPS5000-E-200K-SM)
