IAI ROBO Cylinder RCP6 User Manual

115

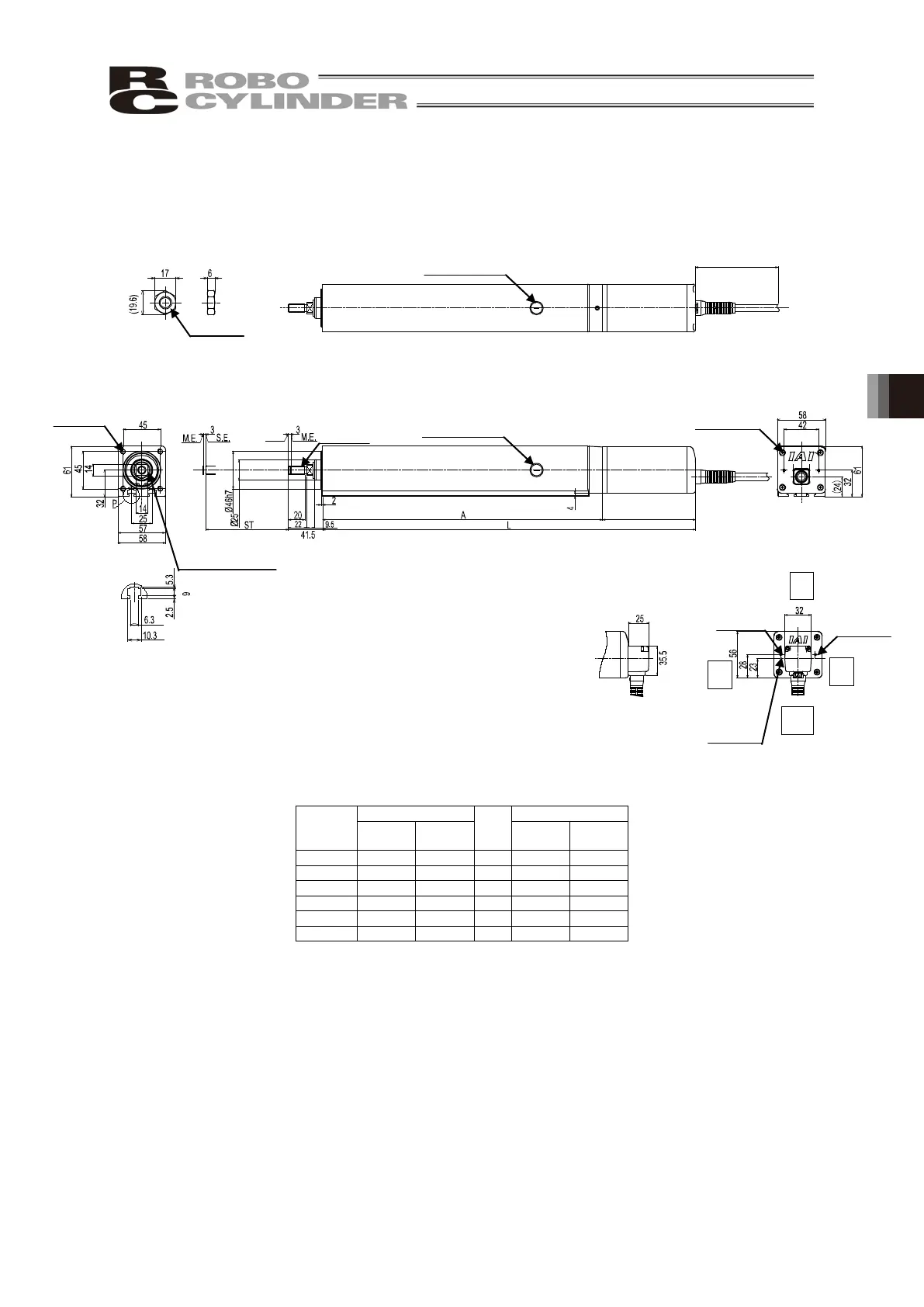

6. External Dimensions
6.3 Standard Specification RCP6-RA6C
ST : Stroke
M.E. : Mechanical End
S.E. : Stroke End
Stroke
L
A
Mass [kg]
W/o
Brake
With
Brake
W/o
Brake
With
Brake
50
301.5
341
189
2.5
2.7
100
351.5
391
239
2.9
3.1
150
401.5
441
289
3.3
3.5
200
451.5
491
339
3.6
3.9
250
501.5
541
389
4.0
4.3
300
551.5
591
439
4.4
4.7
(Note)
L dimensions described in the table are those with no cable exit direction (option). For cable exit
direction types (option), the dimensions are longer in 25mm.
Enclosed
hexagonal nut
Greasing Port
(ø5 hole)
Maintain it more
than 100
Home
4-M6 Depth 12
The angle of the width
across flat is undefined.
Greasing Port (ø5 hole)
(The same applies to the
other side)
CJT
Top
CJR
Right
CJL
Left
CJB
Bottom
2-M3 Depth 6
(For ground
connection)
M10X1.25
Cable Exit Direction (Optional)
M10X1.25
112.5 (W/o Standard Brake)
152 (With Standard Brake)
Detailed View P
Scale 1 : 1
2-M3 Depth 6
(For ground
connection)
Disabled
when CJL is
selected.
Disabled
when CJR
is selected.
