58
1. Specifications Check
1.3.4 Foot Bracket (Model: FT)
This is a bracket for fixing the actuator body from the top with the bolts.
[For the dimensions, refer to 2.3.2 “Installation of the Main Unit [2] Installation by Using Foot
Brackets”]
1.3.5 T-slot Nut Bar (Model: NTB)
These are bar-shaped brackets that plug into the actuators T-slots.
There is a nut hole in the predetermined position on the T-slot nut bar.
[For the dimensions, refer to 2.3.2 “Installation of the Main Unit [1] Using the T-slot on the Bottom
of the Base”]

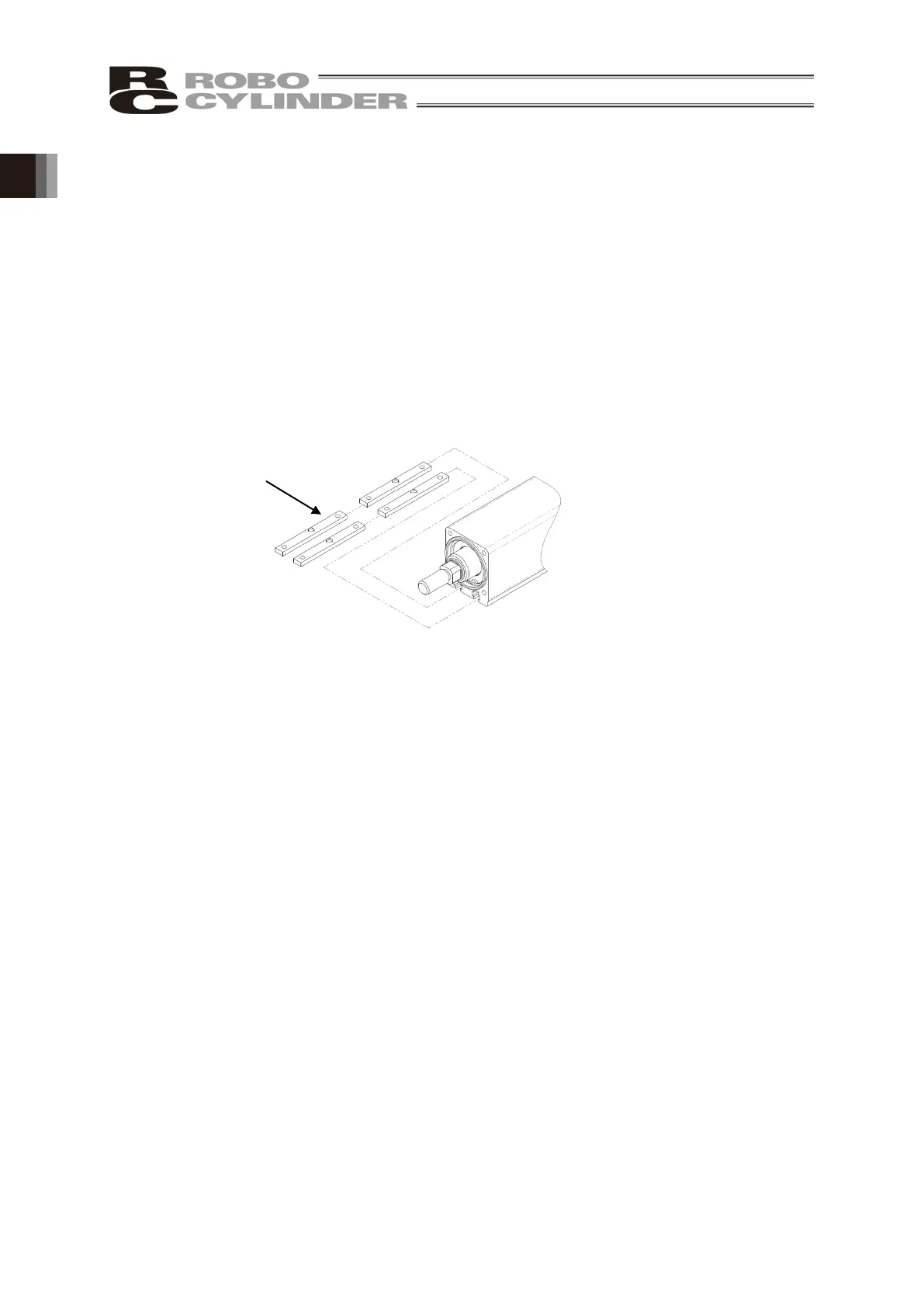

T-Slot Nut Bar
