1. Specifications Check
1.3.7 Motor Left Side-Mounted, Motor Top Side-Mounted, Motor Right
Side-Mounted (Model: ML, MT, MR)
From the view of the motor side, the type with the motor side-mounted to the left is ML, the motor
side-mounted to the top is MT, and the motor side-mounted to the right is MR.
1.3.8 Cable Exit Direction Changed (Model: CJT, CJR, CJL, CJB, CJO)
If a change in the cable exit direction is made, the direction of cable exit will be changed.
There are ejection directions, top (model: CJT), right (model: CJR), left (model: CJL), bottom
(model: CJB) and outward (model: CJO). The side-mounted motor type of RA4R, RA6R, RA7R,
and RA8R can only be selected for CJO.

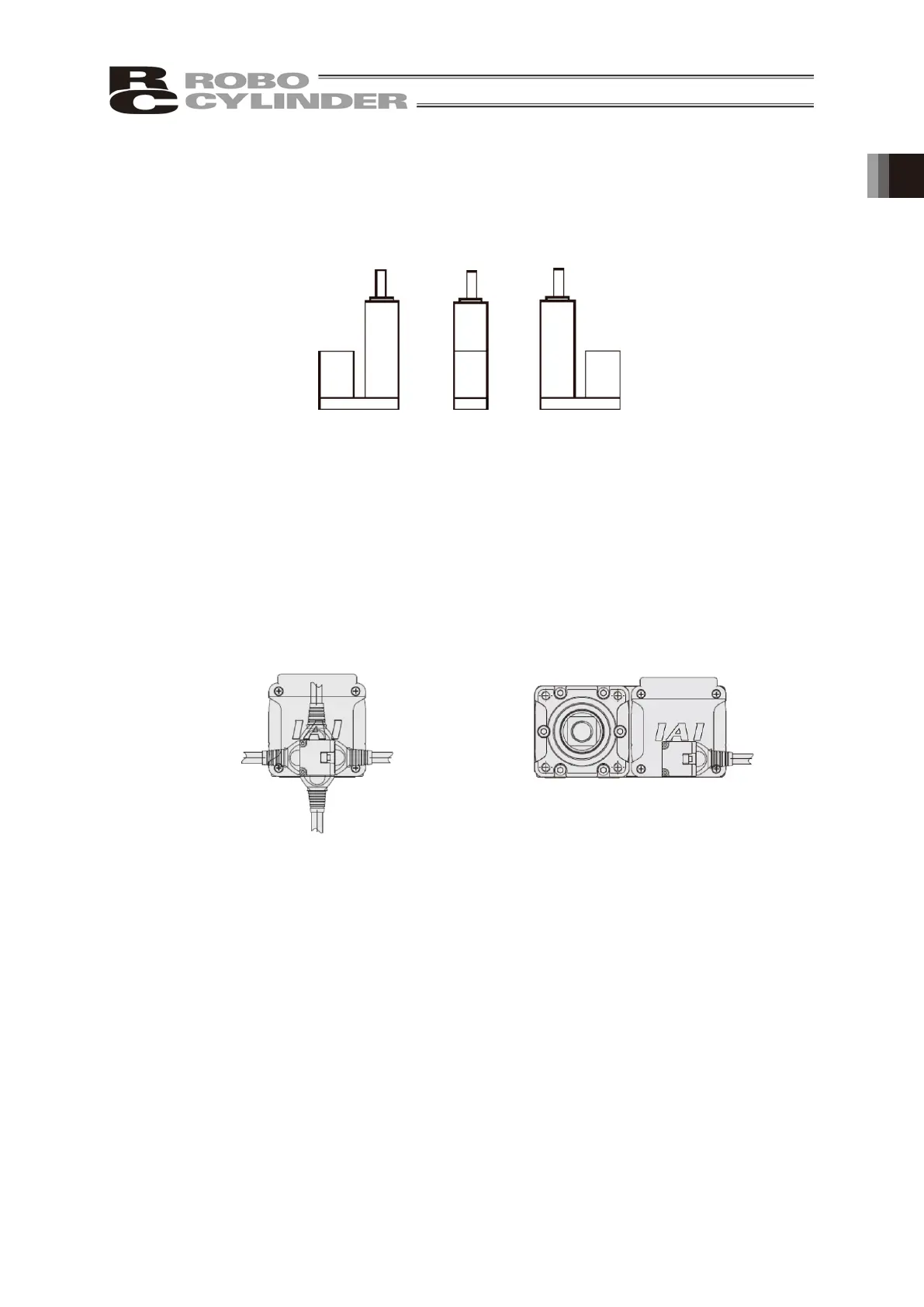

Figure viewed from
motor side
Figure viewed from
rod side
ML
(Left
Side-Mounted)
MT
(Top
Side-Mounted)
MR
(Right
Side-Mounted)
Outward
(Model: CJO)
Bottom
(Model: CJB)
Right Side
(Model: CJR)
Left Side
(Model: CJL)
Top
(Model: CJT)
