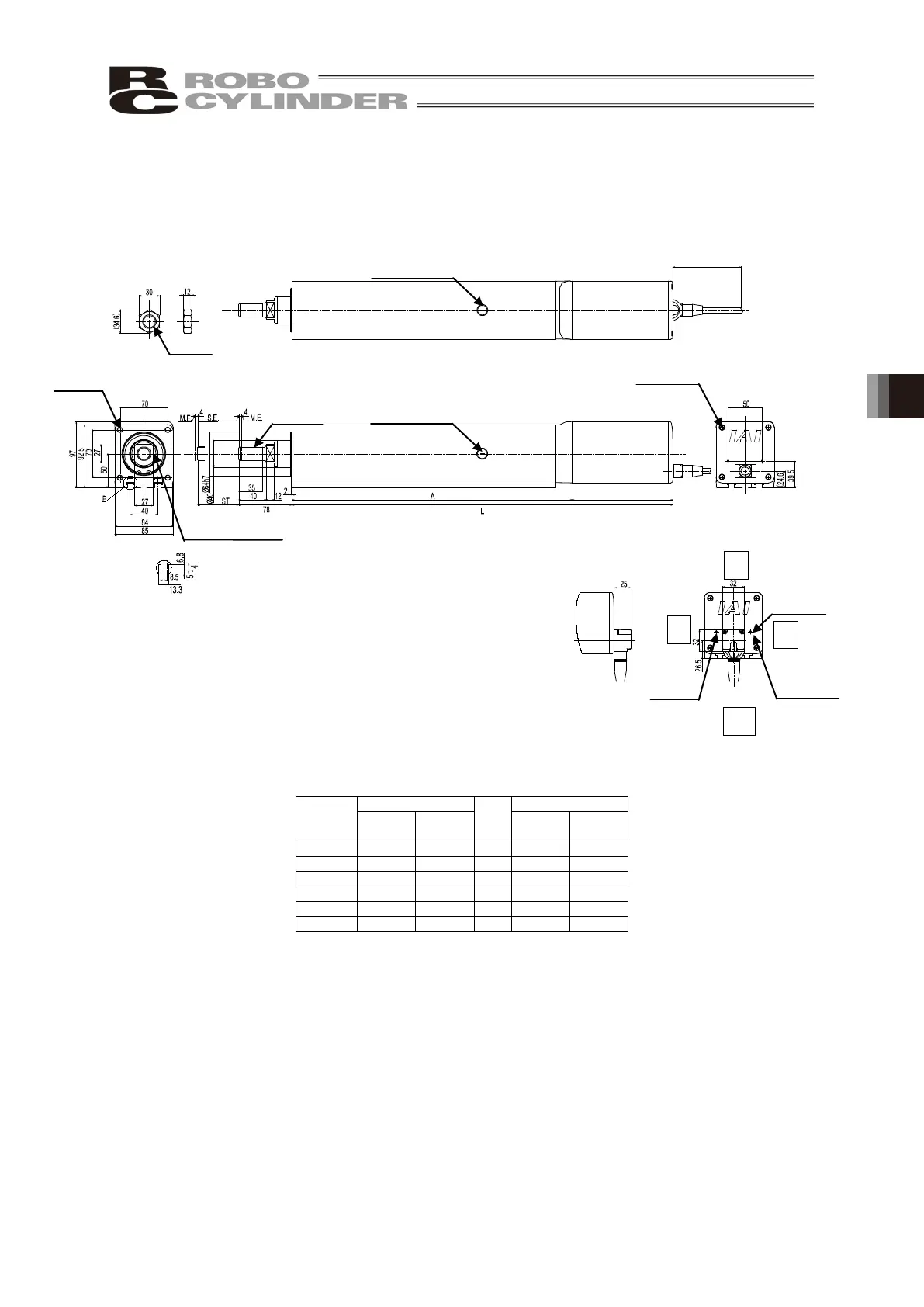

6. External Dimensions
6.7 Standard Specification RCP6-RA8C
ST : Stroke
M.E. : Mechanical End
S.E. : Stroke End
Stroke
L
A
Mass [kg]
W/o
Brake
With
Brake
W/o
Brake
With
Brake
50
407
437
260
7.8
8.4
100
457
487
310
8.6
9.2
150
507
537
360
9.5
10.0
200
557
587
410
10.3
10.9
250
607
637
460
11.1
11.7
300
657
687
510
11.9
12.5
(Note)
L dimensions described in the table are those with no cable exit direction (option). For cable exit
direction types (option), the dimensions are longer in 25mm.
Enclosed
hexagonal nut
Greasing Port
(ø5 hole)
Home
4-M8 Depth 16
The angle of the width
across flat is undefined.
Greasing Port (ø5 hole)
(The same applies to
the other side)
CJR
Right
CJB
Bottom
2-M3 Depth 6
(For ground
connection)
M20X1.5
Cable Exit Direction (Optional)
147 (W/o Standard Brake)
177 (With Standard Brake)
Detailed View P
Scale 1 : 1
2-M3 Depth 6
(For ground
conn
ection)
Disabled
when CJL is
selected.
Disabled
when CJR
is selected.
Maintain it more
than 100
M20X1.5
CJT
Top
CJL
Left
