59
1. Specifications Check

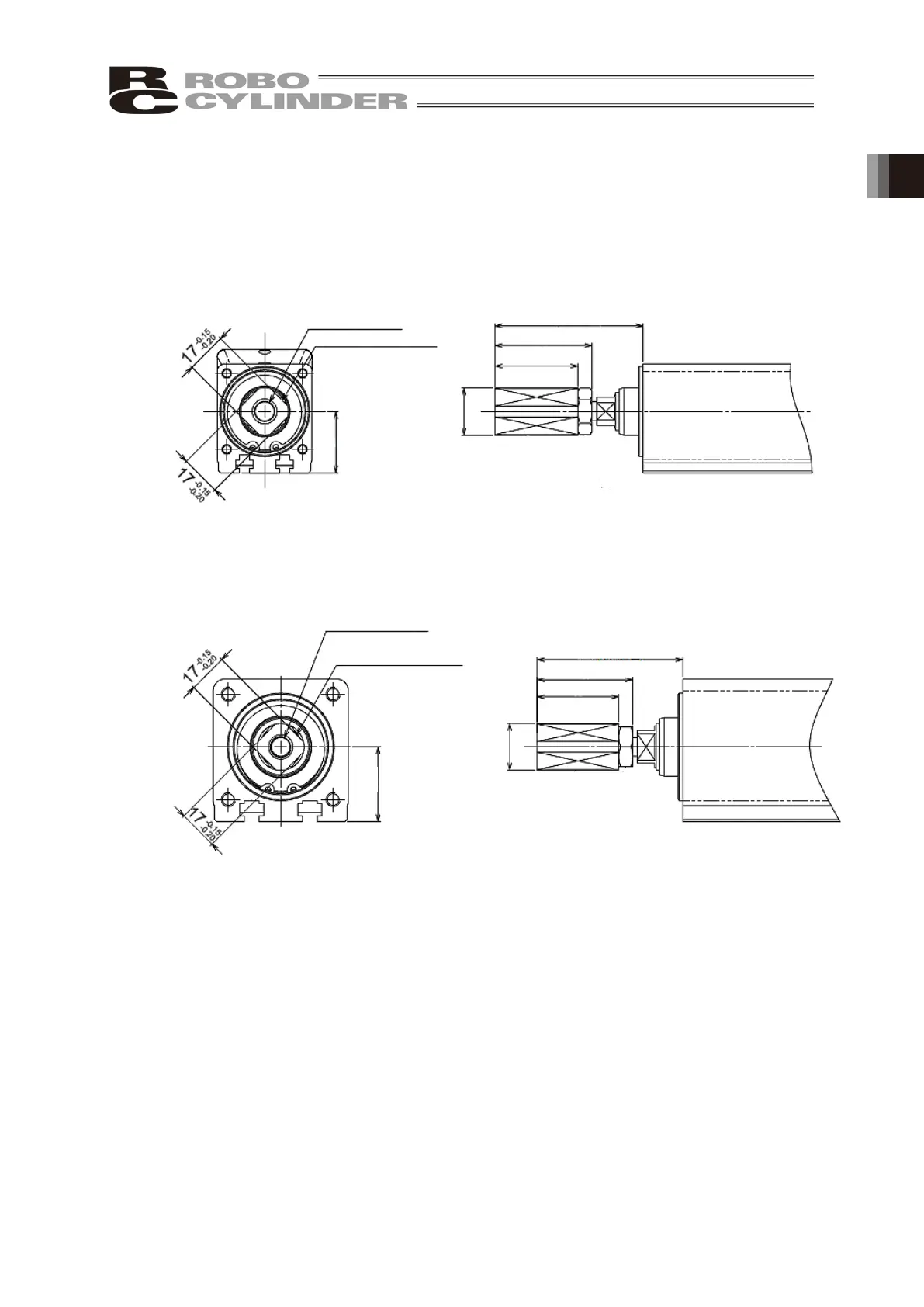

1.3.6 Tip Adapter (Internal Thread) (Model: NFA)
Applicable Units : RA4C, RA4R, RA6C, RA6R, RA7C, RA7R, RA8C, RA8R
This is an adapter to attach on the rod end an object such as a fixture with one screw.
RA4C and RA4R
[Model code of single product : RCP6-NFA-RA4]
RA6C and RA6R
[Model code of single product : RCP6-NFA-RA6]
M10 × 1.5 Depth 15
41
35
The angle of the width
across flat is undefined.
62.5(Home Position)
62.5(Home Position)
41
35
M10 × 1.5 Depth 15
The angle of the width
across flat is undefined.
ø20
32
ø20
26
