2. Installation
2.3 How to Install
This chapter explains how to install the actuator on your mechanical system.
2.3.1 Installation
Follow the information below when installing the actuator, as a rule.
Do pay attention to these items (except with custom-order models).
○ : Possible △ : Daily inspection is required × : Not possible
Model
Ceiling mount
installation
RA6C, RA6R
RA7C, RA7R
○ ○ ○ ○

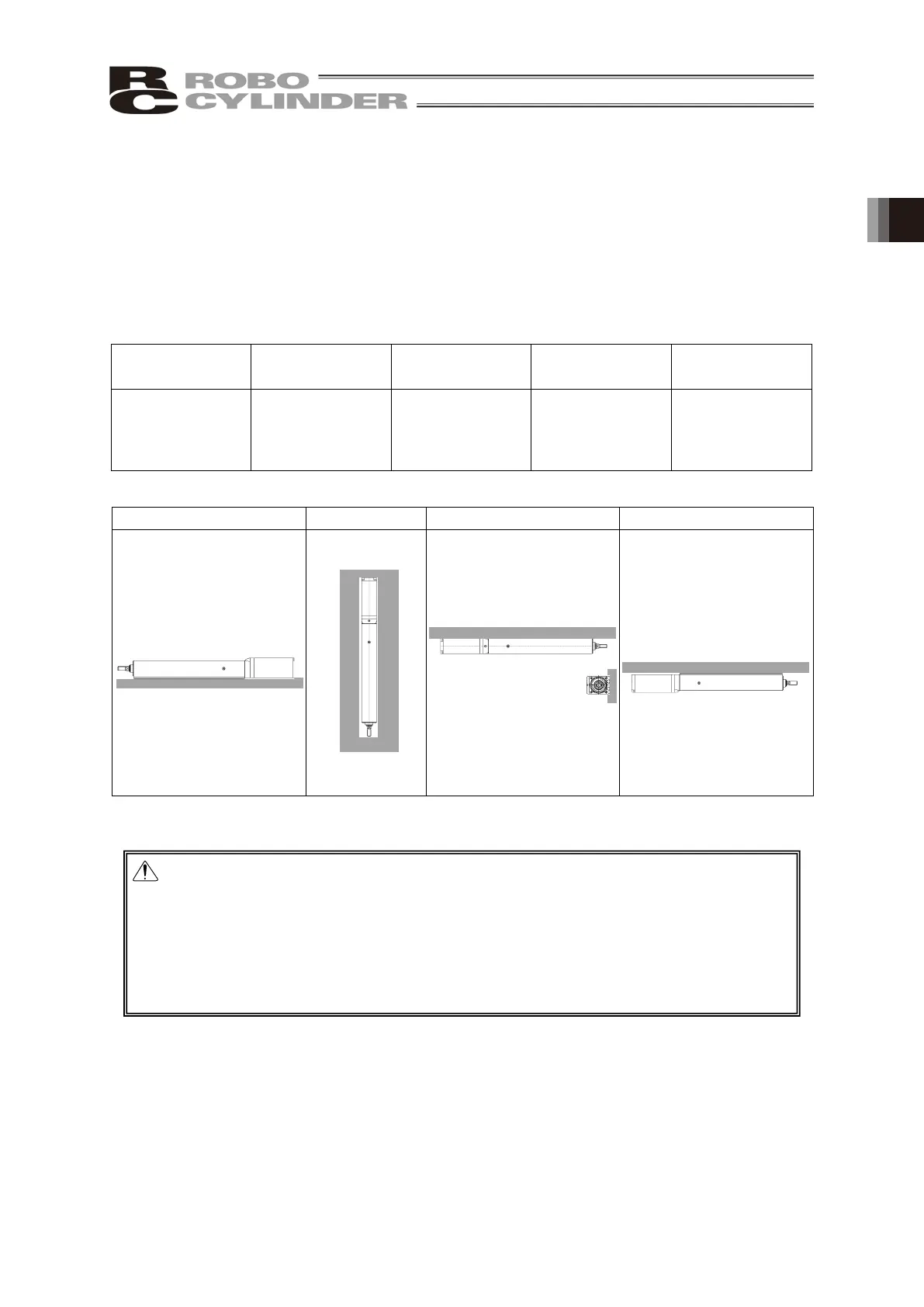

Installation Orientation
Horizontal Vertical Sideways Ceiling mount
Note: · Grease has been applied to the outer periphery of the rod. Protect the peripheral
equipments if they are affected by grease adhesion.
· When the unit is installed vertically oriented, Motor straight type is attempt to put
the motor up unless there is a special reason. · Putting the motor on the lower side
would not cause a problem in an ordinary operation. However, it may rarely cause
a problem, when it is not operated for a long period, depending on the surrounding
environment (especially high temperature), caused by the grease being separated
and the base oil flowing into the motor unit.
To Next Page
