IAI ROBO Cylinder RCP6 User Manual

126
6. External Dimensions

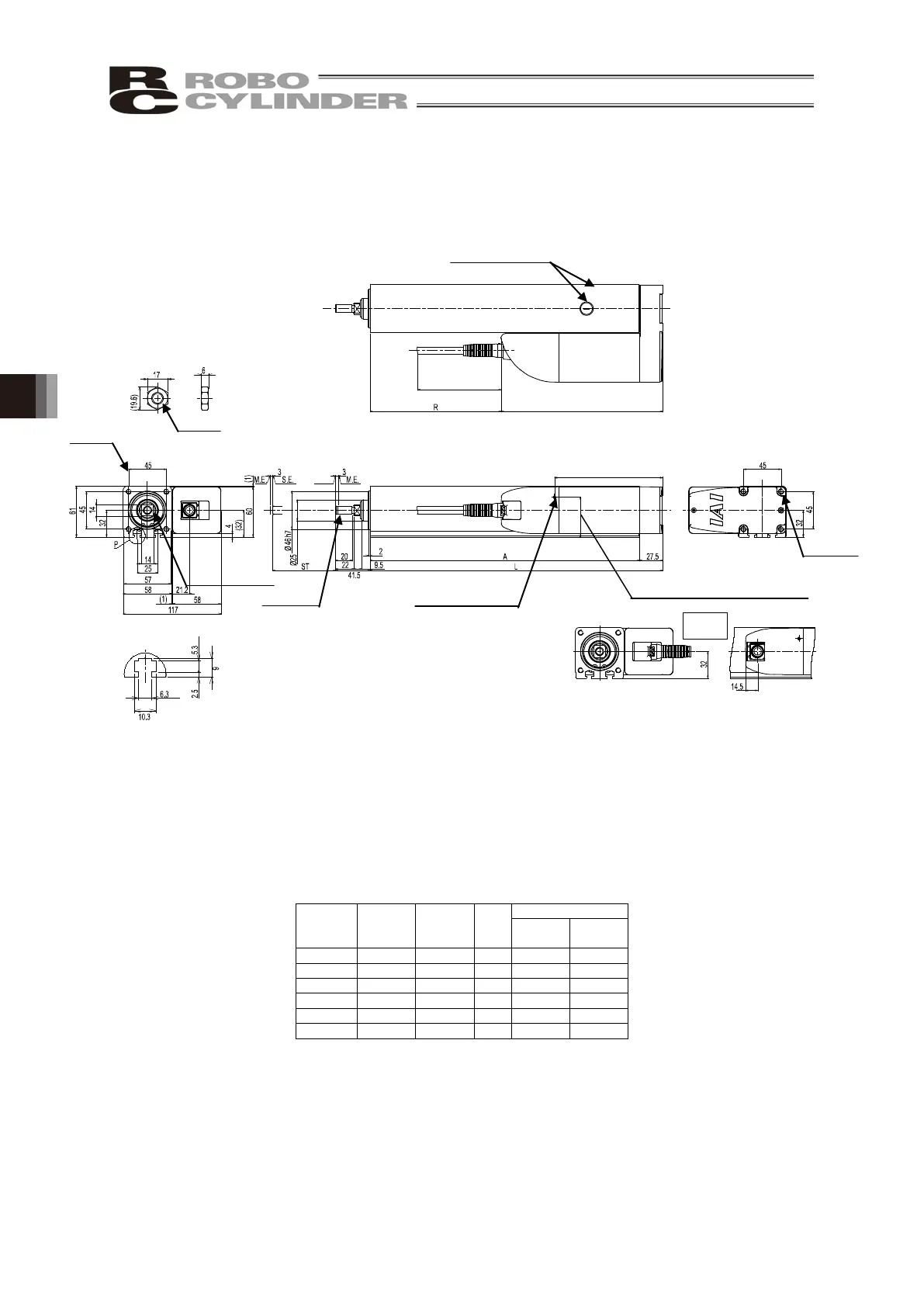

6.14 Standard Specification RCP6-RA6R Left Side-Mounted (Model: ML)
(Note) For Right Side-Mounted (model: MR), side-mounted motor will be on the right side in the
drawing beneath.
ST : Stroke
M.E. : Mechanical End
S.E. : Stroke End
Stroke L A R
Mass [kg]
W/o
Brake
With
Brake
50
200
172.5
6.9
2.8
2.9
100
250
222.5
56.9
3.2
3.3
150
300
272.5
106.9
3.6
3.7
200
350
322.5
156.9
4.0
4.1
250
400
372.5
206.9
4.4
4.5
300
450
422.5
256.9
4.8
4.9
4-M6 Depth 12
4-M6
Depth 12
The angle of the
width across flat is
undefined.
M10X1.25
M10X1.25
Greasing Port (ø5 hole)
(Top and sides)
CJO
Outward
M3 Depth 4
(For ground connection)
Enclosed
hexagonal nut
193.1 (The same applies to the
one with standard brake
Maintain it more
than 100
47.5 (at the time of ML side-mounted direction)
16.5 (at the time of MR
side-mounted direction)
129 (The same applies to the
one with standard brake)
Home
Detailed View P
Scale 2 : 1
