1. Specifications Check
1.2.7 Rod Tip Inclination Amount (reference)
This is a calculated value from the clearances of bearing gaps and whirl-stops.

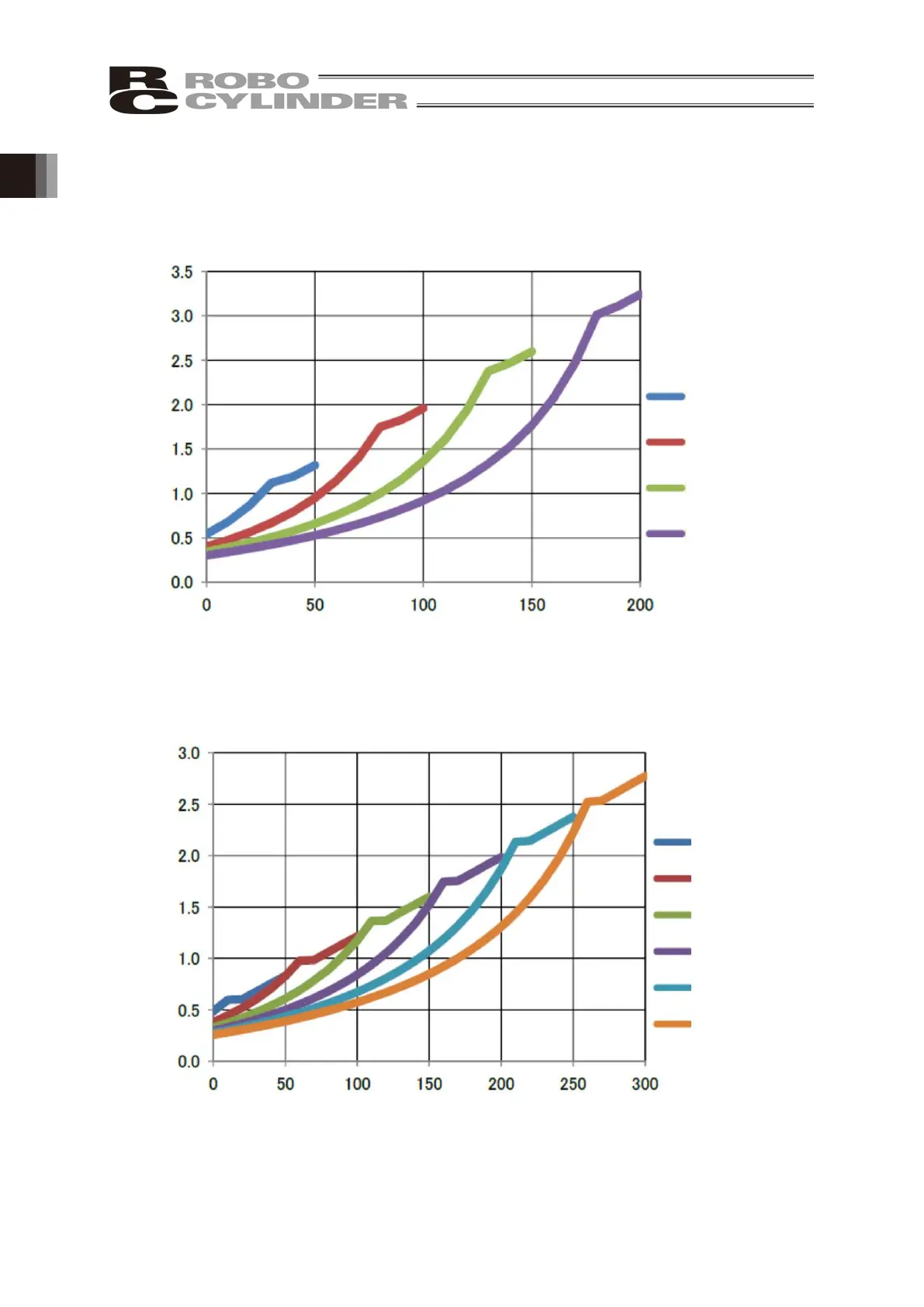

RA4C, RA4R Rod Tip Inclination Amount (Reference)
RA6C, RA6R Rod Tip Inclination Amount (Reference)
Nominal st 50
Nominal st 100
Nominal st 150
Nominal st 200
Stroke (Coordinate Position) [mm]
Stroke (Coordinate Position) [mm]
Nominal st 200
Nominal st 150
Nominal st 100
Nominal st 50
Nominal st 250
Nominal st 300
Inclination Amount (Amplitude) R
eference [mm]
Inclination Amount (Amplitude) Reference [mm]
