2. Installation

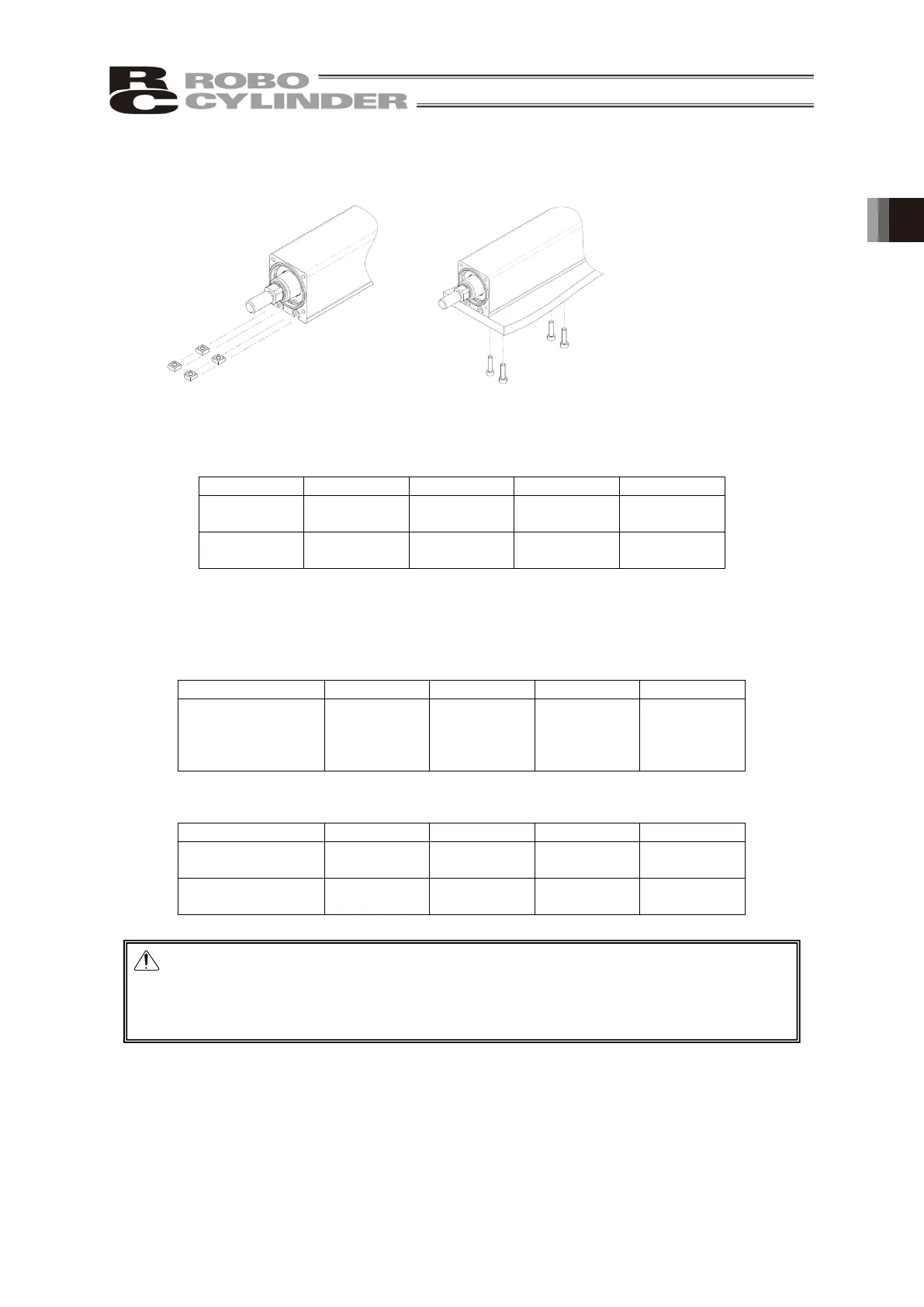

(2) Installation by Square Nuts
Square nuts prescribed in JISB1163 can be used for the T-slots.
Quantities of the square nuts enclosed at the time of shipment are as follows.
(Note) When optional T-slot nut bars (model: NTB) are selected, the square nuts are not enclosed.
Adjust the screw length from the base bottom according to the following table to ensure the fitting
length of the nut and the screw.
Install them according to the minimum fixing number of bolts and the tightening torque in the
following table.
4 4 8 8
M4 M6 M6 M8
[mm]
From the Base
5 to 7 7.5 to 8.5 8 to 10 11 to 13
Minimum Fixing
Number (Bolts)
4 4 6 8
1.76 5.36 5.36 11.48
Caution: Be careful when selecting the bolt length. If bolts of inappropriate lengths are
used, the tapped holes may be damaged, actuator mounting strength may
become insufficient, or contact with driving parts may occur, resulting in lower
precision or unexpected accidents.
