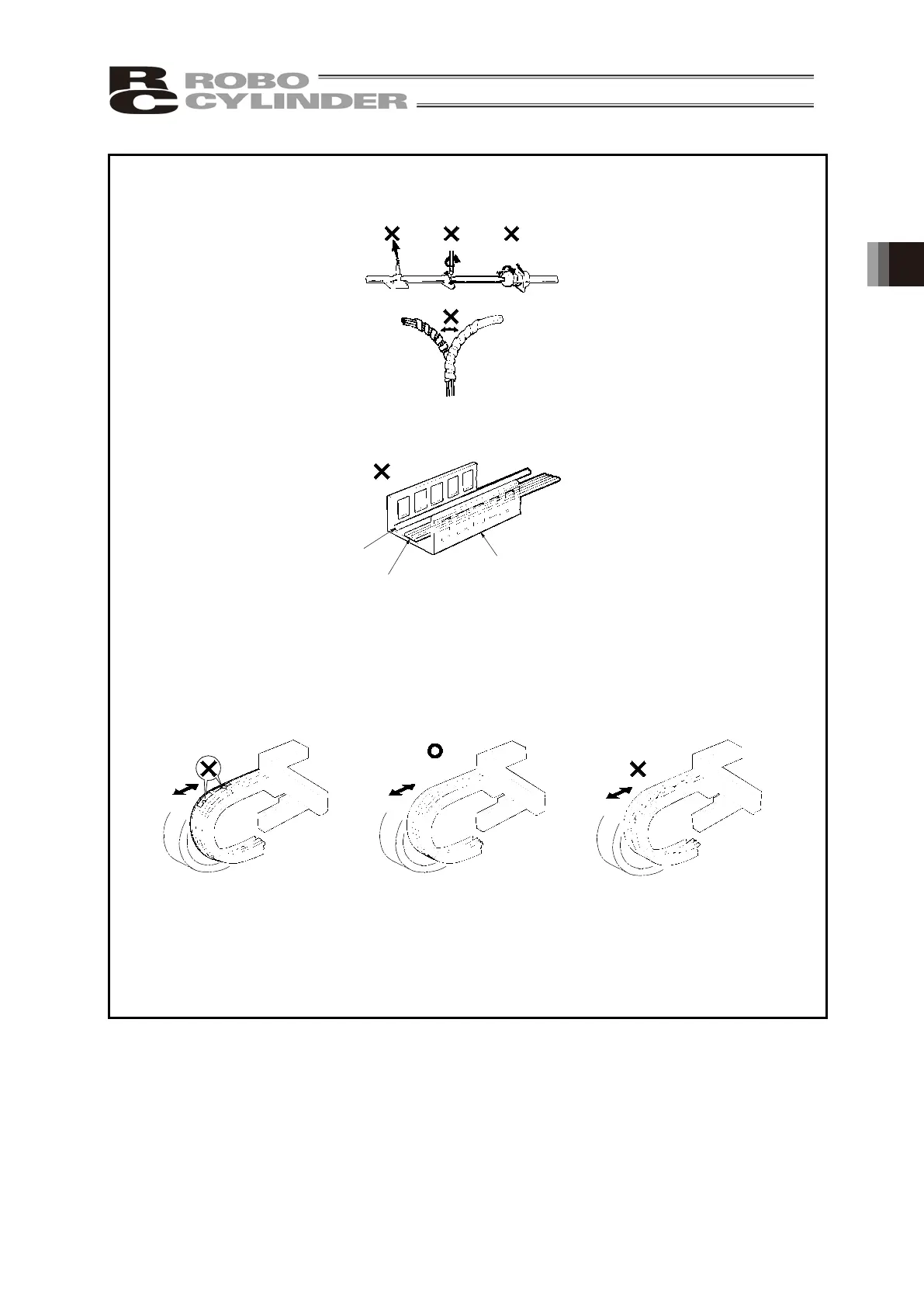

3. Connecting with the Controller
• When a cable is fastened to affix, make sure to have an appropriate force and do not tighten too
much.
• PIO line, communication line, power and driving lines are to be put separately from each other
and do not tie them together. Arrange so that such lines are independently routed in the duct.
Follow the instructions below when using a cable track.
• If there is an indication to the cable for the space factor in a cable track, refer to the wiring
instruction given by the supplier when storing the cable in the cable track.
• Avoid the cables to get twined or twisted in the cable track, and also to have the cables move
freely and do not tie them up. (Avoid tension being applied when the cables are bent.)
Do not pile up cables. It may cause faster abrasion of the sheaths or cable breakage.
Do not use spiral tube in
any position where cables
are bent frequently.
To Next Page
