IAI SCON-CB-F - Page 126

2. Wiring
110

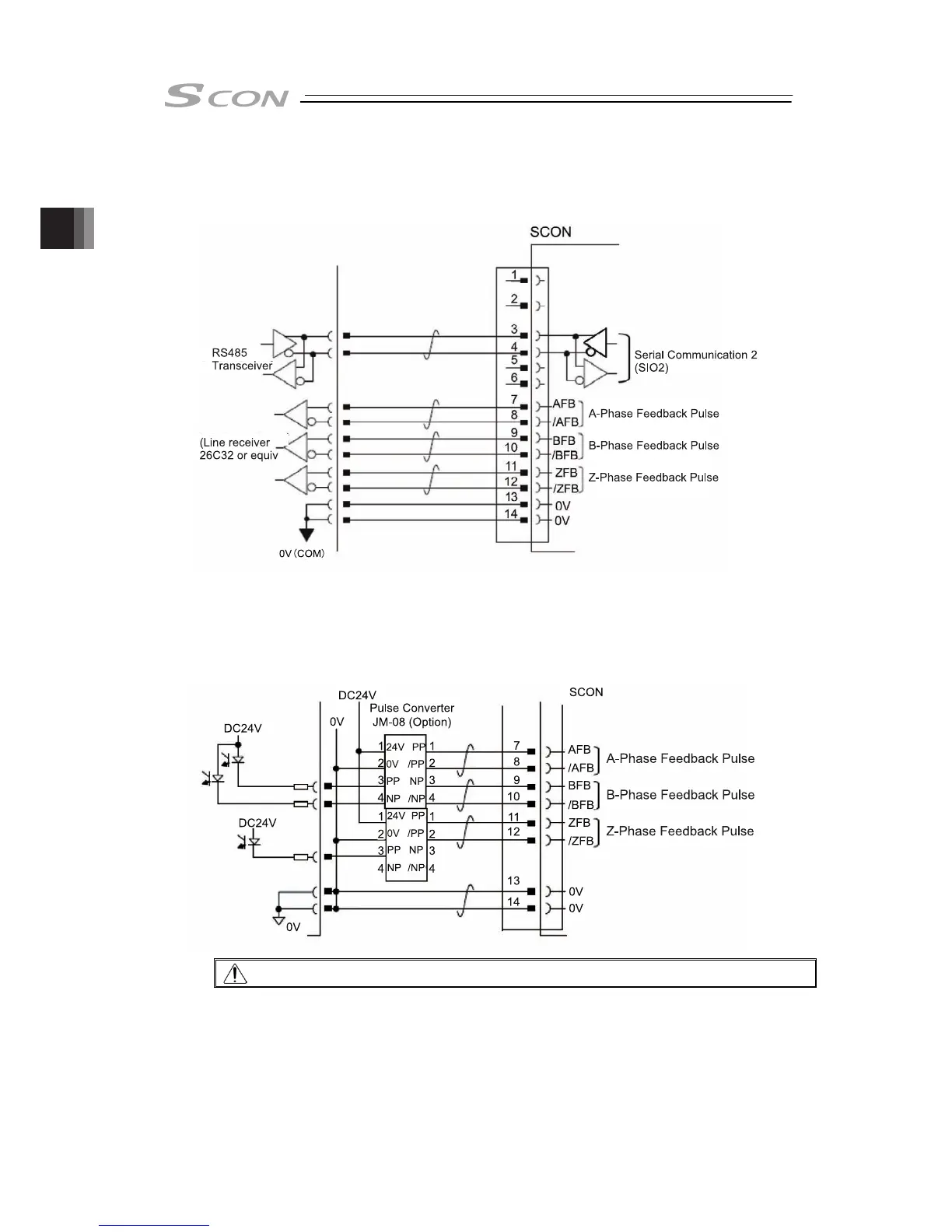

[7] Multi-function Connector
1) When Host Inputting Feedback Pulse with Line Receiver
2) When Host Inputting Feedback Pulse with Open Collector
It is necessary to pulse converter (JM-08 : Option).
Caution: Use the same power source for the positioning unit of the host and JM-08.
2.4.3
