2. Wiring
115
● For Actuators Necessary to Have Brake Box
When connecting RCS2-RA13R, it is necessary to have a brake box (RCB-110-RA13-0)
connected.
[Refer to Section 1.5.4 for details of the brake box.]
Supply 24V DC and 1A max. as the power supply for the brake box.
24V
0V
24VIN 0V
24V 0V

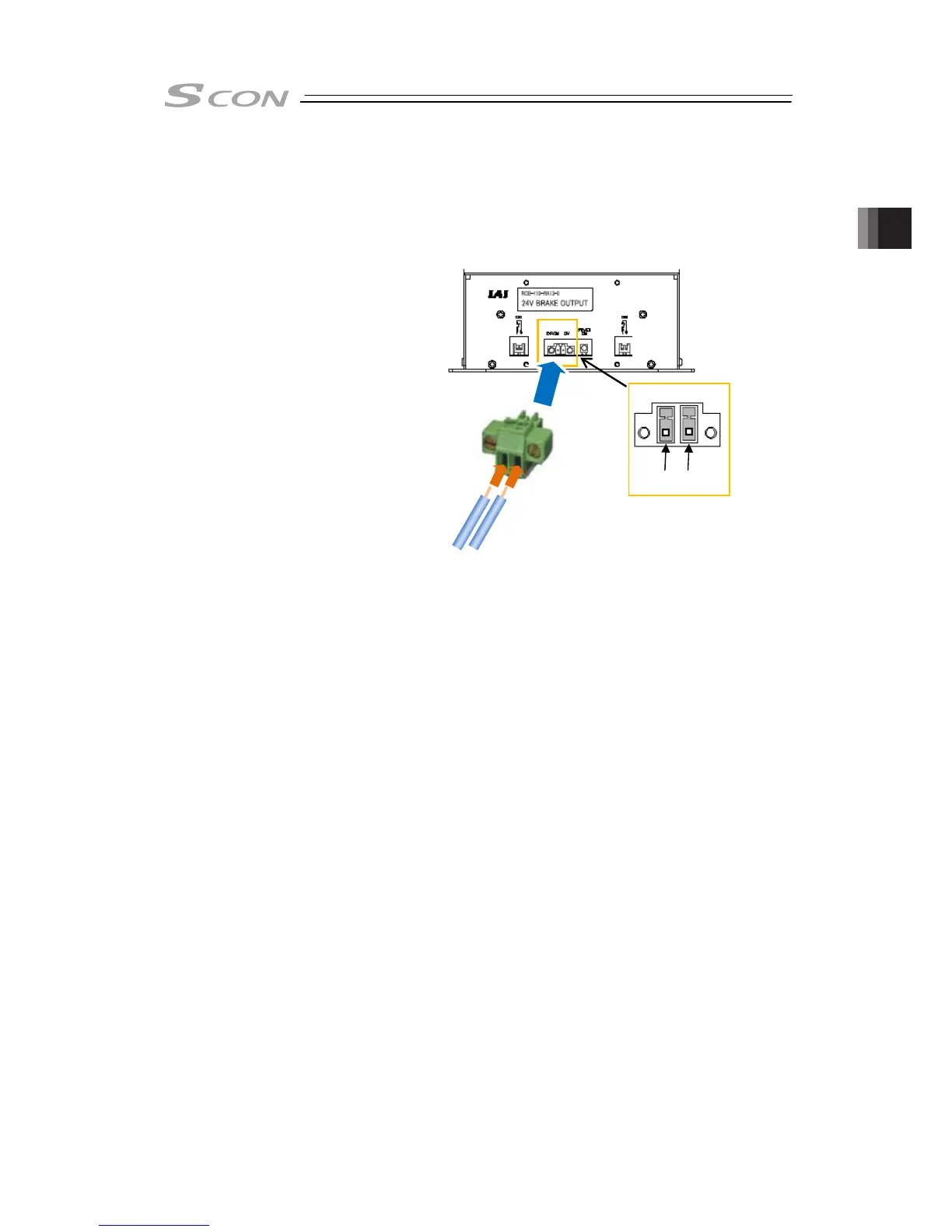

The way to layout wires on the
connector enclosed in the brake
box (MC1.5/2-STF-3.5: Phoenix
Contact) is the same as that
described in [3].
2.5.1
To Next Page
