2. Wiring
143

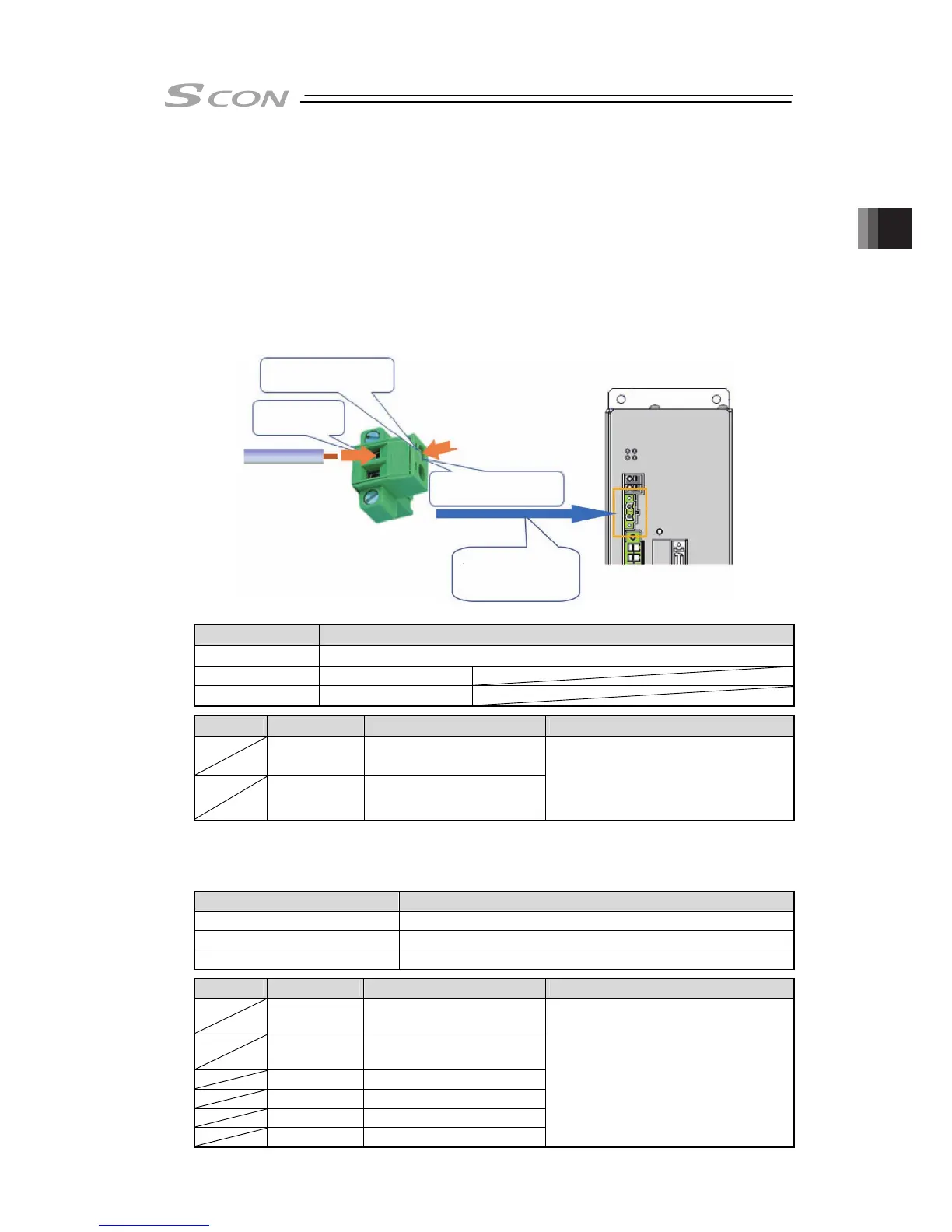

● Wiring Method on Controller Side
Connect the wiring of the enclosed connector (Model code: GIC2,5/2-STF-7,62: Phoenix
Contact).
See below for how to lay out the power supply wires.
1) Loosen the terminal screw with using such as a slotted screwdriver to open up the inlet.
2) Reveal the sheath for 7mm on the cable that satisfies the cable diameter complies the
specification shown in the table below and put it in the inlet.
3) Tighten the terminal screw with using such as a slotted screwdriver. The inlet closes and
affixes the wire.
4) Connect all the wires in the same manner and insert the enclosed connector to the power
connector.
1) Loosen the screw with a
slotted screwdriver
3) Loosen the screw with
a slotted screwdriver
2) Insert wire
4) Plug in the enclosed
connector to the
connector on the
controller side
Specifications of Connector Part Connected to External Regenerative Unit on Controller Side
Item Items and Model
Connector Name External Regenerative Unit Connector (RB)
Cable Side GIC2,5/2-STF-7,62
Controller Side GIC2,5/2-GF-7,62
Pin No. Signal name Items Applicable cable diameter
RB+ Regenerative Resistor +
RB- Regenerative Resistor -
0.75mm
2
(AWG18)
Use copper conductive wires with
rated voltage at 600V or more and
temperature rating at 60degC or
more.
● Wiring on Regenerative Unit Side
Perform wiring with crimping a conforming cable described below to an M4 solderless terminal.
Specifications for External Regenerative Unit Connection Terminal Block
Item Specification
Terminal Screw M4
Applicable Cable Diameter AWG18
Tightening Torque 1.2Nm
Pin No. Signal name Items Applicable cable diameter
TM1
Temperature Sensor
Contact (N.C.)
TM2
Temperature Sensor
Contact (N.C.)
RB+ Regenerative Resistor +
RB+ Regenerative Resistor +
RB- Regenerative Resistor -
RB- Regenerative Resistor -
0.75mm
2
(AWG18)
Use copper conductive wires with
rated voltage at 600V or more and
temperature rating at 60degC or
more.
2.6.6
