Caution: (1) At occurrence of an alarm in the release level
(Note 1)
, RES can reset the
alarm. Cancel the remaining moving distance after confirmation that
alarm signal *ALM (being ON in normal state and OFF at occurrence of
an alarm) is set to ON.
Note 1: [Refer to 9.4 Alarm List for details of alarms.]
(2) Turning *STP OFF with the actuator being in the positioning complete
state causes PEND to be turned OFF. Note that this situation may not
occur when a sequence program is created.

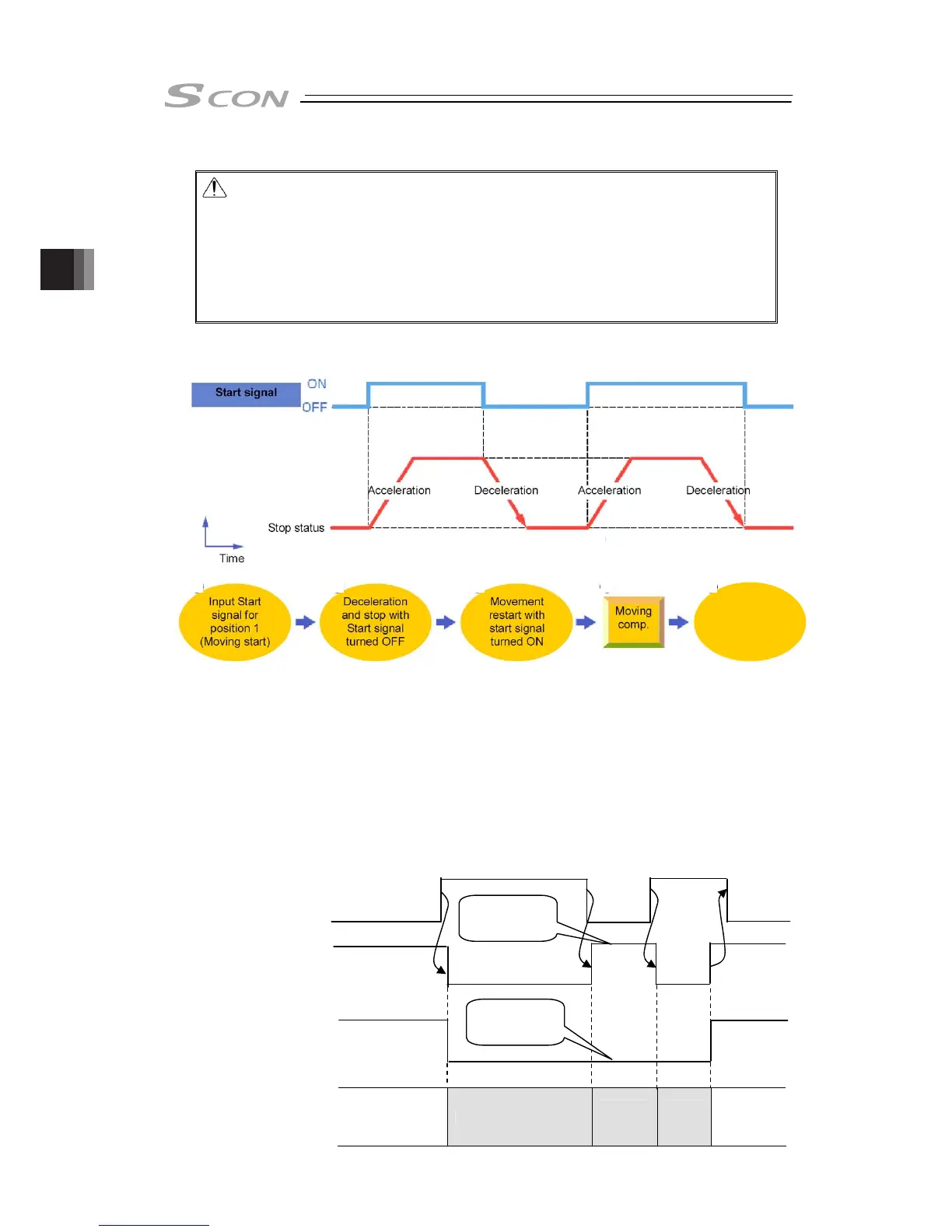

(2) Use of start signal ST*
îš„ Control method
If start signal ST* is turned OFF during movement, the actuator can be paused.
Use the control method for interlock in case where an object is invaded into the moving
direction of the actuator being moved.
1) If the ST* signal is turned OFF during movement, the actuator is paused. The deceleration
is the value set in the position table.
2) Turning the ST* signal OFF causes the positioning to be interrupted and deemed complete
signal PEND to be turned ON.
3) If the ST* signal is turned ON again, the remaining movement is continued. The
acceleration is the value set in the position table.
Befor operation
Positioning
complete state
Operation
Temp.
stop
Cont.
Op.
Position
complete
Start signal
ST*
(PLC→Controller)
Positioning Completion Signal
PEND
(Controller→PLC)
Operation of actuator
PEND
turned ON
PE* not
turned ON
Current Position No.
PE*
(Controller→PLC)
Velocity
Positioning
Completion
Signal Output
1) 2) 3) 4) 5)
1) 3) 4) 5)
2)
