3. Operation
233
[7] Zone (ZONE1, ZONE2)
Output PIO signal
ZONE1 ZONE2
Each of the signals turns ON when the current actuator position is inside the range specified by
the relevant parameter.
Two zones, ZONE1 and ZONE2, can be set.
When the current position of the actuator is in ZONE1, it is turned ON if it is in the range of
Parameter No.1 “Zone 1 Positive Side” and Parameter No.2 “Zone 1 Negative Side”, while is
OFF when out of the range. These signals are always enabled in the home return complete
state and not affected by the servo status or alarm status. (The ZONE2 signal turns ON/OFF
according to Parameter No.23 “Zone 2+” and Parameter No.24 “Zone 2-”.
z Setting values and signal output range
The zone output range varies depending on the difference between the value set for the plus
side of the zone and that for the minus side.
1) Value set for plus side > value set for minus side: Output signal turn ON in the range from
the value on negative side to that on positive side, and turns OFF out of the range
2) Value set for plus side < value set for minus side: Output signal turn OFF in the range from
the value on positive side to that on negative side, and turns ON out of the range

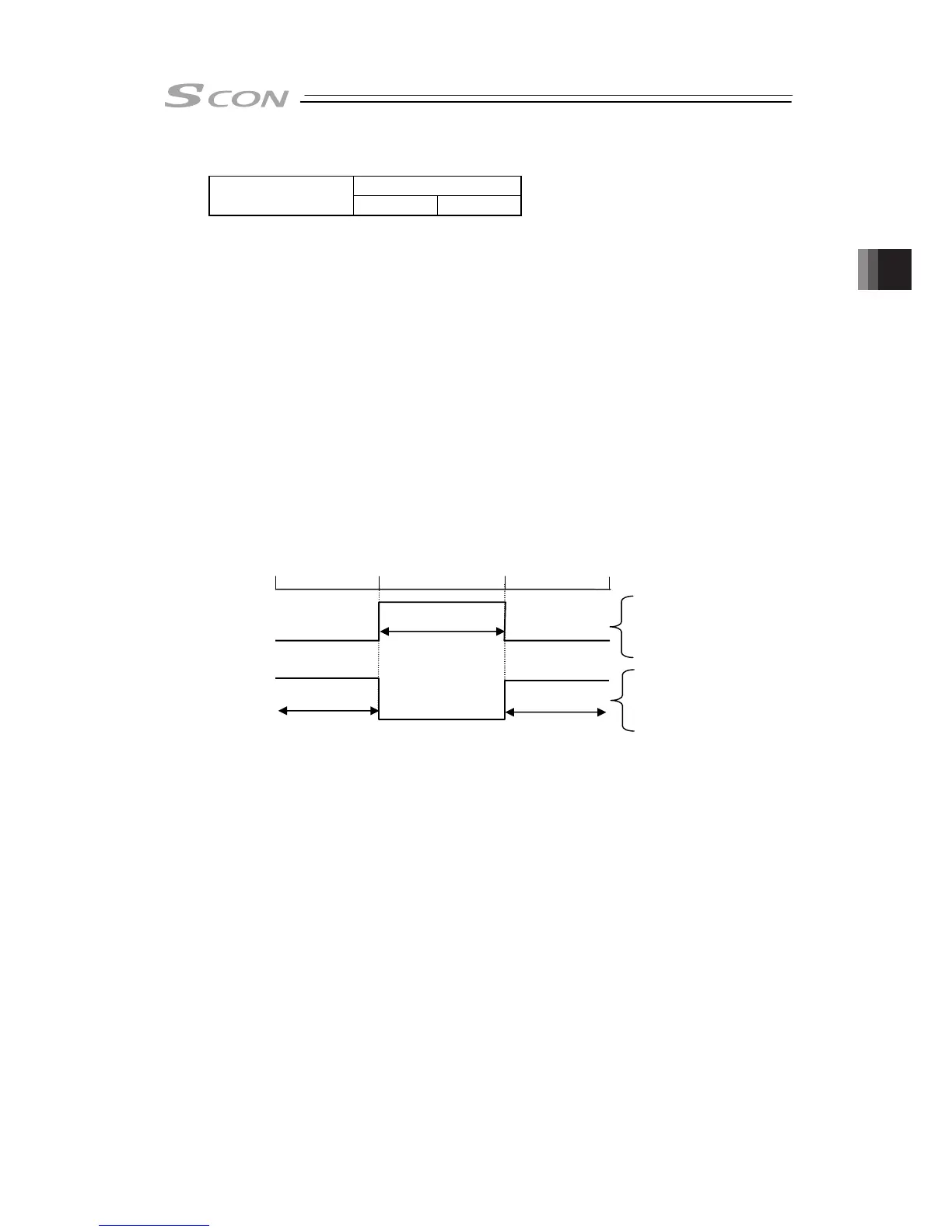

[For Straight Slide Actuators]
[Operation of rotary actuator of multi-rotation specification in index mode]
It does not corresponds to pulse train mode.
Current
Position
Zone Signal Output
Zone Signal Output
0mm
30mm
70mm
100mm
ON
ON
ON
Set Value
Zone setting + : 70mm
Zone setting - : 30mm
Set Value
Zone setting + : 30mm
Zone setting - : 70mm
3.3.2
