IAI SCON-CB-F User Manual

10. Appendix
364
2) Connection Cable

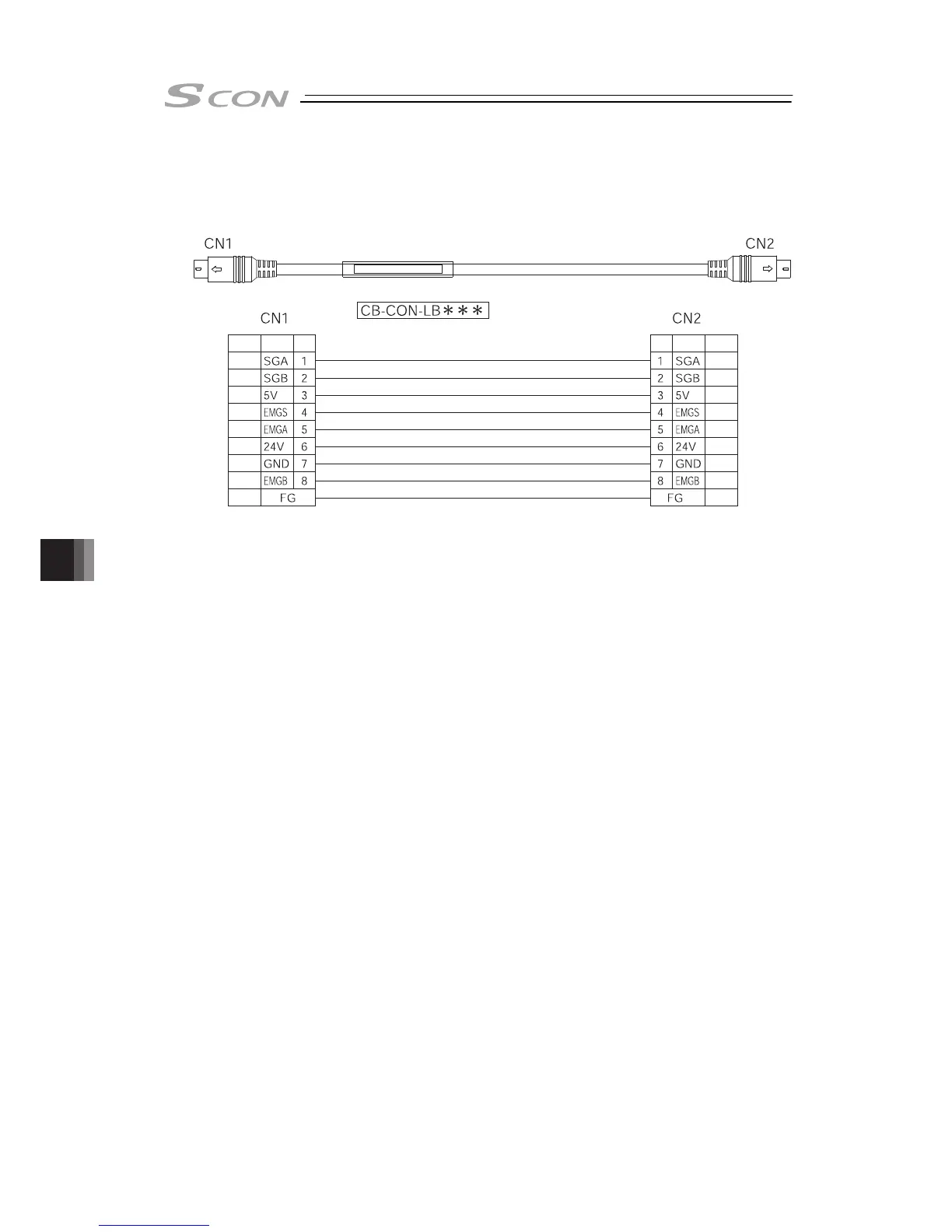

● Controller/TP Adaptor Connection Cable
Use this cable to connect the controller and TP adapter (RCB-LB-TGS).
Model : CB-CON-LB005 (standard cable length : 0.5m)
Maximum cable length : 2.0m
Color Signal No. Color Signal No.
BR
YW
RD
OR
BL
GN
PL
GY
Shield
BR
YW
RD
OR
BL
GN
PL
GY
Shield
8PIN MIN DIN Connector (mold casting)
Contact
Metal shell
Housing A
Housing B
Cover
: MD-SP2240 (J.S.T. Mfg.) ×8
: MD-PS8T (J.S.T. Mfg.)
: MD-PI8A (J.S.T. Mfg.)
: MD-PI8B (J.S.T. Mfg.)
: MD-PCC8T-S2 (J.S.T. Mfg.)
8PIN MIN DIN Connector (mold casting)
Contact
Metal shell
Housing A
Housing B
Cover
: MD-SP2240 (J.S.T. Mfg.) ×8
: MD-PS8T (J.S.T. Mfg.)
: MD-PI8A (J.S.T. Mfg.)
: MD-PI8B (J.S.T. Mfg.)
: MD-PCC8T-S2 (J.S.T. Mfg.)
