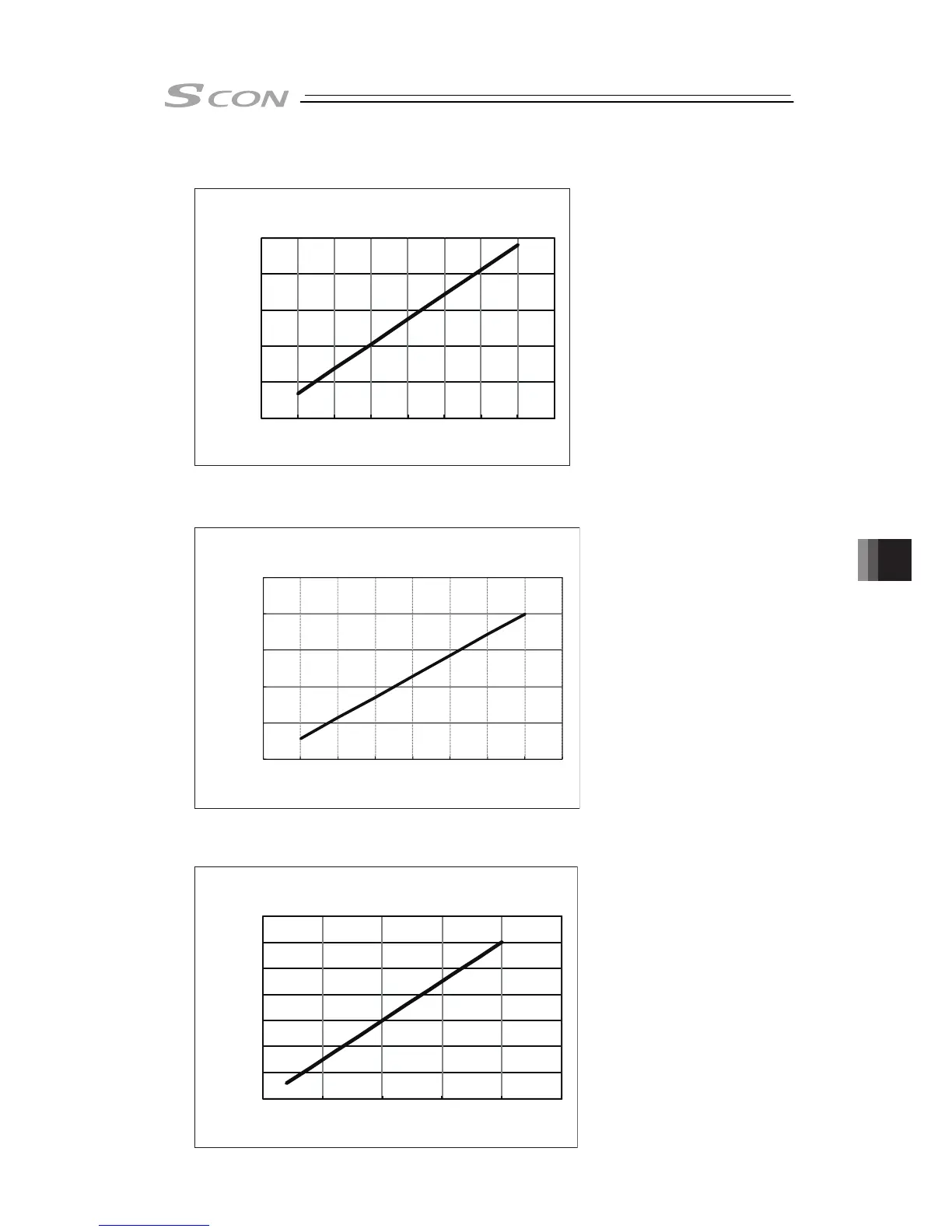

■ Figure of mutual relation between pressing force and current limit value of RCS3-RA7R
Pressing Force [N]
Current-Limiting Value (%)
0
250
500
750
1000
1250
0 20 40 60 80 100 120 140 160
■ Figure of mutual relation between pressing force and current limit value of RCS3-RA8R
Pressing Force [N]
Current-Limiting Value (%)
0
500
1000
1500
2000
2500
0 20 40 60 80 100 120 140 160
■ Figure of mutual relation between pressing force and current limit value of RCS3-RA10R
0
1000
2000
3000
4000
5000
6000
7000
0 50 100 150 200 250
Pressing Force [N]
Current-Limiting Value (%)
