2. Wiring
54

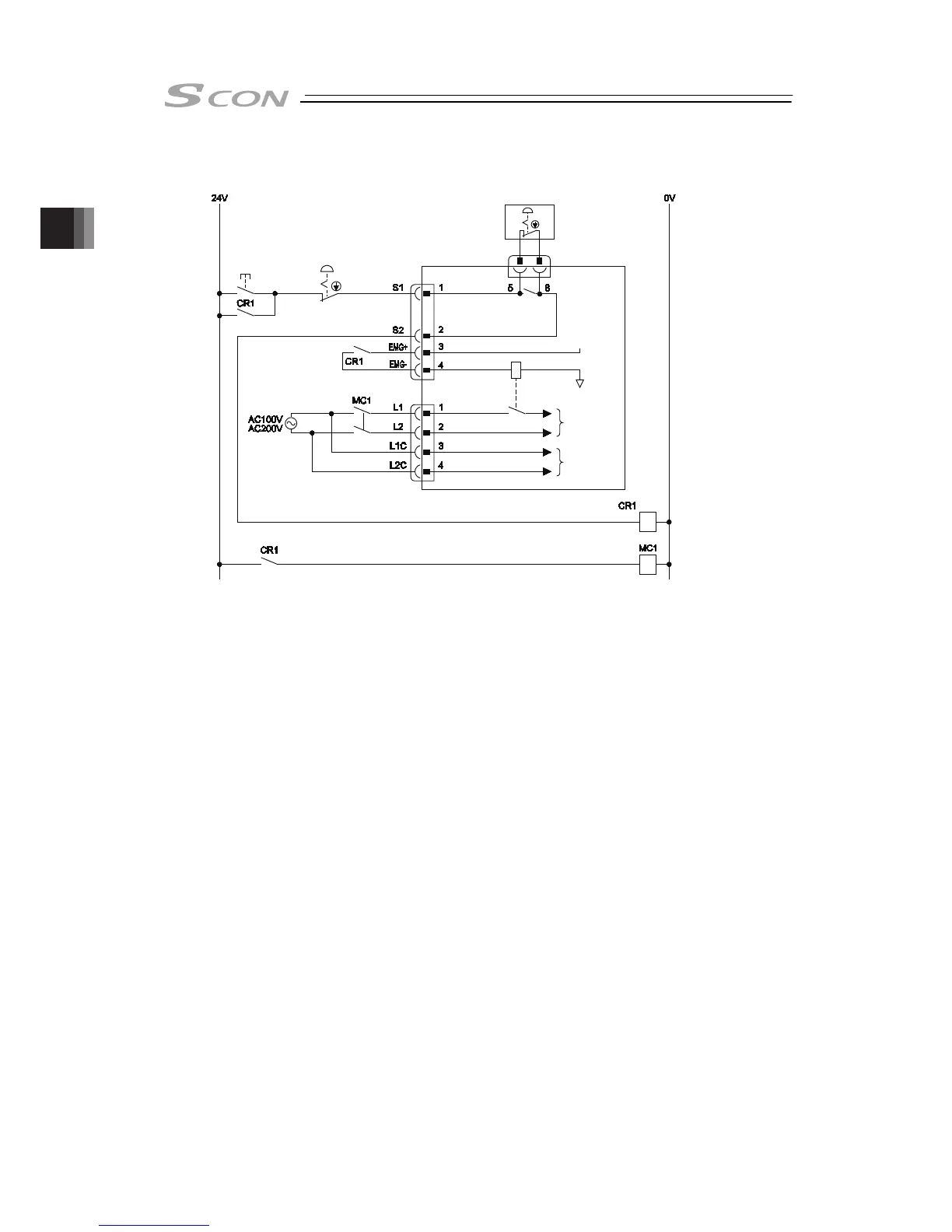

3) Stop supplying external motor power at emergency stop input
Note 1 The power rating of the motor power-off relay turning ON/OFF with contact CR1 is 24V
DC and 10mA or less.
Note 2 Connect such as a connector to L1/L2 terminals when cutting off the motor power source
externally.
Note 3 CGB/LCG type are not equipped with a relay to enable to automatically identify a
teaching tool was inserted and switch the wiring layout. (The system I/O connector does
not get short-circuited between S1 and S2 terminals even if a teaching tool is removed.)
The controller on CB/LC type automatically identifies that a teaching tool was inserted.
(Short-circuit is made between S1 and S2 terminals inside the controller once
connection is detected.)
Note 4 Since there is no motor power cutoff relay in CGB/LCG type, make sure to establish a
cutoff relay externally.
Motor Power
Cutoff Relay
Motor power
supply
Control power
supply
(Note 3)
(Note 1)
(Note 1)
(Note 2)
(Note 4)
System I/O connector SIO connector
EMG A EMG B
Emergency
stop reset
switch
Emergency
stop switch
Emergency stop switch
for the teaching pendant
Emergency
stop circuit
exclusive use
24V
AC power supply
input connector
2.1.3
To Next Page
