Attention: When you handle static-sensitive devices, take precautions to
avoid damage from static electricity. For details about handling these
devices, see “Handling static-sensitive devices” on page 37.
c. Remove the plastic clamshell packaging that contains the new
microprocessor.

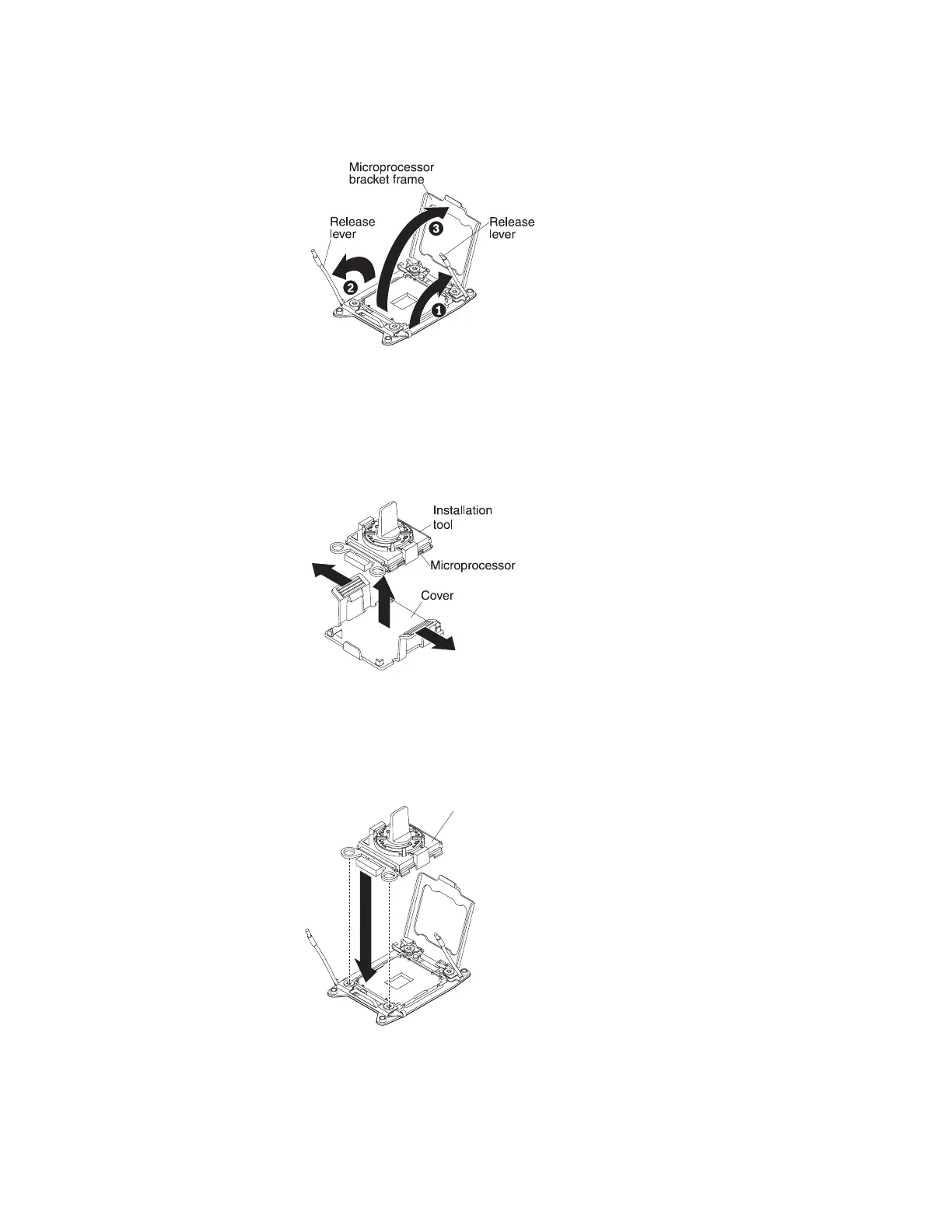

d. Carefully remove the microprocessor and installation tool from the
package.
e. Release the sides of the microprocessor protective cover on the bottom of
the microprocessor and carefully remove the cover from the installation
tool. The microprocessor is preinstalled on the installation tool.
Attention: Do not touch the microprocessor socket contacts.
Contaminants on the microprocessor contacts, such as oil from your skin,
can cause connection failures between the contacts and the socket.
f. Carefully align the microprocessor installation tool over the microprocessor
socket. The microprocessor is keyed to ensure that the microprocessor is
installed correctly.
Installation
tool
g. Twist the handle on the microprocessor tool counterclockwise to insert the
microprocessor into the socket. The microprocessor rests flush on the
socket only if it is properly installed.
Note:
98 System x3750 M4 Types 8722 and 8733: Installation and Service Guide
