Backplane configurations for 16 drives
This section describes the supported backplane configurations for 16 drives.
About this task

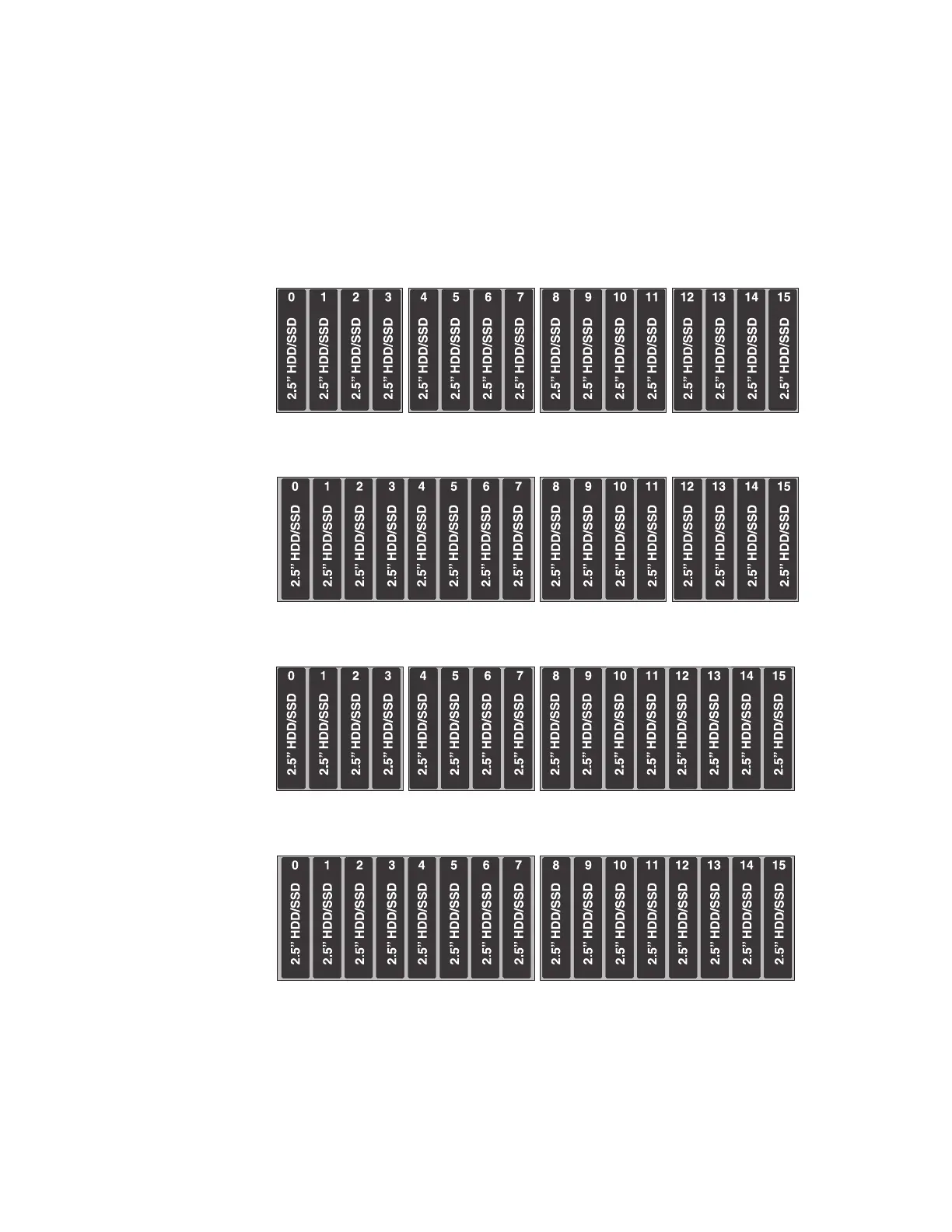

The following illustrations show the supported backplane configurations to
support 16 drives.
This configuration consists of four 4x2.5-inch drive backplanes and requires
four SAS signal cables.
This configuration consists of one 8x2.5-inch drive backplane and two
4x2.5-inch drive backplanes and requires four SAS signal cables.
This configuration consists of two 4x2.5-inch drive backplanes and one
8x2.5-inch drive backplane and requires four SAS signal cables.
This configuration consists of two 8x2.5-inch drive backplanes and requires four
SAS signal cables.
This configuration consists of one 8x2.5-inch drive backplane and one
8x2.5-inch drive backplane with controller expander and requires two SAS
signal cables.
60 System x3750 M4 Types 8722 and 8733: Installation and Service Guide
