IBM System x3750 M4

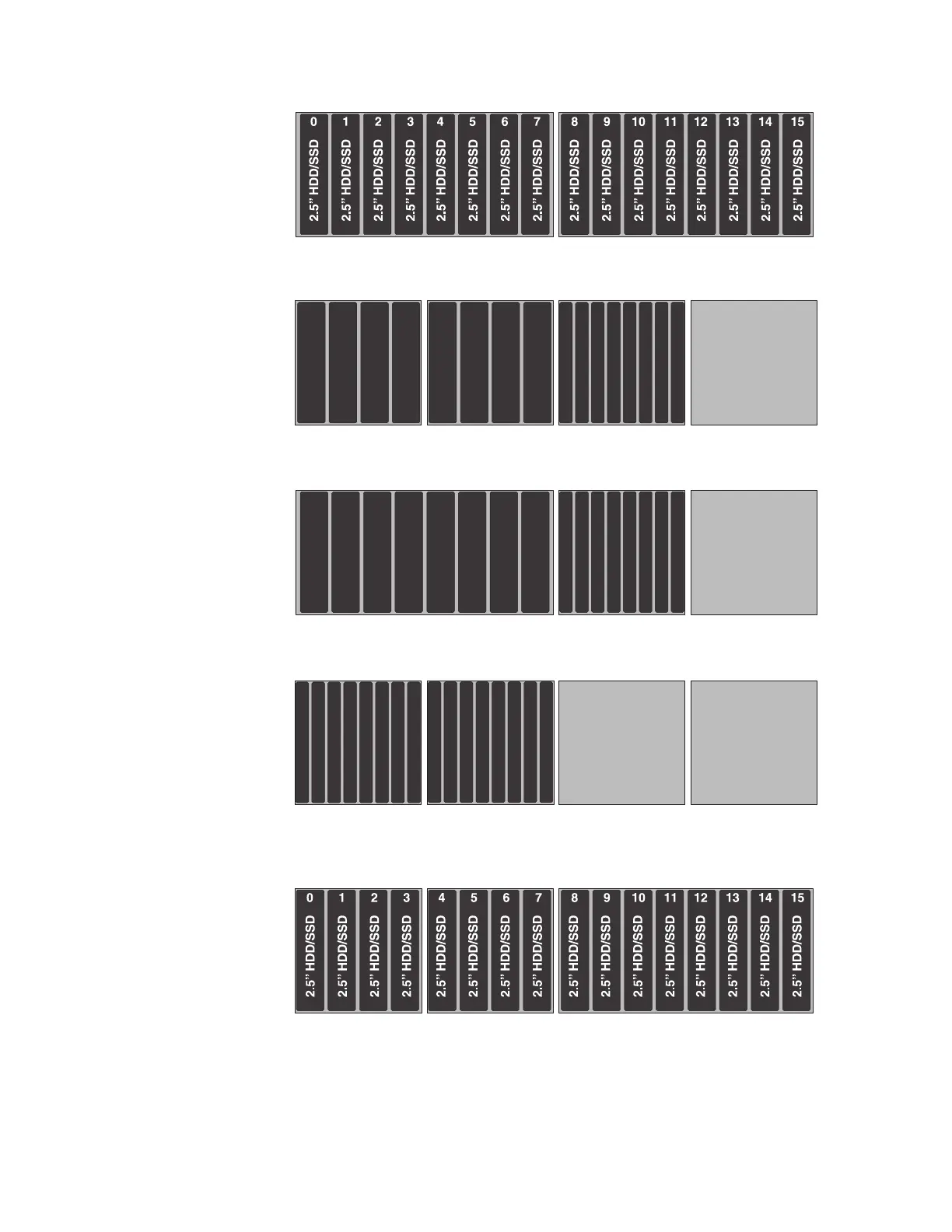

This configuration consists of two 4x2.5-inch drive backplanes and one
8x1.8-inch drive backplane and requires four SAS signal cables.
16 1918
0123
Empty
4567
17 20 21
2.5” HDD/SSD
2.5” HDD/SSD
2.5” HDD/SSD
2.5” HDD/SSD
2.5” HDD/SSD
2.5” HDD/SSD
2.5” HDD/SSD
2.5” HDD/SSD
1.8” SSD
1.8” SSD
1.8” SSD
1.8” SSD
1.8” SSD
1.8” SSD
1.8” SSD
1.8” SSD
22 23
This configuration consists of one 8x2.5-inch drive backplane and one
8x1.8-inch drive backplane and requires four SAS signal cables.
Empty
01234567
2.5” HDD/SSD
2.5” HDD/SSD
2.5” HDD/SSD
2.5” HDD/SSD
2.5” HDD/SSD
2.5” HDD/SSD
2.5” HDD/SSD
2.5” HDD/SSD
16 191817 20 21
1.8” SSD
1.8” SSD
1.8” SSD
1.8” SSD
1.8” SSD
1.8” SSD
1.8” SSD
1.8” SSD
22 23
This configuration consists of two 8x1.8-inch drive backplanes and requires four
SAS signal cables.
01234567
Empty
8 9 10 131211 14 15
1.8” SSD
1.8” SSD
1.8” SSD
1.8” SSD
1.8” SSD
1.8” SSD
1.8” SSD
1.8” SSD
1.8” SSD
1.8” SSD
1.8” SSD
1.8” SSD
1.8” SSD
1.8” SSD
1.8” SSD
1.8” SSD
Empty
This configuration consists of two 4x2.5-inch drive backplanes and one
8x2.5-inch drive backplane with controller expander and requires two SAS
signal cables.
Chapter 2. Installing optional devices 61
